Our Machine Lineup
23 JYYJ models covering pneumatic and hydraulic drive systems, from entry to professional-grade
Pneumatic PU Spray Machines
JYYJ pneumatic series — 3 hero models (3H entry, A-V3 coating-focused, Q300 mid-range) plus configurations. Pressure 25-30 MPa for residential insulation, light coatings, and small to medium PU foam projects.

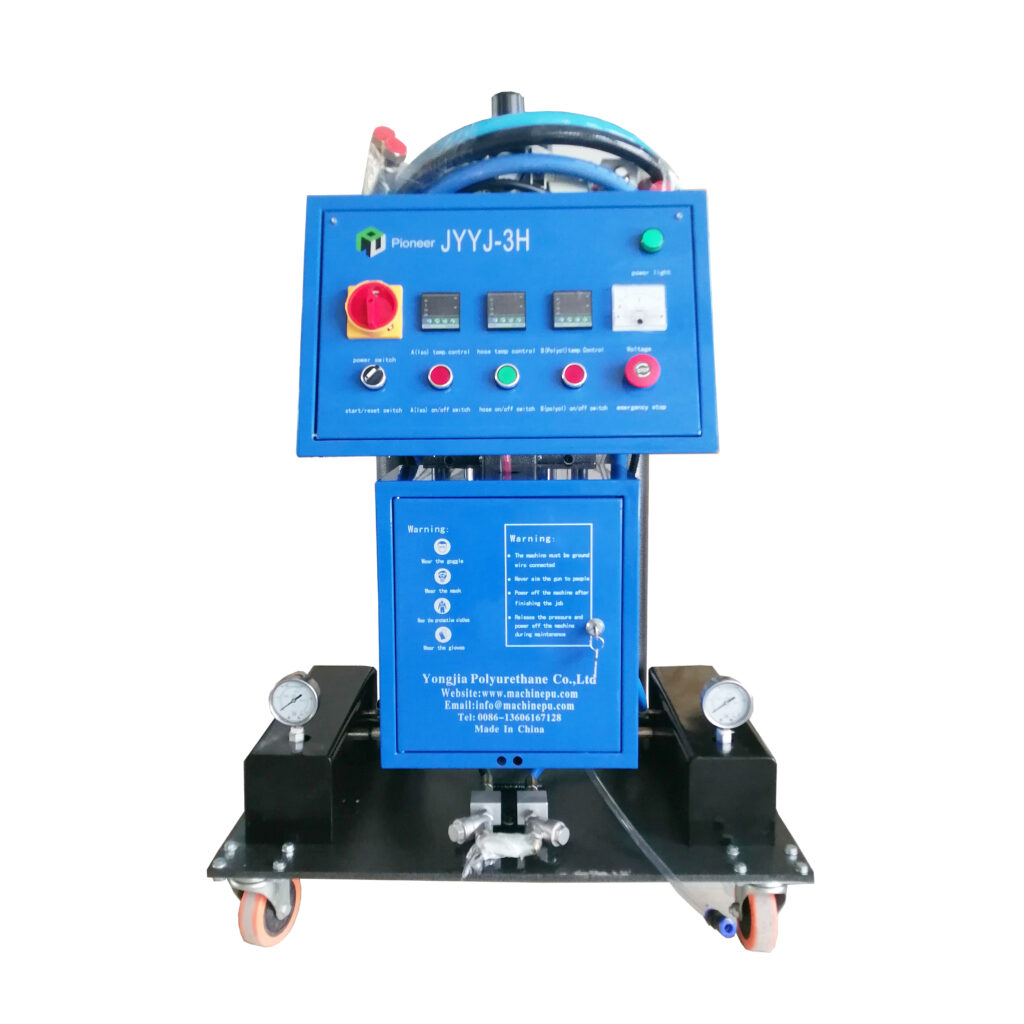

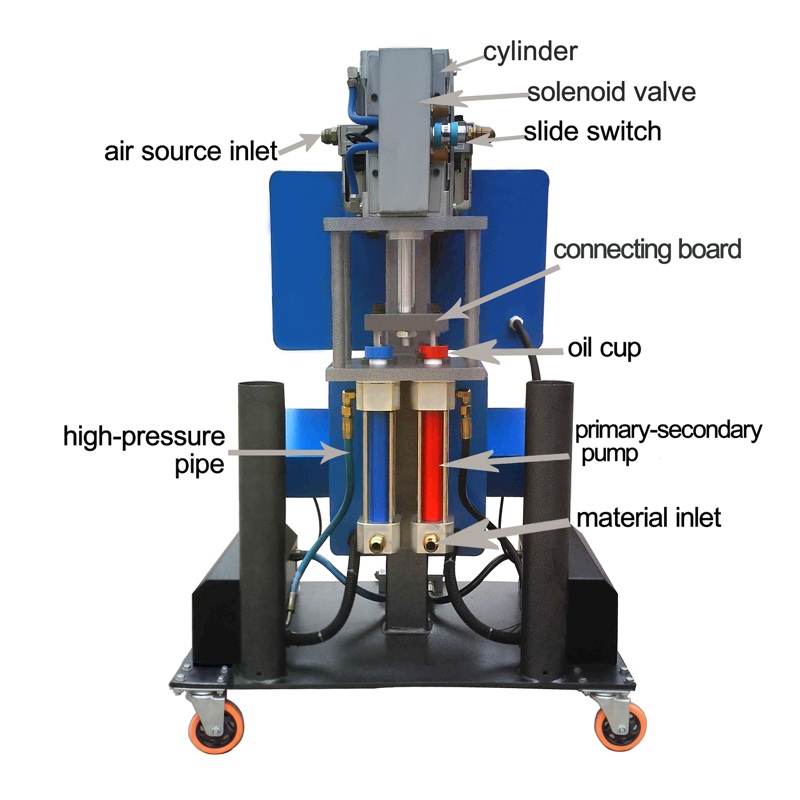

JYYJ-3H
JYYJ-3H Pneumatic PU Spray Machine
Entry-level pneumatic spray machine delivering stable 2-10 kg/min output at 25 MPa. Ideal for small to medium insulation, roofing, and residential projects. Single-phase 380V power, 7 kW heating, and self-cleaning spray gun included. The most affordable starter unit in the JYYJ pneumatic line.

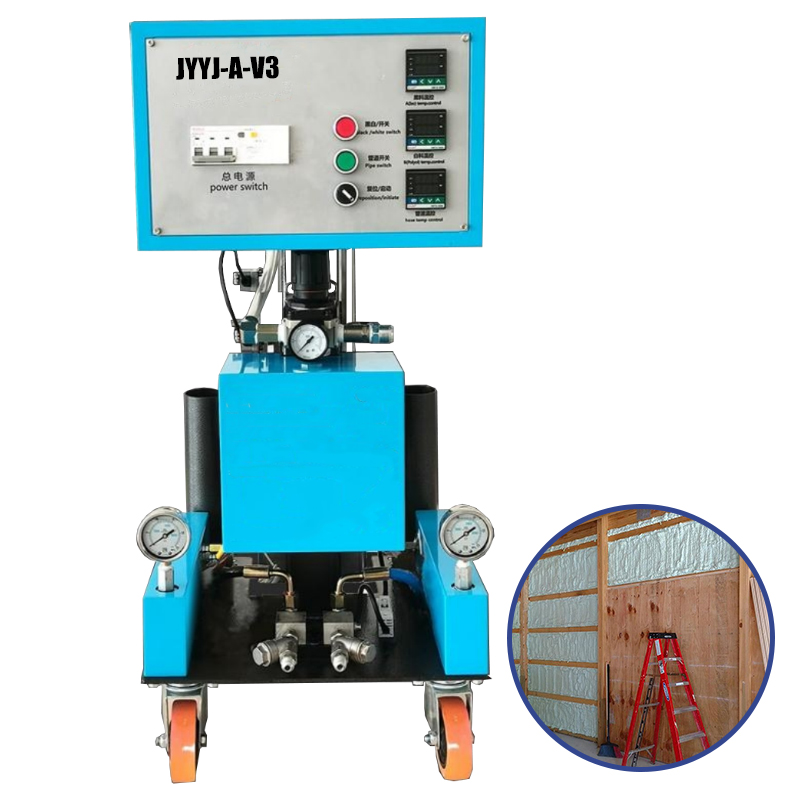

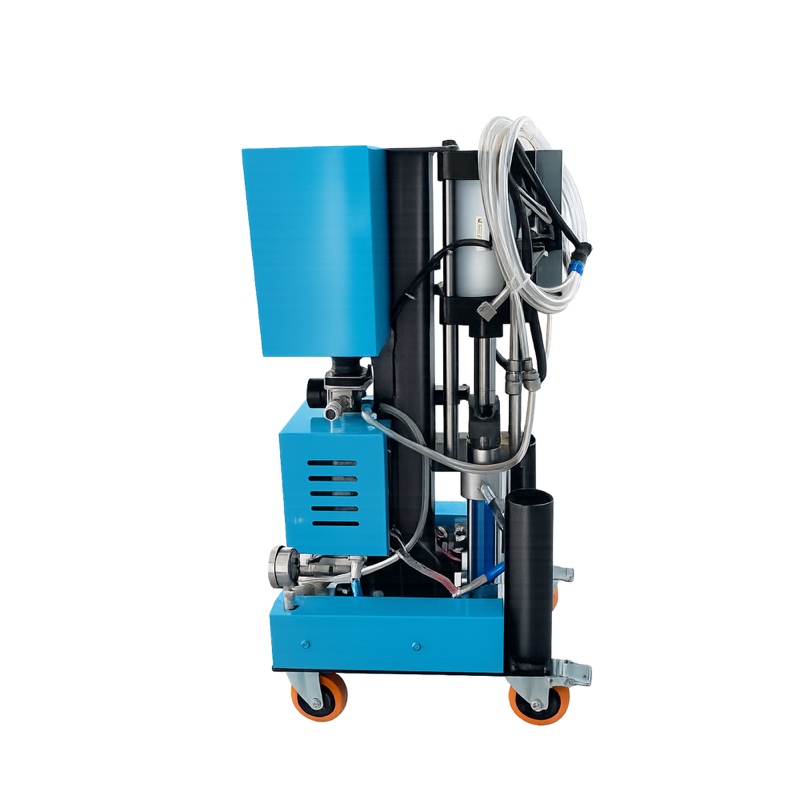

JYYJ-A-V3
JYYJ-A-V3 Pneumatic PU Coating Spray Machine
Specialized pneumatic sprayer for polyurethane coating applications. 25 MPa, 2-10 kg/min output with high-efficiency coating technology and high wear-resistant nozzle. Compact 100 kg chassis with 75 m heated pipe support. Designed for precision coating on construction, automotive, furniture, and refrigeration surfaces.

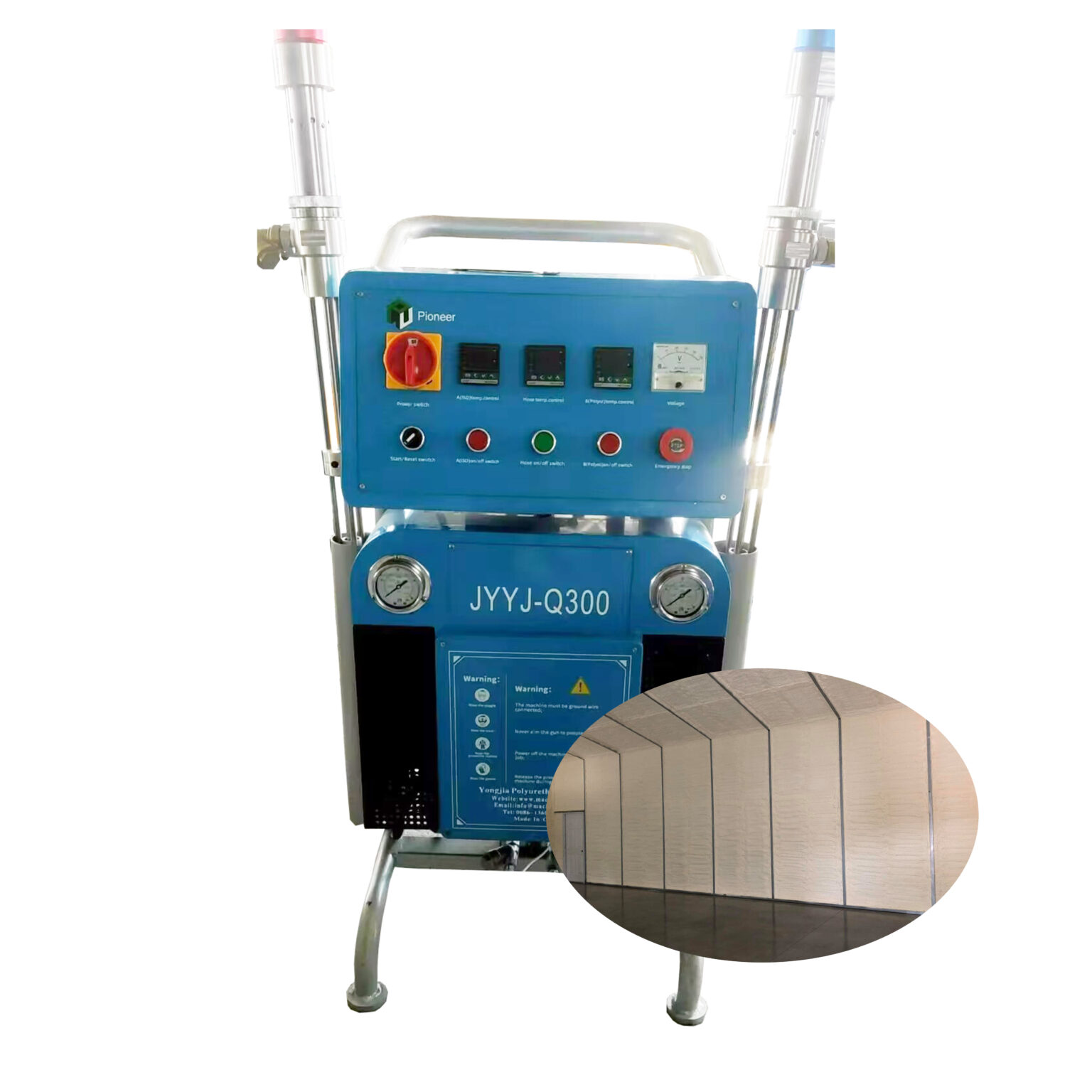

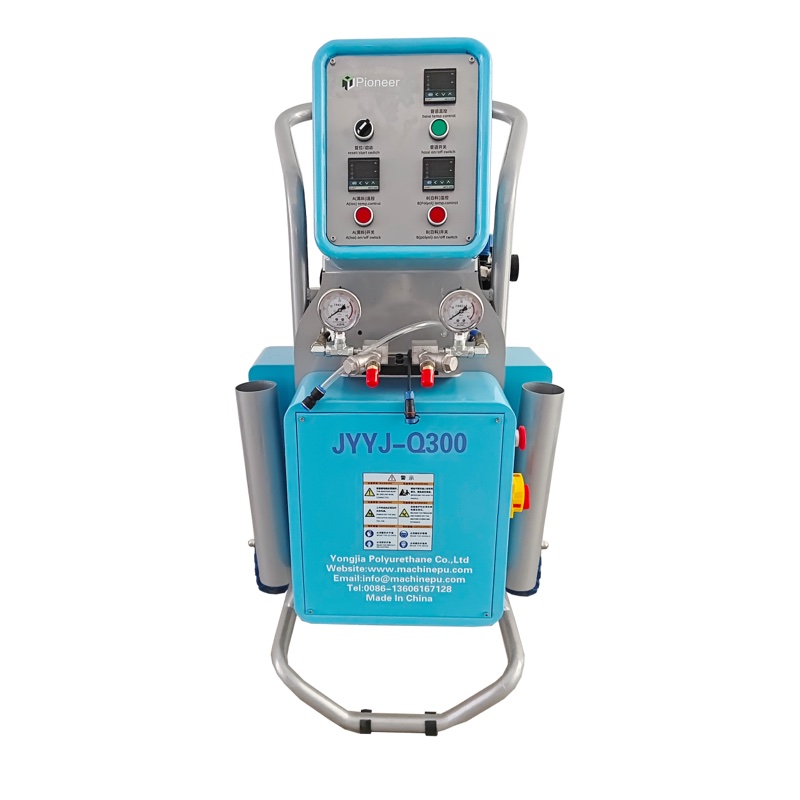

JYYJ-Q300
JYYJ-Q300 Mid-Range Pneumatic Spray Machine
Mid-range pneumatic spray machine delivering 2-10 kg/min at 30 MPa — the highest pressure available in the JYYJ pneumatic line. 15 kW heating power and quadruple raw-material filtering provide stability for sustained commercial work. The professional pneumatic step up from entry-level units.

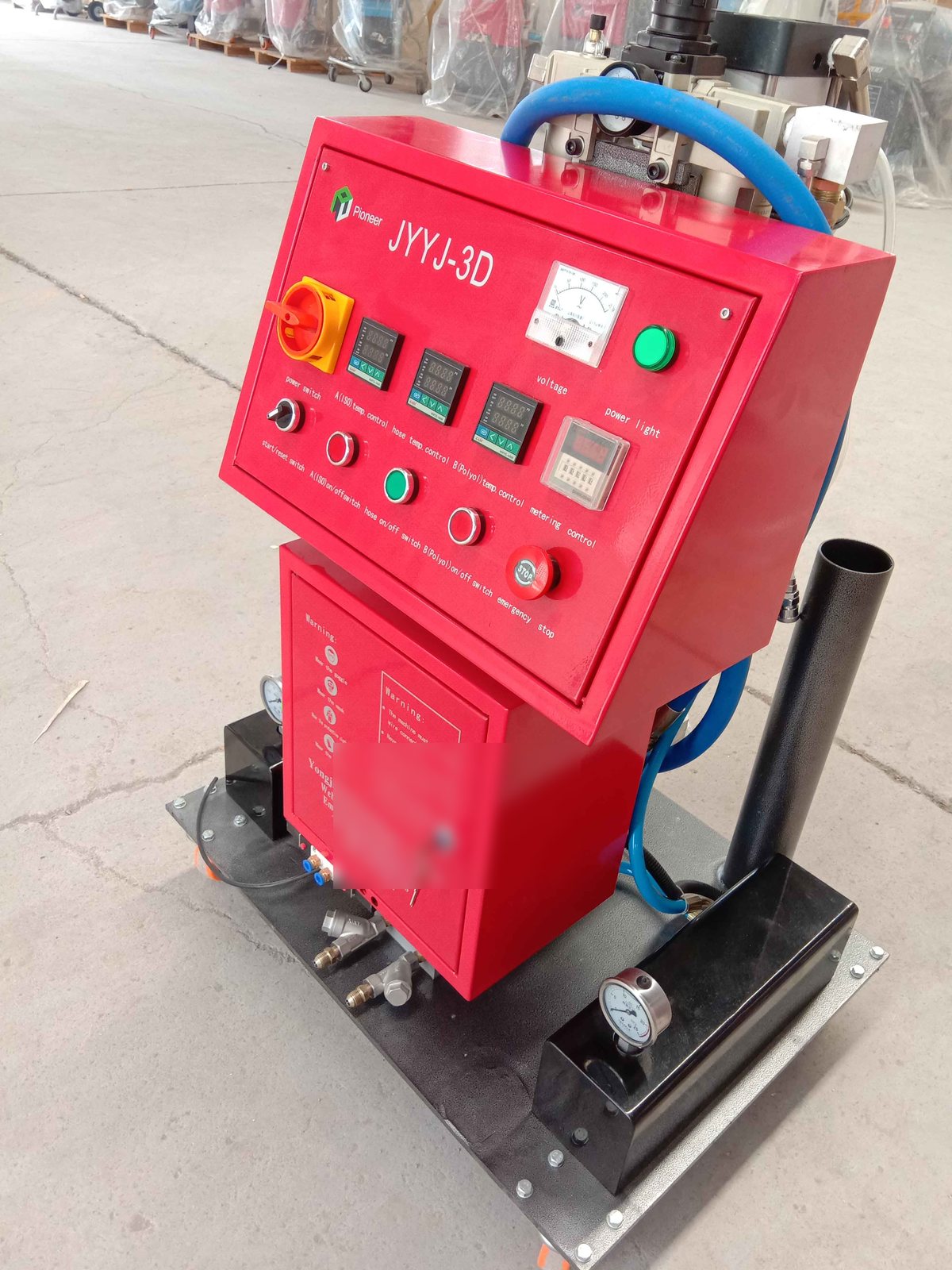

JYYJ-3D
JYYJ-3D Pneumatic Casting & Injection Machine (Metering Timer)
Pneumatic casting and injection machine with a metering timer for repeatable fixed-dose pours. 2-10 kg/min at 25 MPa, 1:1 ratio, 9 kW heating, 380V (220V/7kW option). Built for polyurethane injection, void filling, and small-part casting where every shot must be the same.
Hydraulic PU Spray Machines
JYYJ hydraulic series — 5 hero models from 36 MPa entry (H600) to 10-inch PLC flagships (H600PK, H-V8T). Built for high-density closed-cell foam, polyurea waterproofing, and industrial coatings at scale. All models support polyurea + polyurethane chemistry.

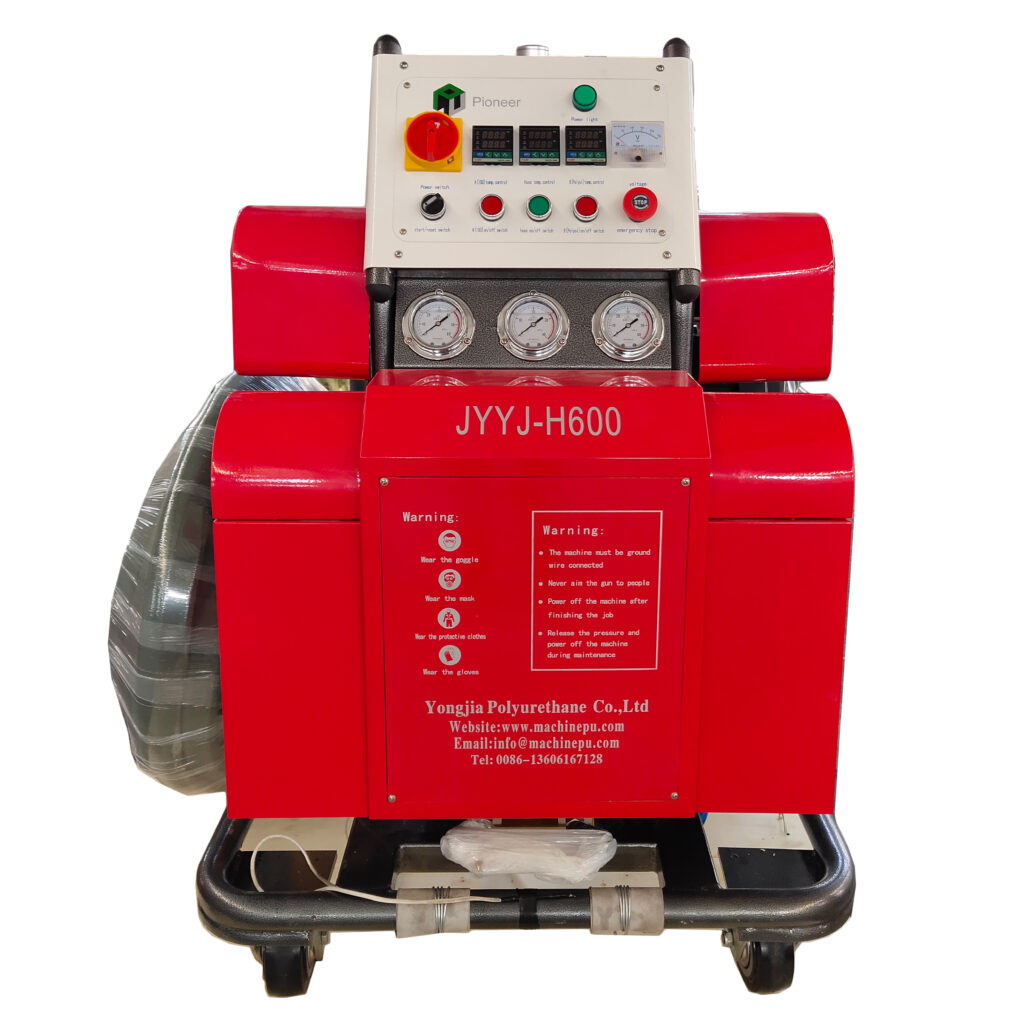

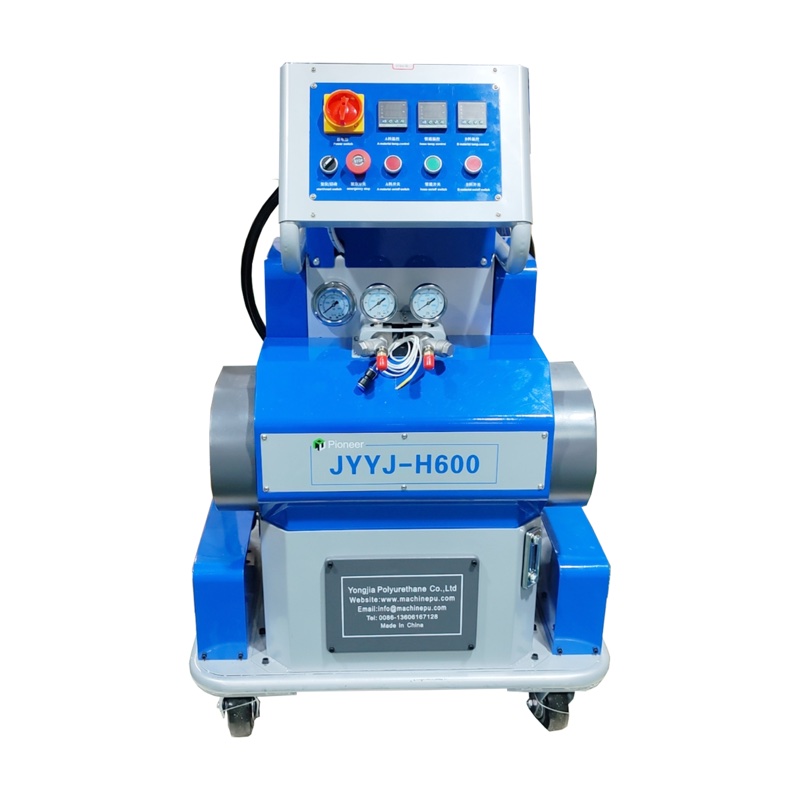

JYYJ-H600
JYYJ-H600 Hydraulic PU Spray Machine
Entry-level hydraulic spray machine — the gateway to professional-grade pressure. 2-12 kg/min at 36 MPa with 6-18 MPa hydraulic system pressure. Compatible with both polyurethane foam and polyurea coatings. Air-cooling system protects motor and pump for sustained heavy-duty operation.

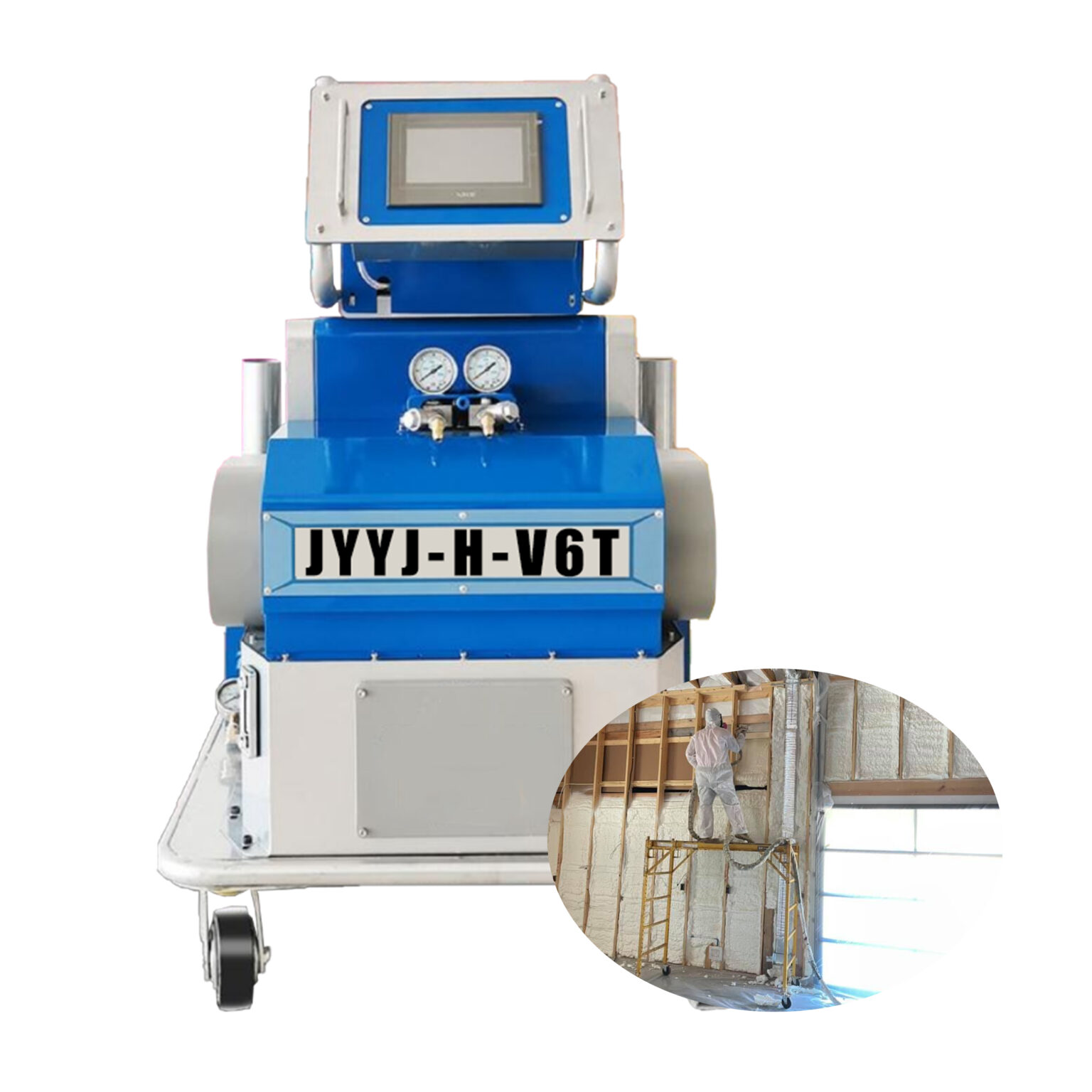

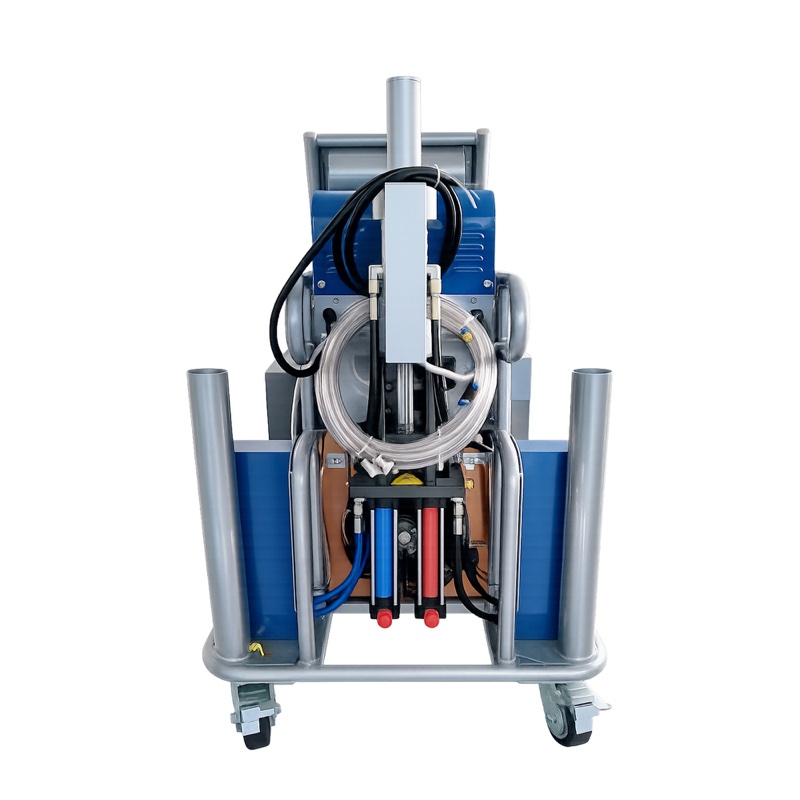

JYYJ-H-V6T
JYYJ-H-V6T Hydraulic Spray Machine + 7-inch PLC
Hydraulic workhorse with 7-inch PLC touchscreen control. 2-10 kg/min at 36 MPa, 105 m insulated pipe support, and intelligent automation. Ideal for contractors who need precision control without flagship pricing — the sweet spot between H600 entry and H600PK flagship.

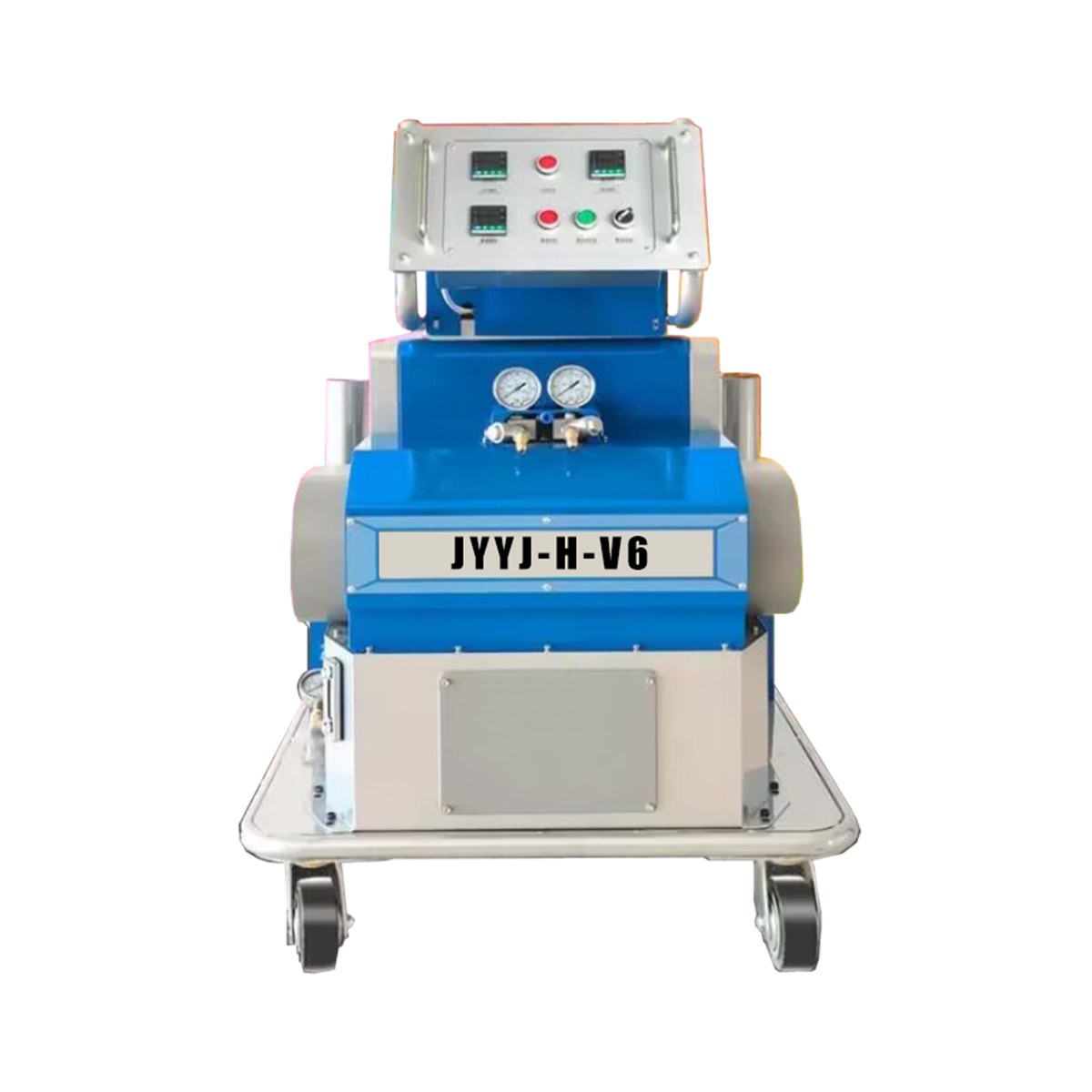

JYYJ-H-V6
JYYJ-H-V6 Hydraulic Polyurea & Foam Spray Machine
Hydraulic-drive spray machine for polyurea and polyurethane foam. 2-10 kg/min at the full 36 MPa working pressure, 26 kW total power with 22 kW heating, and support for up to 105 m of heated hose. Robust 310 kg build with an air-cooling system for sustained heavy-duty spraying. The manual-control hydraulic workhorse — full 36 MPa power without the PLC premium.

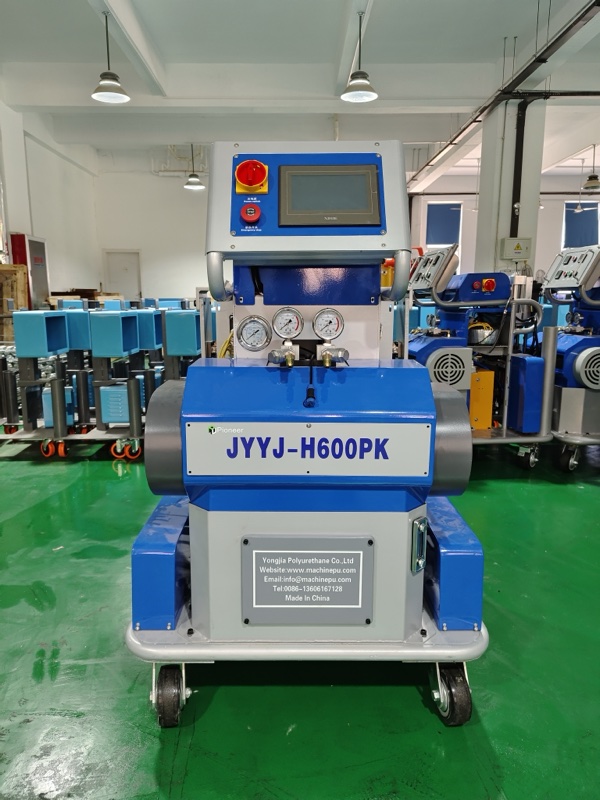

JYYJ-H600PK
JYYJ-H600PK Adjustable-Ratio Hydraulic + 7-inch PLC
Adjustable-ratio hydraulic spray machine with 7-inch PLC touchscreen and adjustable mixing ratio (1:1~1:2). 2-10 kg/min at 36 MPa for polyurea, high-density foam, and precision-critical applications. Recipe memory and data logging for project documentation. Adjustable ratio handles temperature-driven viscosity shifts and custom material formulations — unique in the JYYJ line.

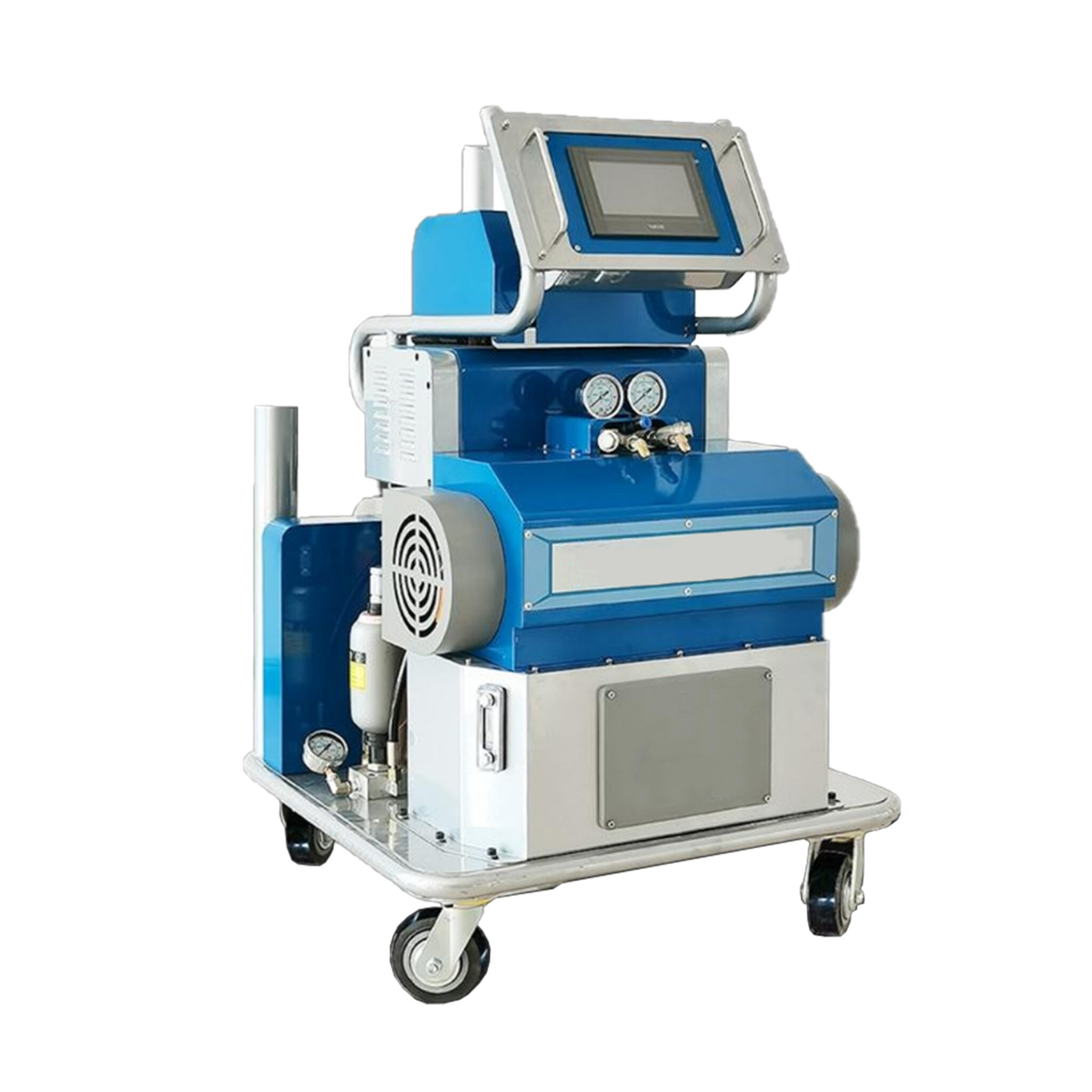

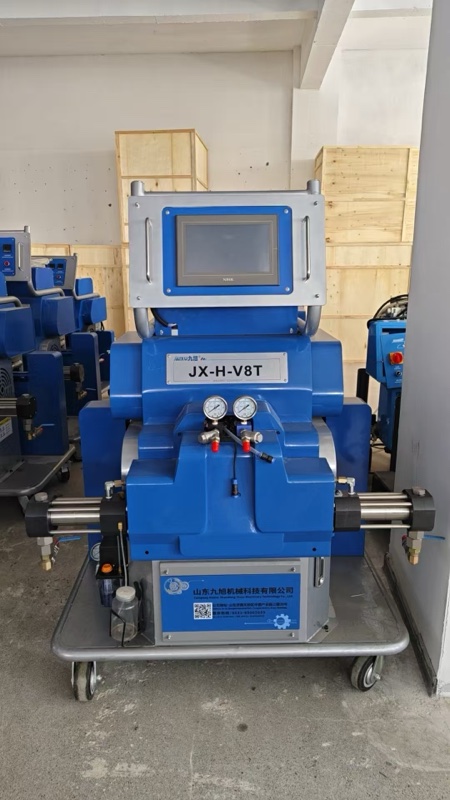

JYYJ-H-V8T
JYYJ-H-V8T Premium Hydraulic + 10-inch PLC + Low-Temp Protection
Pioneer's top-tier flagship — the highest-output PLC-controlled spray machine in the JYYJ line. 2-15 kg/min at 36 MPa with 10-inch PLC touchscreen, one-click start/stop operation, and low-temperature protection that prevents incomplete mixing in cold conditions. Flat-mounted booster pump design reduces footprint while maintaining the highest output. Ideal for the most demanding industrial polyurea and polyurethane projects.
JYYJ-H-V8
JYYJ-H-V8 High-Output Hydraulic Spray Machine (Button Control)
The highest-output hydraulic in the JYYJ line without the PLC — 2-15 kg/min at 36 MPa driven by a 32 kW motor, with straightforward button and dial control. Sprays polyurea and polyurethane at flagship output for a lower price than the PLC-controlled V8T. Ideal for high-volume contractors who want maximum throughput without touchscreen automation.
Electric PU Spray Machines
Electric drive series under development. Contact us for updates and custom specifications.
Ask about availabilityFull Model Lineup — 17 In-Production Models
Every JYYJ model in production. Configuration variants (D casting · K adjustable ratio · P PLC · T high-heat) share the base platform — click any model to open its series page.
Pneumatic Series
| Model | Max Pressure | Output (kg/min) | Ratio | Heating (kW) | Weight (kg) | Configuration |
|---|---|---|---|---|---|---|
| JYYJ-3H | 25 MPa | 2-10 | 1:1 | 7 | 115 | Base |
| JYYJ-A-V3 | 25 MPa | 2-10 | 1:1 | 9.5 | 100 | Coating |
| JYYJ-3D | 25 MPa | 2-10 | 1:1 | 9 | 201 | Casting / fixed-dose |
| JYYJ-Q300 | 30 MPa | 2-10 | 1:1 | 15 | 208 | Base |
| JYYJ-Q300K | 30 MPa | 2-10 | 1:1~1:2 | 15 | 220 | Adjustable ratio |
Hydraulic Series
| Model | Max Pressure | Output (kg/min) | Ratio | Heating (kW) | Weight (kg) | Configuration |
|---|---|---|---|---|---|---|
| JYYJ-H-V6 | 36 MPa | 2-10 | 1:1 | 26/22 | 310 | Base |
| JYYJ-H-V6T | 36 MPa | 2-10 | 1:1 | 26/22 | 310 | + PLC control |
| JYYJ-H600 | 36 MPa | 2-12 | 1:1 | 26/22 | 356 | Base |
| JYYJ-H600D | 36 MPa | 2-12 | 1:1 | 23.5/19.5 | 356 | Casting / fixed-dose |
| JYYJ-H600T | 36 MPa | 2-8 | 1:1 | 29/25 | 437.85 | High-heat |
| JYYJ-H600K | 36 MPa | 2-10 | 1:1~1:2 | 26/22 | 356 | Adjustable ratio |
| JYYJ-H600P | 36 MPa | 2-12 | 1:1 | 26/22 | 354 | + PLC control |
| JYYJ-H600PD | 36 MPa | 2-12 | 1:1 | 23.5/19.5 | 354 | PLC + casting |
| JYYJ-H600PT | 36 MPa | 2-8 | 1:1 | 29/25 | 437.85 | 10" PLC + high-heat |
| JYYJ-H600PK | 36 MPa | 2-10 | 1:1~1:2 | 26/22 | 354 | Adjustable + 7" PLC |
| JYYJ-H-V8 | 36 MPa | 2-15 | 1:1 | 26 | 341.8 | High-output (32 kW) |
| JYYJ-H-V8T | 36 MPa | 2-15 | 1:1 | 26 | 338 | Flagship + 10" PLC |
