Heated Hoses
Heated hose assemblies for maintaining material temperature from machine to spray gun. 15m / 30m / 60m lengths · jacket-heated and axially-heated options.
Overview
A heated hose carries the A and B components from the machine to the spray gun while holding them at spray temperature. The moment chemicals leave the heated proportioner, an ordinary hose lets them cool — viscosity climbs, the gun struggles to mix and atomise, and you get off-ratio, rough spray and soft cure. The heated hose is what lets you spray far from the rig and keep spraying in cold weather, so hose length and heating method directly set how big an area one setup can cover.

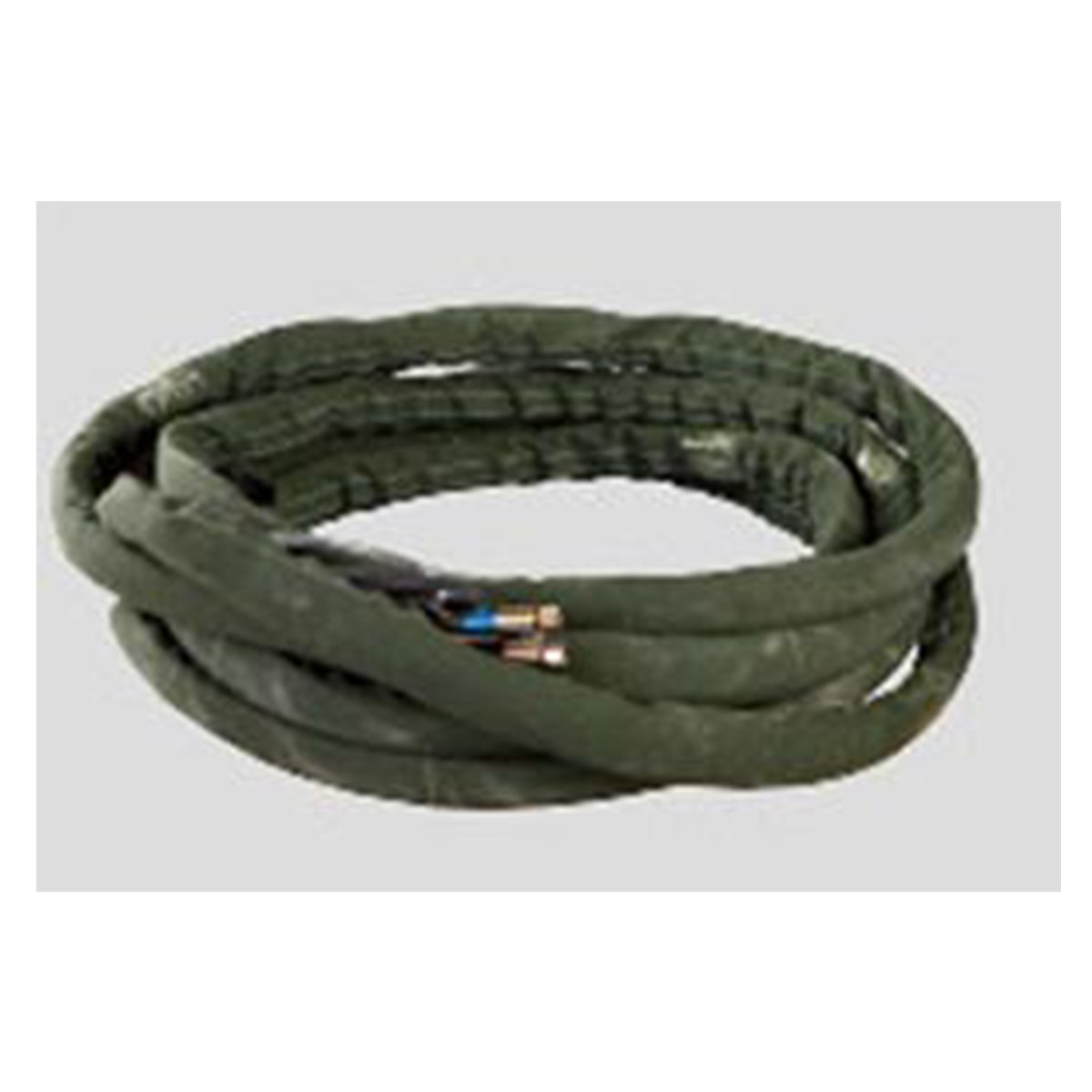

Jacket-Heated Construction
A resistance heating element and insulation wrap the high-pressure chemical core, holding A and B at spray temperature from machine to gun. The abrasion-resistant outer jacket survives being dragged across roofs, scaffold, and concrete.

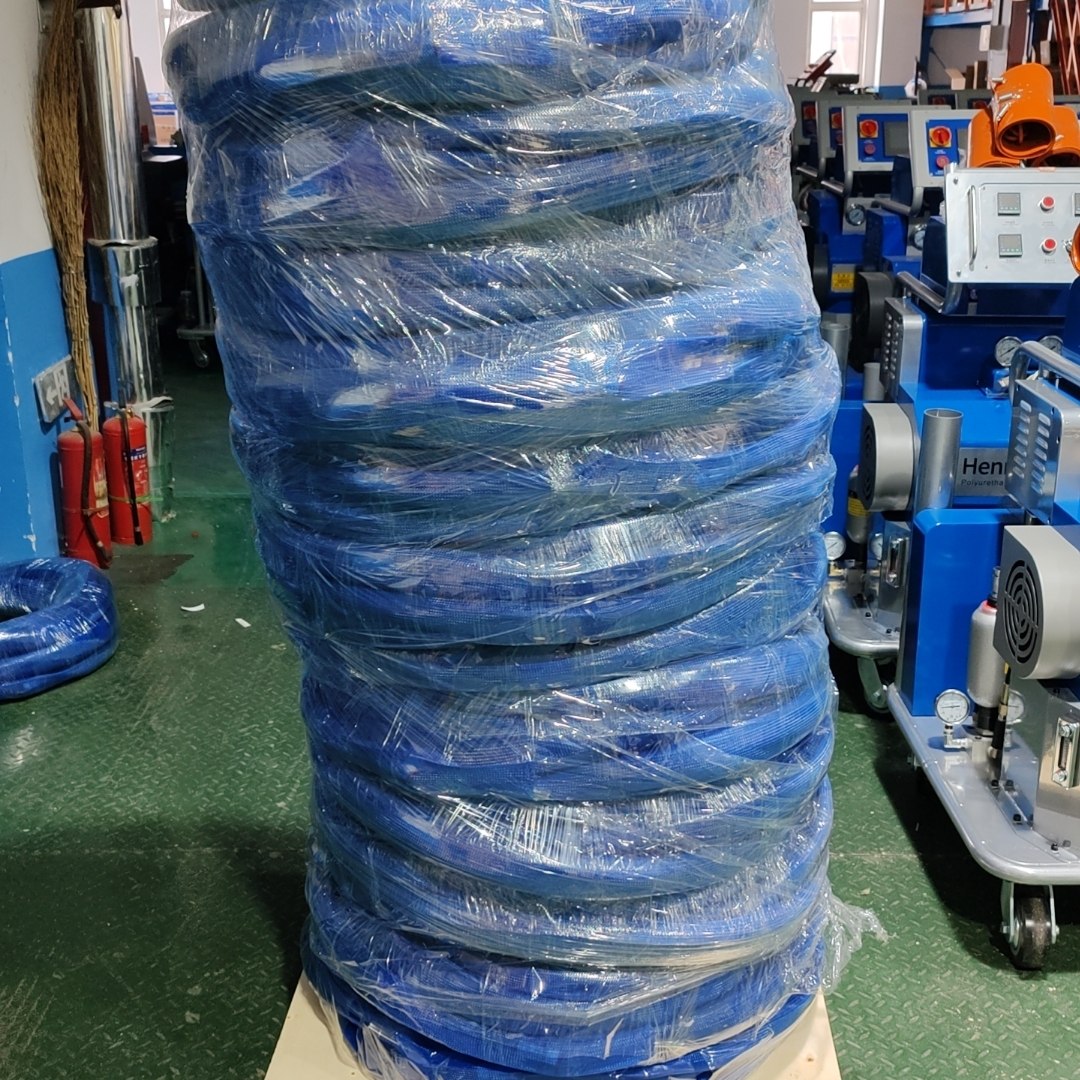

Extendable Reach + RTD Control
Sections daisy-chain (15 m → 30 m → 60 m+) so one rig covers a whole roof, tank top, or floor without moving. An RTD sensor feeds temperature back to the machine's heat controller, holding the set point end-to-end.
How a heated hose holds temperature
- High-pressure chemical core — an inner tube rated to the machine pressure carries each component; A and B run in their own heated lines.
- Resistance heating element — a heating wire runs the length of the hose to add heat continuously, not just at the machine.
- RTD temperature feedback — a sensor in the hose reports temperature back to the machine’s heat controller, which holds the set point end-to-end instead of guessing.
- Thermal insulation + abrasion jacket — insulation keeps the heat in; a tough outer jacket survives being dragged across roofs, scaffold, and concrete.
Length, reach, and the whip hose
Heated sections daisy-chain — 15 m → 30 m → 60 m → 120 m and beyond — so one rig reaches an entire commercial roof, tank top, or warehouse floor without repositioning the machine. At the gun, a short whip hose (3 m / 6 m) stays light and flexible in the operator’s hand for the last metre, cutting fatigue on long passes.
Jacket-heated vs axially-heated for cold climates
Jacket-heated hose (standard) wraps the heating element around the core and suits most temperate work. Axially-heated hose runs the element along the core for faster, more even heat — the right choice for cold-climate spraying (Russia / CIS and winter roofing) where ambient is at or below freezing and an under-heated hose would stall the job.
Specifications
- Working pressure: up to 36 MPa (matched to the machine)
- Heating power: 2.5–6.0 kW depending on length
- Temperature control: RTD feedback to the machine heat controller
- Lengths: 15 m / 30 m / 60 m / 120 m extendable, plus 3 m / 6 m whip hose
- Heating type: jacket-heated (standard) or axially-heated (cold-climate)
- Compatible: all JYYJ pneumatic and hydraulic machines
Frequently asked questions
Why do I need a heated hose instead of a normal high-pressure hose?
Polyurethane and polyurea spray at a controlled temperature. A normal hose lets the heated chemical cool on the way to the gun, raising viscosity and wrecking mix and atomisation. A heated hose holds the temperature all the way to the gun so the spray stays on-ratio and atomised.
How long a hose can I run?
Sections daisy-chain to 120 m and beyond (100 m+ on large rigs) as long as the machine’s heating and pressure can support the run. We size the heating power and section count to your reach and ambient temperature.
What is a whip hose?
A whip hose is a short, flexible heated section (3 m or 6 m) at the gun end. It keeps the last metre light and manoeuvrable in the operator’s hand while the long main hose carries the bulk of the distance.
Available Models
| Model | Specification | Compatible JYYJ |
|---|---|---|
| PHH-15 | 15m heated hose · 2.5 kW heating · standard length | 3h q300 h-v6t h600 h600pk |
| PHH-30 | 30m heated hose · 3.0 kW heating · medium-area work | h600 h600pk h-v8t |
| PHH-60 | 60m heated hose · 6.0 kW heating · large-area / mobile rig | h-v8t |
| PHH-120 | 120m heated hose · maximum configurable length · daisy-chained for large commercial roofs / mobile rigs | h600pk h-v8t |
| PHH-WHIP-3 | 3m whip hose at gun · flexibility for last-meter | 3h q300 h-v6t h600 h600pk h-v8t |
Why Pioneer Accessories
Extendable assemblies: 15m → 30m → 60m+ for large-area work
Whip hose at gun for last-meter operator flexibility
Jacket-heated standard, axially-heated for cold-climate (Russia / CIS) projects
Pressure rated up to 36 MPa to match all hydraulic JYYJ models
Fits These JYYJ Machines
JYYJ-3H
Entry-level pneumatic spray machine delivering stable 2-10 kg/min output at 25 MPa. Ideal for small to medium insulation, roofing, and residential projects. Single-phase 380V power, 9.5 kW heating, and self-cleaning spray gun included. The most affordable starter unit in the JYYJ pneumatic line.
JYYJ-Q300
Mid-range pneumatic spray machine delivering 2-10 kg/min at 30 MPa — the highest pressure available in the JYYJ pneumatic line. 15 kW heating power and quadruple raw-material filtering provide stability for sustained commercial work. The professional pneumatic step up from entry-level units.
JYYJ-H-V6T
Hydraulic workhorse with 7-inch PLC touchscreen control. 2-10 kg/min at 36 MPa, 105 m insulated pipe support, and intelligent automation. Ideal for contractors who need precision control without flagship pricing — the sweet spot between H600 entry and H600PK flagship.
JYYJ-H600
Entry-level hydraulic spray machine — the gateway to professional-grade pressure. 2-12 kg/min at 36 MPa with 6-18 MPa hydraulic system pressure. Compatible with both polyurethane foam and polyurea coatings. Air-cooling system protects motor and pump for sustained heavy-duty operation.
JYYJ-H600PK
Flagship hydraulic spray machine with 10-inch PLC touchscreen and adjustable mixing ratio (1:1~1:2). 2-10 kg/min at 36 MPa for polyurea, high-density foam, and precision-critical applications. Recipe memory and data logging for project documentation. Adjustable ratio handles temperature-driven viscosity shifts and custom material formulations — unique in the JYYJ line.
JYYJ-H-V8T
Pioneer's top-tier flagship — the highest-output PLC-controlled spray machine in the JYYJ line. 2-15 kg/min at 36 MPa with 10-inch PLC touchscreen, one-click start/stop operation, and low-temperature protection that prevents incomplete mixing in cold conditions. Flat-mounted booster pump design reduces footprint while maintaining the highest output. Ideal for the most demanding industrial polyurea and polyurethane projects.
Need Heated Hoses?
Tell us your JYYJ machine model + quantity. We ship genuine factory-direct accessories worldwide within standard lead time.
