JYYJ-H600PK Flagship Hydraulic + 10-inch PLC + Adjustable Ratio (JYYJ-H600PK) is a CE/ISO 9001-certified hydraulic pu spray machines manufactured by Pioneer Spray. Key specs: Drive Type Hydraulic, Max Output 2-10 kg/min, Max Working Pressure 36 MPa.
JYYJ-H600PK
JYYJ-H600PK Flagship Hydraulic + 10-inch PLC + Adjustable Ratio
Flagship hydraulic spray machine with 10-inch PLC touchscreen and adjustable mixing ratio (1:1~1:2). 2-10 kg/min at 36 MPa for polyurea, high-density foam, and precision-critical applications. Recipe memory and data logging for project documentation. Adjustable ratio handles temperature-driven viscosity shifts and custom material formulations — unique in the JYYJ line.
- 10-inch PLC touchscreen — largest display in the JYYJ line
- Adjustable 1:1 to 1:2 mixing ratio — only flagship-tier feature
- Recipe memory — store multiple material profiles per project
Technical Specifications
| Drive Type | Hydraulic |
| Max Output | 2-10 kg/min |
| Max Working Pressure | 36 MPa |
| Hydraulic System Pressure | 6-18 MPa |
| Mixing Ratio | 1:1 ~ 1:2 (Adjustable) |
| PLC Control | 10-inch Touchscreen |
| Voltage | 380V 3-phase 50Hz |
| Heating Power | 26 kW / 22 kW |
| Air Source | 0.5-0.8 MPa ≥ 0.5 m³/min |
| Heat Hose | 15 m / set |
| Net Weight | 354 kg |
| Applicable Materials | All PU foam + polyurea + specialty formulations |

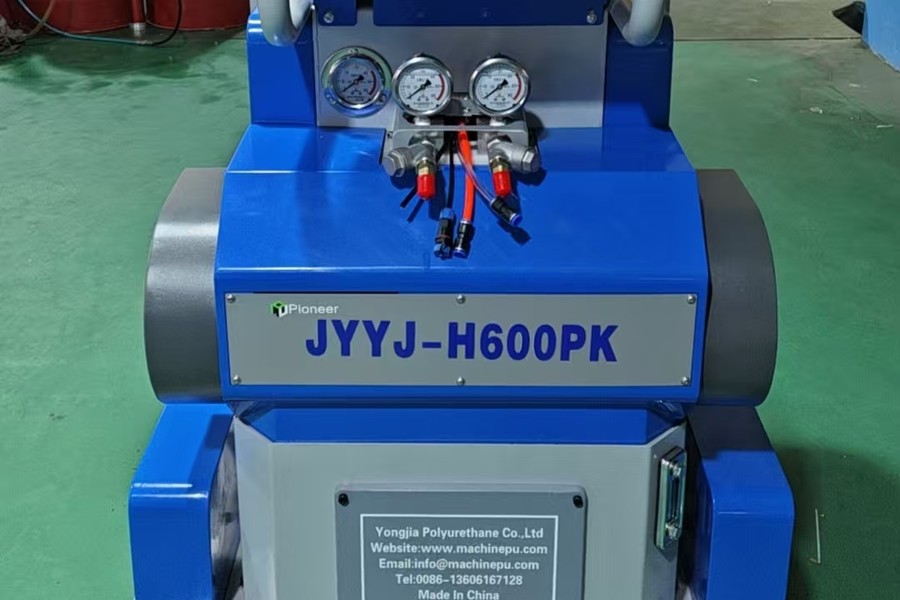

Inside the JYYJ-H600PK Flagship Hydraulic Spray Machine
The JYYJ-H600PK is Pioneer's flagship hydraulic plural-component machine. The PK designation says it all: P for the 10-inch PLC touchscreen automation, and K for the adjustable mixing ratio (1:1 ~ 1:2). It sprays a stable 2–10 kg/min at the full 36 MPa, handling polyurethane foam and polyurea, with recipe memory that lets one machine switch between formulations without recalibration.
It is the top of the hydraulic line — full automation and ratio flexibility on top of the proven 36 MPa drive shared with the JYYJ-H600. Below is a component-by-component look at what you are buying.
Machine Details — Component by Component

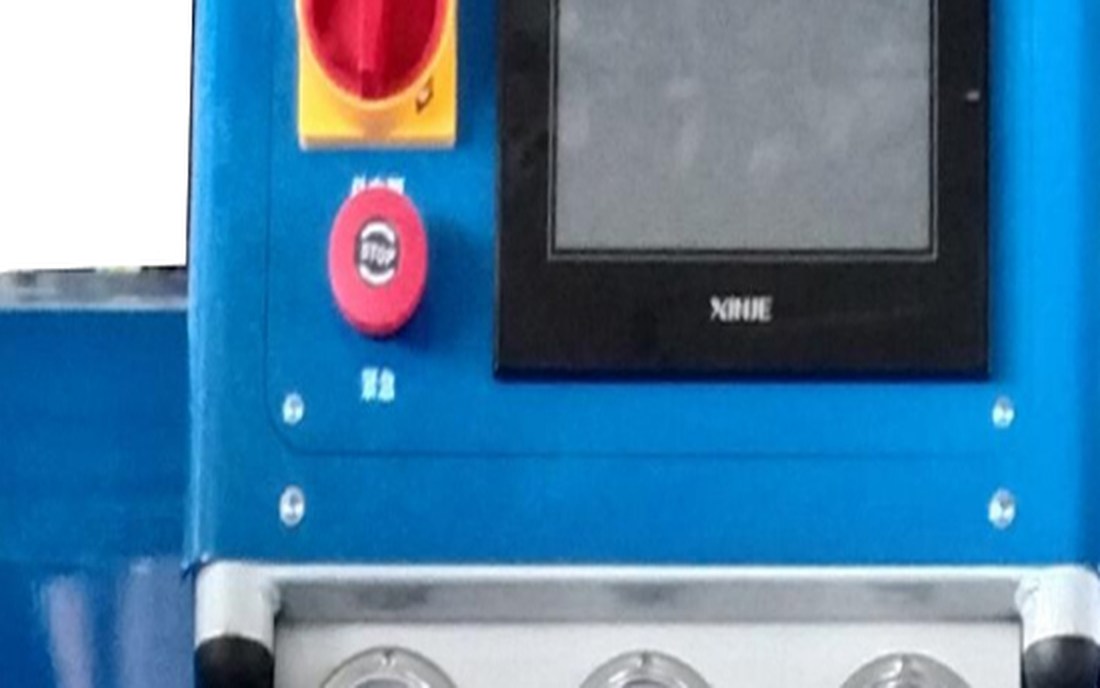

10-inch PLC Touchscreen
The 10-inch PLC touchscreen automates temperature, pressure, and ratio control, with recipe memory for switching between foam and coating formulations. A dedicated emergency stop keeps high-pressure operation safe.

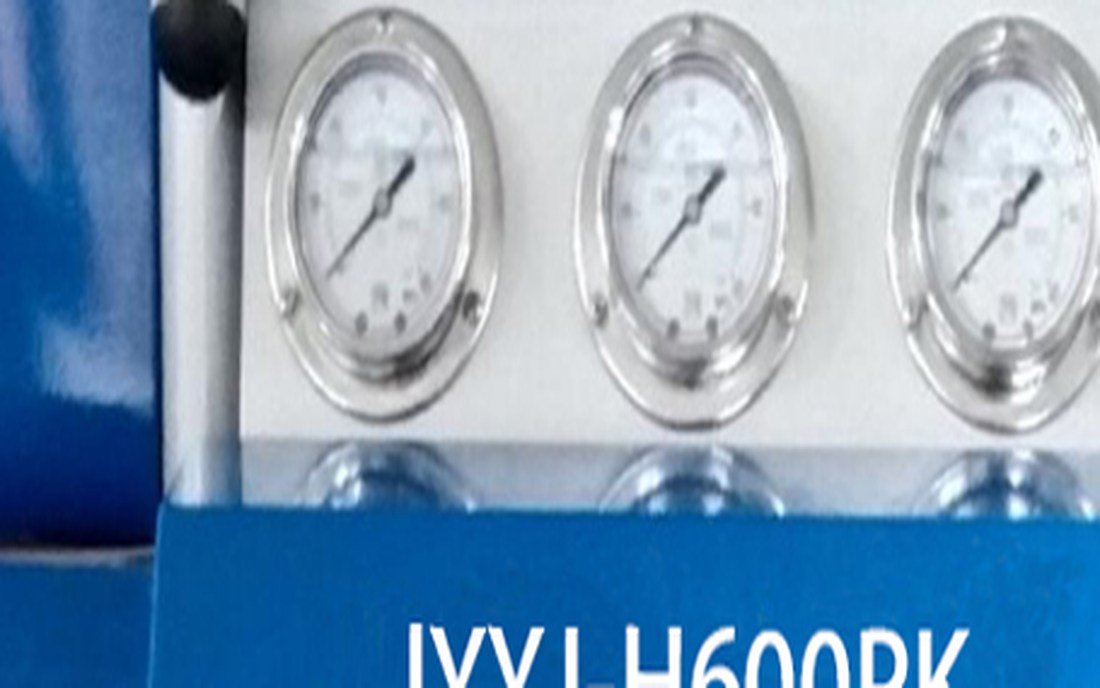

Triple Pressure Gauges
Three panel gauges read A-side, B-side, and system pressure at a glance, so the operator can confirm balanced, on-ratio pressure up to 36 MPa before and during spraying — the key to a defect-free result.

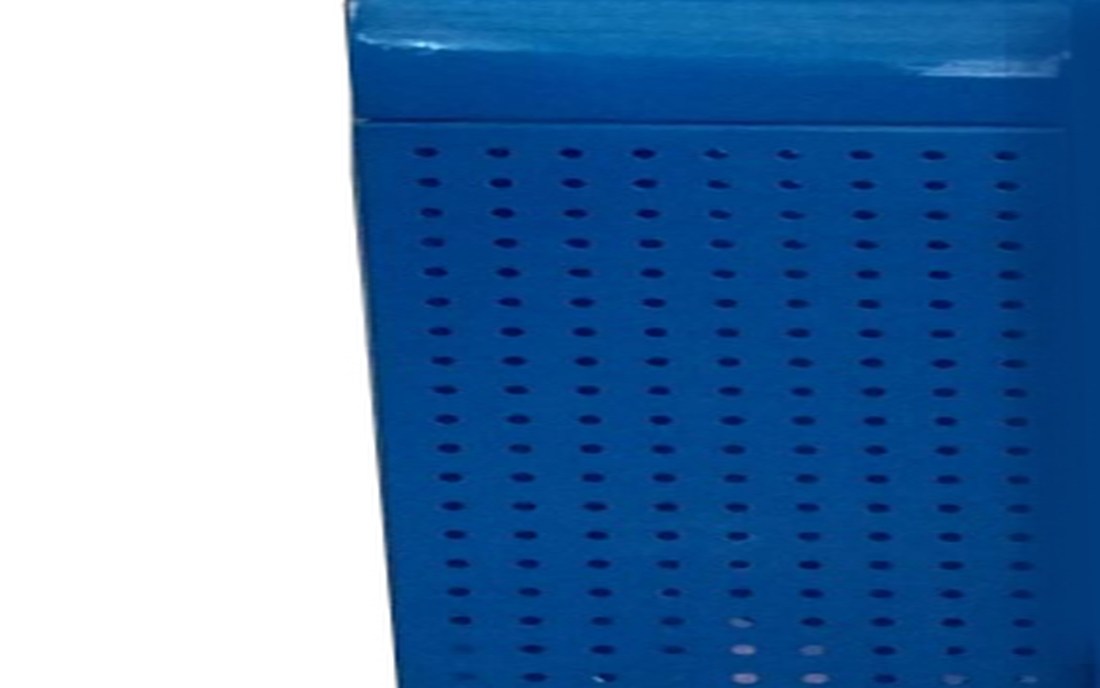

Air-Cooling System
Ventilated side panels and an integrated air-cooling system shed heat from the motor and hydraulic pump, so the flagship can run sustained heavy-duty production without overheating.

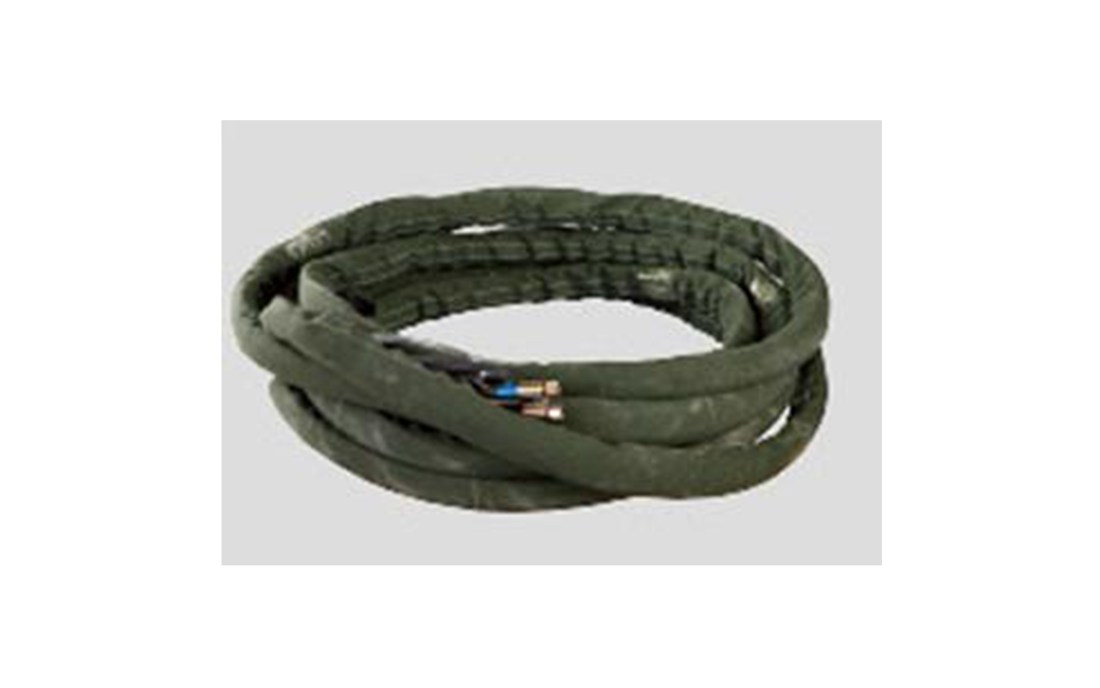

Heated Hose
The heating system warms the chemicals in the machine and along the heated hose, holding viscosity all the way to the gun for clean, consistent foam and polyurea even in cold-weather work.

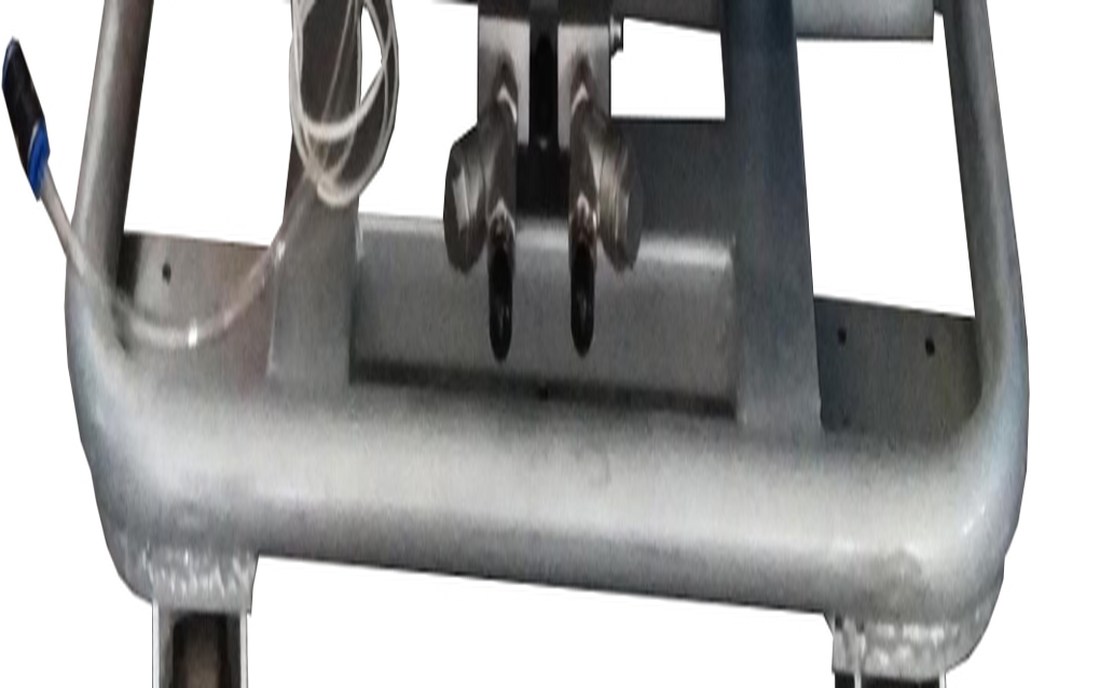

Heavy-Duty Mobile Base
The hydraulic unit sits on a welded steel base with industrial casters, so a crew can roll the flagship around a large site, yet it stays planted during high-pressure spraying.
How the JYYJ-H600PK Works
An electric motor drives a hydraulic system that powers the proportioning pump to 36 MPa, with the mixing ratio set on the PLC anywhere from 1:1 to 1:2. The A and B components are heated to temperature and pushed down the heated hose; at the gun they mix and atomise, leaving expanding foam or an even polyurea coating that cures in seconds. The PLC holds the recipe so output stays consistent across long production runs.
Who the JYYJ-H600PK Is For
The H600PK is for contractors and manufacturers who need flagship automation — touchscreen control, adjustable ratio, and recipe memory — for varied commercial and industrial spray foam and polyurea work. For the manual-control hydraulic, see the JYYJ-H-V6 and entry-level JYYJ-H600; for the PLC-equipped V-series, the JYYJ-H-V6T.
Not sure whether the H600PK matches your output, voltage, or chemical system? Talk to our engineers and we will confirm the right configuration before you order.
Key Features
- 10-inch PLC touchscreen — largest display in the JYYJ line
- Adjustable 1:1 to 1:2 mixing ratio — only flagship-tier feature
- Recipe memory — store multiple material profiles per project
- Data logging for project documentation and quality compliance
- Compatible with full polyurea chemistry for critical waterproofing
- Handles custom A/B formulation ratios common in industrial coatings
- Cold-environment material heating ensures viscosity consistency
Typical Applications
- Polyurea waterproofing and tank lining
- Large-scale cold storage (−40°C applications)
- Industrial roofing at scale
- Petroleum / chemical tank coating
- High-specification commercial insulation
JYYJ-H600PK in Action
Representative projects using this machine. Not customer-specific unless noted.
Food Processing Company · 300 m²
300m² Cold Storage Insulation · Moscow
Meat processing cold storage at -25°C operational. Closed-cell PU foam at 40 kg/m³ with HFO blowing agent. Energy consumption reduced by 18% vs prior fiberglass.
Industrial Dairy Farm · 3,200 m² (cattle housing + milk parlor)
6,000-Head Dairy Cattle Barn Insulation · Volgograd
Modern dairy farm cattle housing with 75mm closed-cell PU foam. Winter feed -12%, milk yield stabilized across -30°C winters, eliminated condensation respiratory issues.
Commercial Agricultural Fleet Operator · 80 vehicles · ~480 m² total bed area
80-Truck Pickup Bed Liner Polyurea Coating · Monterrey
Commercial agricultural fleet of 80 pickup trucks coated with 4mm polyurea bed liners. Eliminated cargo damage from impact, fertilizer chemicals, salt corrosion. Per-truck application <2 hours, 5+ year service life.
Compatible Materials — One-Stop Supply
Pioneer Spray supplies both machines AND ready-to-ship raw materials. Choose any A-component + B-component combination below.
A Proprietary A-component (Pioneer in-house formulation)
- ● All-Water blowing agent (zero-ODP, zero-GWP)
- ● HFO blowing agent (low GWP < 1, EU F-Gas compliant)
- ● Closed-cell rigid density 30-50 kg/m³
- ● Open-cell half-pound density 8-12 kg/m³
- ● Custom formulation on request
B B-component (Pioneer authorized distributor · 4 brands)
- ● BASF (Germany) — PU industry leader
- ● Dow (USA) — chemical innovation
- ● Huntsman (USA) — MDI specialist
- ● Wanhua Chemical (China) — #1 MDI capacity globally
What's Included & Shipping
Standard Configuration
- Mainframe× 1
- Spray gun (self-cleaning)× 1
- Transfer pump× 2
- Heated hose (15m standard)× 1
- Transfer pump hose× 2
- Whip hose× 2
- Air pipe× 1
- Tools and spare parts box× 1
- English user manual× 1
Heated hose extendable up to 60m. Optional: extra spray gun, PLC upgrade, voltage conversion.
Shipping & Logistics
- Packaging
- Wooden crate, export-grade
- Origin port
- Shanghai / Ningbo
- Russia / CIS
- ~30 days (rail/road)
- LATAM (sea)
- ~40-50 days
- Europe (sea)
- ~35-40 days to Le Havre
- Middle East
- ~20-25 days
- Incoterms
- FOB / CIF / DDP
- Payment
- T/T, L/C (>$50k)

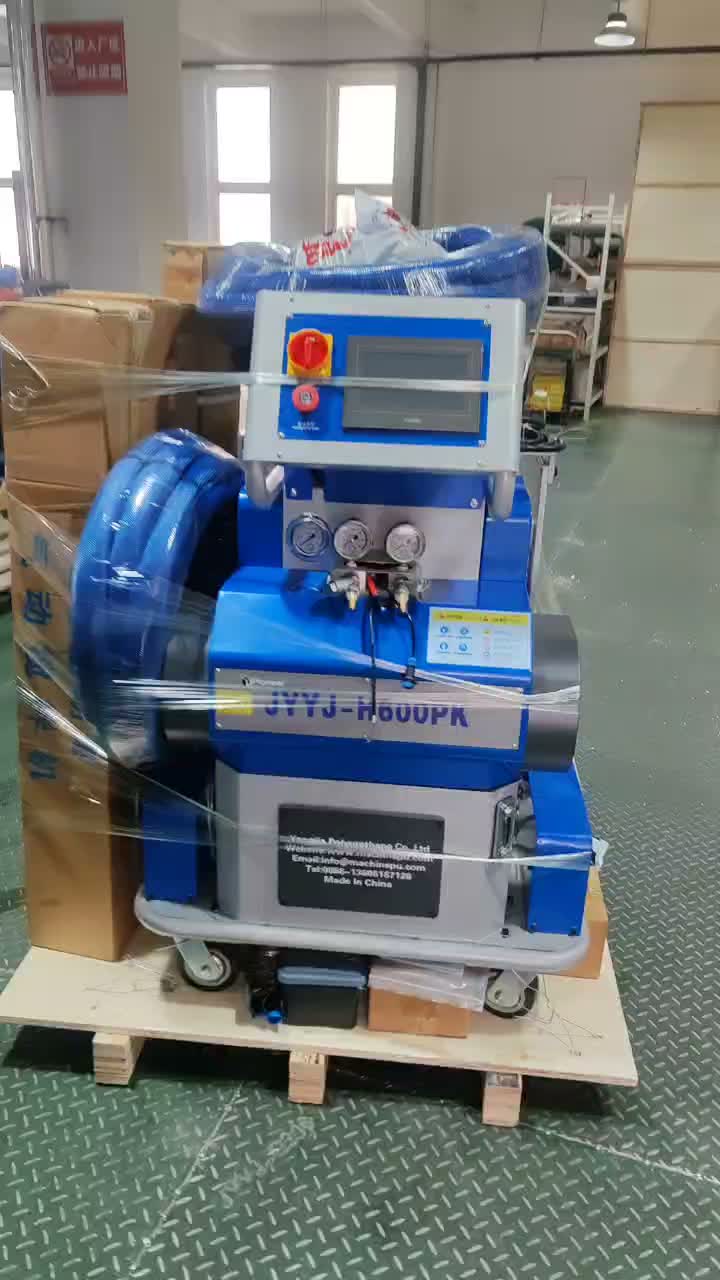

Export-Grade Wooden Crate Packing
Every JYYJ-H600PK is shrink-wrapped, foam-protected, and secured on a pallet inside a sturdy export-grade wooden crate — guarding the machine and its controls against impact and moisture across long sea, rail, and road journeys.
- ✓ Fumigation-free plywood crate, stacking-safe for containers
- ✓ Controls, gauges and pump shrink-wrapped & cushioned
- ✓ Delivered worldwide under FOB / CIF / DDP terms
