JYYJ-3H Pneumatic PU Spray Machine (JYYJ-3H) is a CE/ISO 9001-certified pneumatic pu spray machines manufactured by Pioneer Spray. Key specs: Drive Type Pneumatic, Max Output 2-10 kg/min, Max Working Pressure 25 MPa.
JYYJ-3H

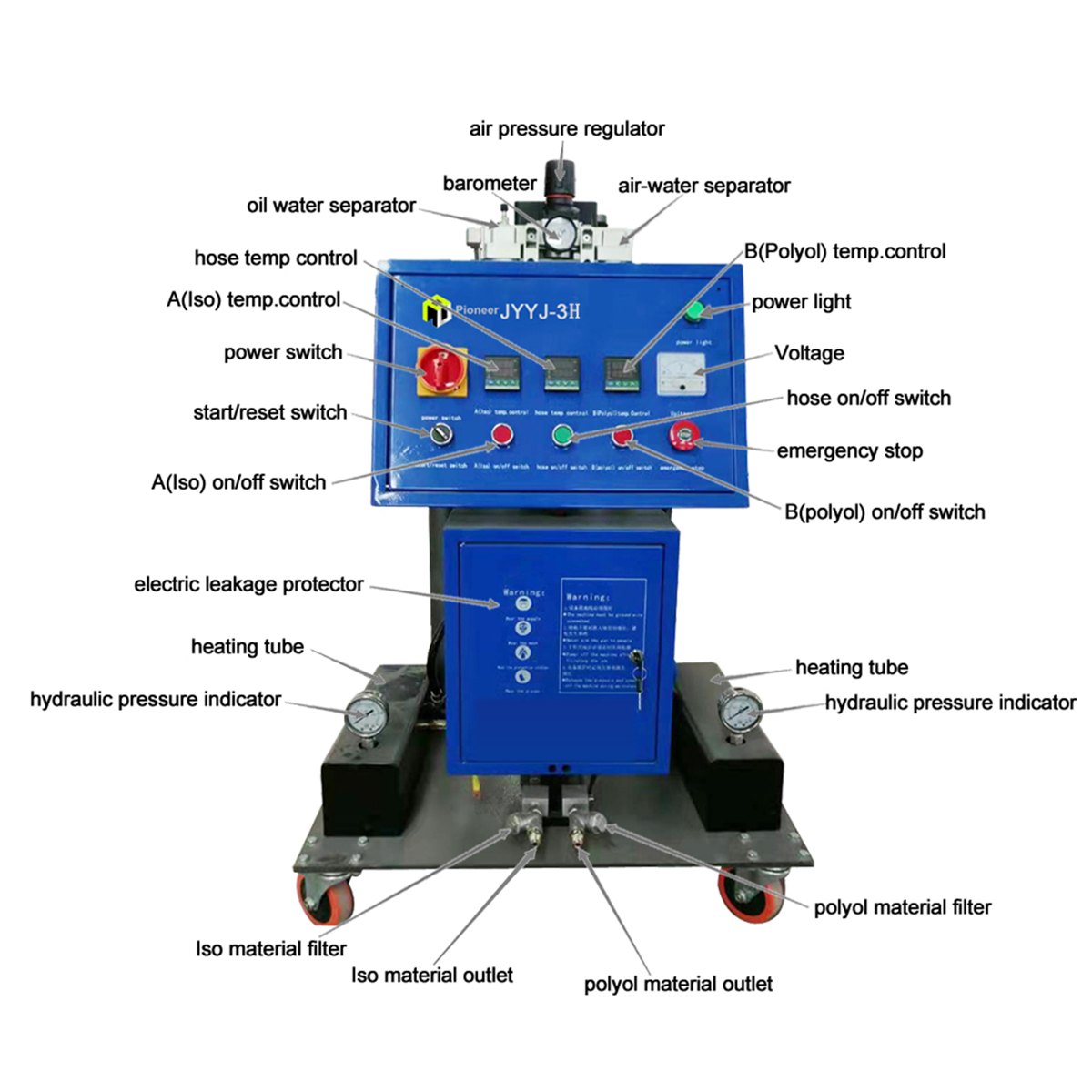

JYYJ-3H Pneumatic PU Spray Machine
Entry-level pneumatic spray machine delivering stable 2-10 kg/min output at 25 MPa. Ideal for small to medium insulation, roofing, and residential projects. Single-phase 380V power, 9.5 kW heating, and self-cleaning spray gun included. The most affordable starter unit in the JYYJ pneumatic line.
- Stable 2-10 kg/min output across full pressure range

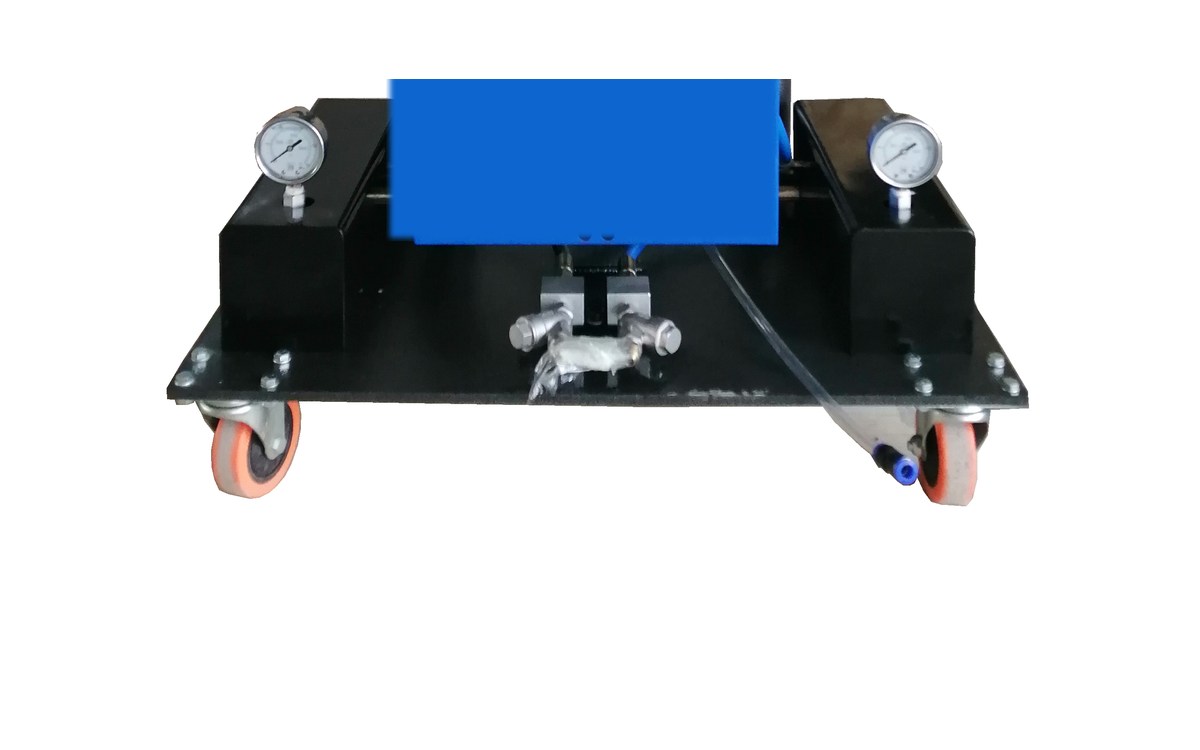

- Compact footprint — easy mobility on construction sites
- Self-cleaning spray gun included as standard
Technical Specifications
| Drive Type | Pneumatic |
| Max Output | 2-10 kg/min |
| Max Working Pressure | 25 MPa |
| Mixing Ratio | 1:1 (Fixed) |
| PLC Control | No |
| Voltage | 380V Single-phase 50Hz |
| Heating Power | 9.5 kW |
| Air Source | 0.5-0.8 MPa, 0.9 m³/min |
| Heat Hose | 15 m / set |
| Applicable Materials | Polyurethane foam |
| Net Weight | ~150 kg |
Key Features
- Stable 2-10 kg/min output across full pressure range
- Compact footprint — easy mobility on construction sites
- Self-cleaning spray gun included as standard
- 4-layer raw material filtering reduces clogging

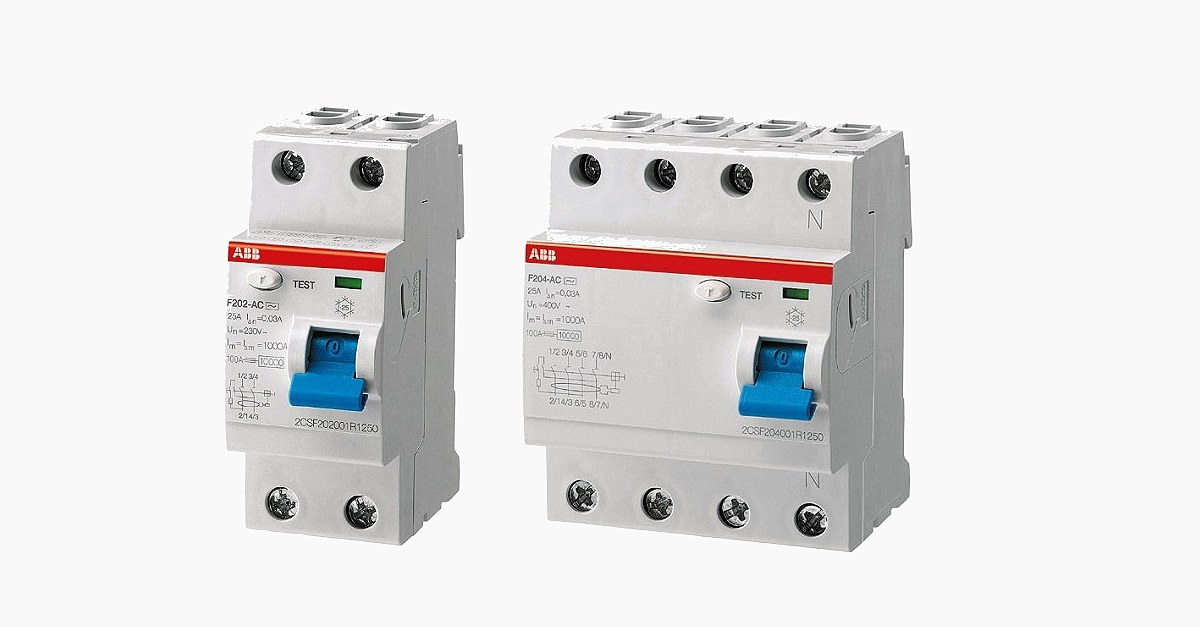

- Multi-leakage protection system for operator safety
- Reliable 380V heating warms materials for cold-weather work
- Lowest-cost entry to professional PU spray operations
Typical Applications
- Residential wall and roof insulation
- Small-scale cold storage
- Attic and crawlspace foam
- Light commercial roofing
- Pipeline insulation (small diameter)
JYYJ-3H — The Right Entry Machine for First-Time Spray Foam Buyers
The JYYJ-3H is the Pioneer entry-level pneumatic machine: the lowest-capex path into professional spray foam contracting. It's the right pick if you're buying your first machine, switching from rental, or running residential retrofit. Where it isn't right: high-volume contracting (step up to JYYJ-Q300), polyurea capability (need JYYJ-H600), and continuous OEM panel production (need hydraulic-class).
The 25 MPa max working pressure is honest — not derated, not "burst" rated. At this pressure, JYYJ-3H atomizes HFC-blown PU foam cleanly and HFO-blown foam adequately (some coarsening at the edge of the spray pattern, acceptable for residential retrofit, marginal for high-spec roofing).
What the JYYJ-3H Sprays Well — And What It Doesn't
- ✓ Closed-cell HFC PU foam (40 kg/m³) — Standard chemistry for residential retrofit. JYYJ-3H atomizes this cleanly at 1-6 kg/min.
- ✓ Open-cell PU foam (8-10 kg/m³) — Interior walls/ceilings. Sprays at low pressure setting.
- ~ HFO-blown closed-cell — Works but pattern edges show coarsening. Fine for residential retrofit; not recommended for visible commercial finish.
- ✗ Polyurea — JYYJ-3H pressure is too low for polyurea atomization. Use JYYJ-H600 minimum.
- ✗ High-density (50+ kg/m³) — At 25 MPa, density variation widens beyond ±3 kg/m³. Use JYYJ-Q300 (30 MPa) or JYYJ-H600 (36 MPa) for premium density spec.
Single-Phase 220V vs 3-Phase 380V — Which Voltage Variant for Your Site
JYYJ-3H is available in two variants — important to confirm at order:
- JYYJ-3H (3-phase 380V, 11 kW heating) — Standard configuration. Better heating headroom, supports 30m+ heated hose, faster ramp-up from cold start. For dedicated spray-foam shops with 3-phase service.
- JYYJ-3D (single-phase 220V, 7 kW heating, 7m heated hose) — Mobile contractor configuration. Plugs into any residential 220V outlet. Lighter chassis, easier to truck-mount. Ideal for residential retrofit work where you can't rely on shop service.
If unsure: 3-phase variant if you're shop-based, single-phase if you're mobile. Both ship in 7-10 working days from in-stock inventory.
Realistic Productivity — How Much Foam in a Day's Work
A 1-shift 8-hour spray day with JYYJ-3H, accounting for setup, drum changes, and spray pattern overlap:
- Closed-cell HFC at 50mm thickness — 800-1,200 board-feet per day per spray crew. ~$3,500-$5,000 revenue at $4-5/board-ft contractor pricing.
- Open-cell at 100mm thickness — 1,500-2,200 board-feet per day. ~$4,500-$6,500 revenue at $3/board-ft.
- Roofing foam at 50mm — 600-900 sq-ft per day (lower productivity due to substrate prep). ~$3,000-$4,500 revenue.
Over a 200-day work year, JYYJ-3H supports $700k-$1.3M annual gross revenue for an established residential retrofit contractor. The $1,500-$2,000 capex pays back in 1-3 jobs.
Maintenance — Realistic for First-Time Owner-Operator
Annual spare parts budget: $150-$300 for JYYJ-3H. Most maintenance is operator-doable with the included manual. For owner-operator contractors, this is the right machine to learn the equipment fundamentals before stepping up to hydraulic.
Project Profile Selector — Match Your Application to a Configuration
Six common project profiles for the JYYJ-3H. Find the closest match, see the recommended setup, capex range, and realistic payback period.
🔰 First-Time Owner-Operator
- Annual output
- 10-25 jobs/yr · learning year
- Config
- JYYJ-3H standard + 15m hose + standard gun
- Capex
- $1,800-$2,200
- Payback
- 3-8 months · usually 1-3 jobs
🚛 Mobile Residential Retrofit
- Annual output
- 20-40 jobs/yr
- Config
- JYYJ-3D (220V single-phase) + truck-mount setup
- Capex
- $2,350-$2,800
- Payback
- 4-9 months
🏘 Established Residential Specialist
- Annual output
- 40-80 jobs/yr
- Config
- JYYJ-3H + 30m extended hose + 2 spare guns
- Capex
- $2,200-$2,800
- Payback
- 4-8 months
🏚 Light Agricultural Insulator
- Annual output
- 10-20 small barns/yr
- Config
- JYYJ-3H + 30m hose + chemical-resistant seals
- Capex
- $2,400-$3,000
- Payback
- 6-12 months
🎓 Trade-School Training Program
- Annual output
- Training 10-20 students/yr
- Config
- JYYJ-3H + dual-gun training kit + manual extras
- Capex
- $2,500-$3,500
- Payback
- Tuition-recovery model
🛠 Side-Business Contractor
- Annual output
- 5-15 jobs/yr (part-time)
- Config
- JYYJ-3D (220V) + minimal kit
- Capex
- $2,350-$2,600
- Payback
- 6-15 months · weekend revenue
Different project profile? Share your substrate, output target, and market — Pioneer's application engineers will spec a configuration within 24 hours.
JYYJ-3H vs Graco · PMC — Spec-by-Spec
Independent comparison across the variables that drive contractor / OEM purchasing decisions. Where premium OEMs win, we say so. Where parity exists, the capex differential decides.
| Spec | Pioneer JYYJ | Graco | PMC |
|---|---|---|---|
| Max working pressure | 25 MPa | 24 MPa (P2 Elite) | 24 MPa (PT-25 entry) |
| Output range | 1-6 kg/min | 1-7 kg/min | 1-8 kg/min |
| Drive type | Pneumatic | Pneumatic | Pneumatic |
| Voltage options | 380V 3-phase OR 220V single-phase (3D) | 230V single / 380V 3-phase | 220V single / 380V 3-phase |
| Heating power | 11 kW (7 kW on 3D) | 8-10 kW | 8 kW |
| Heated hose length | 15m (7m on 3D) | 30ft (9m) | 30ft (9m) |
| Material compatibility | PU foam (HFC primary, HFO/open-cell) | PU foam (HFC primary) | PU foam (HFC primary) |
| Polyurea capable | No | No | No |
| Capex | $1,800 (3H) / $2,350 (3D) | $8,500 (P2 Elite) | $6,200 (PT-25) |
| Lead time (in-stock) | 7-10 working days | 2-3 weeks | 2-3 weeks |
| Annual spares | $150-300 | $500-900 | $300-700 |
| Best fit | First-time owner-operator · residential retrofit · mobile contractor | US/EU contractor with established cash flow | US-based residential retrofit |
Data based on 2026 publicly available product datasheets. We do not represent or distribute Graco / PMC — comparison is for buyer reference. Email info@pioneerspray.com for detailed spec verification.
JYYJ-3H in Action
Representative projects using this machine. Not customer-specific unless noted.
Insulation Contractor · 3 machines · multi-project fleet
Residential Wall Insulation Fleet · Monterrey
Regional insulation contractor standardized fleet on JYYJ-3H for residential SPF retrofits. Entry-level price + professional 25 MPa output enabled rapid crew expansion.
Configurations Available
Same JYYJ-3H series with different specs. Contact for custom config.
| Model | Key Difference | Price Reference |
|---|---|---|
| JYYJ-3D | Single-phase 220V variant, 7 kW heating, shorter 7m heat hose, lighter chassis | $2,350 |
Compatible Materials — One-Stop Supply
Pioneer Spray supplies both machines AND ready-to-ship raw materials. Choose any A-component + B-component combination below.
A Proprietary A-component (Pioneer in-house formulation)
- ● All-Water blowing agent (zero-ODP, zero-GWP)
- ● HFO blowing agent (low GWP < 1, EU F-Gas compliant)
- ● Closed-cell rigid density 30-50 kg/m³
- ● Open-cell half-pound density 8-12 kg/m³
- ● Custom formulation on request
B B-component (Pioneer authorized distributor · 4 brands)
- ● BASF (Germany) — PU industry leader
- ● Dow (USA) — chemical innovation
- ● Huntsman (USA) — MDI specialist
- ● Wanhua Chemical (China) — #1 MDI capacity globally
What's Included & Shipping
Standard Configuration
- Mainframe× 1
- Spray gun (self-cleaning)× 1
- Transfer pump× 2

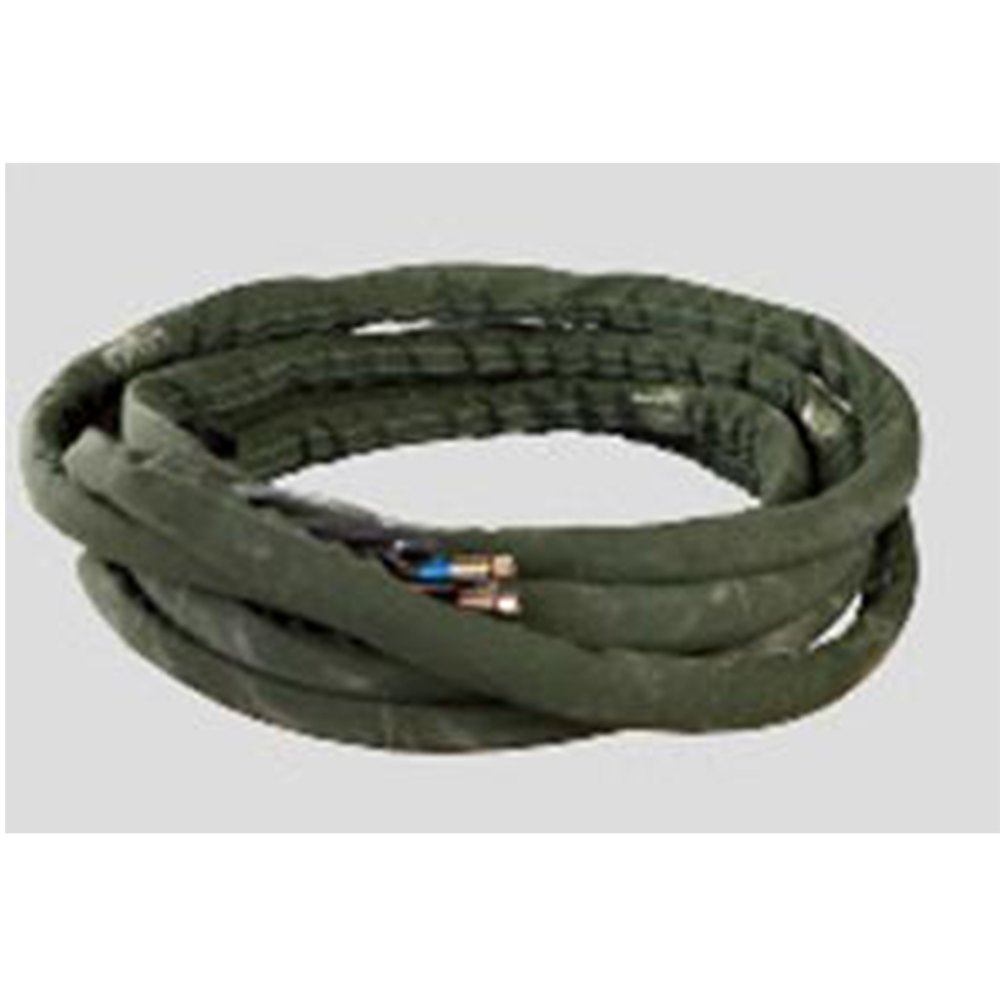

- Heated hose (15m standard)× 1
- Transfer pump hose× 2
- Whip hose× 2
- Air pipe× 1
- Tools and spare parts box× 1
- English user manual× 1
Heated hose extendable up to 60m. Optional: extra spray gun, PLC upgrade, voltage conversion.
Shipping & Logistics
- Packaging

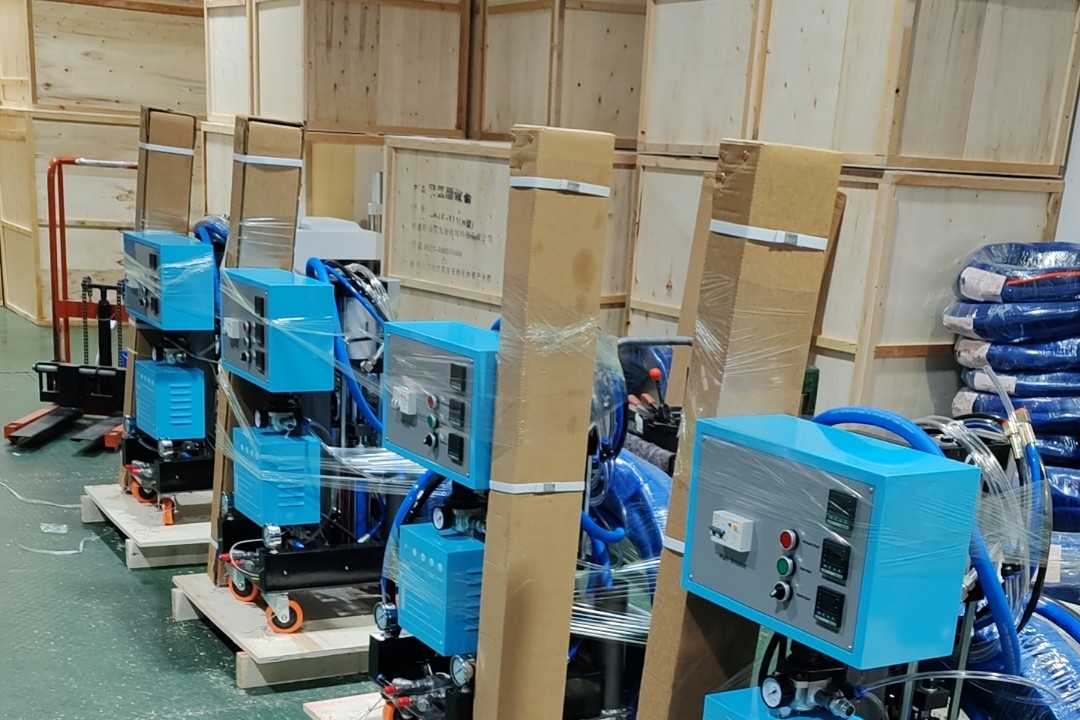

- Wooden crate, export-grade
- Origin port
- Shanghai / Ningbo
- Russia / CIS
- ~30 days (rail/road)
- LATAM (sea)
- ~40-50 days
- Europe (sea)
- ~35-40 days to Le Havre
- Middle East
- ~20-25 days
- Incoterms
- FOB / CIF / DDP
- Payment
- T/T, L/C (>$50k)
