Hydraulic-drive spray machine for polyurea and polyurethane foam. 2-10 kg/min at the full 36 MPa working pressure, 26 kW total power with 22 kW heating, and support for up to 105 m of heated hose. Robust 310 kg build with an air-cooling system for sustained heavy-duty spraying. The manual-control hydraulic workhorse — full 36 MPa power without the PLC premium.
JYYJ-H-V6

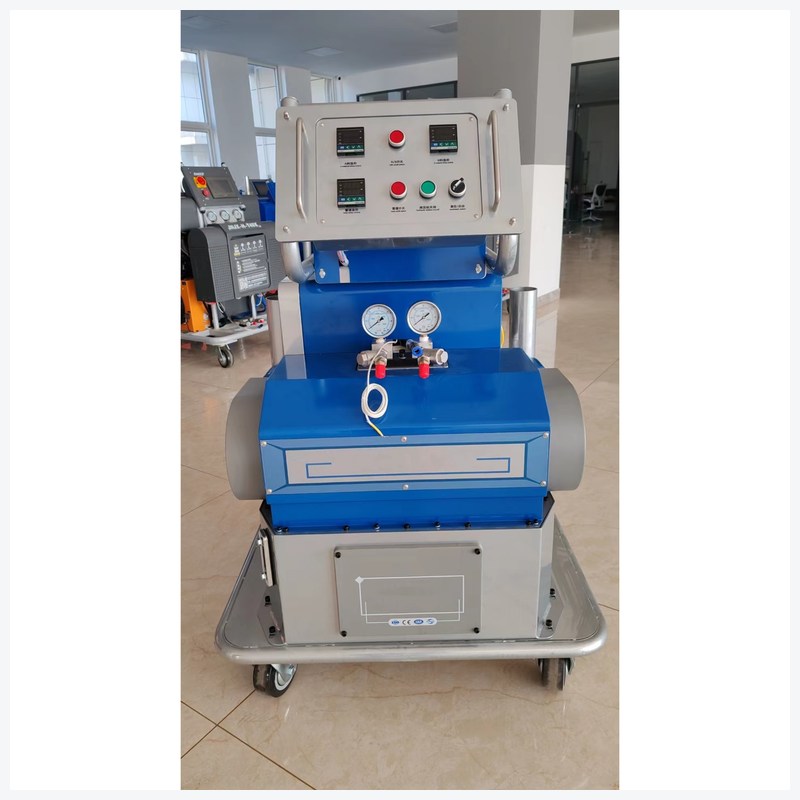

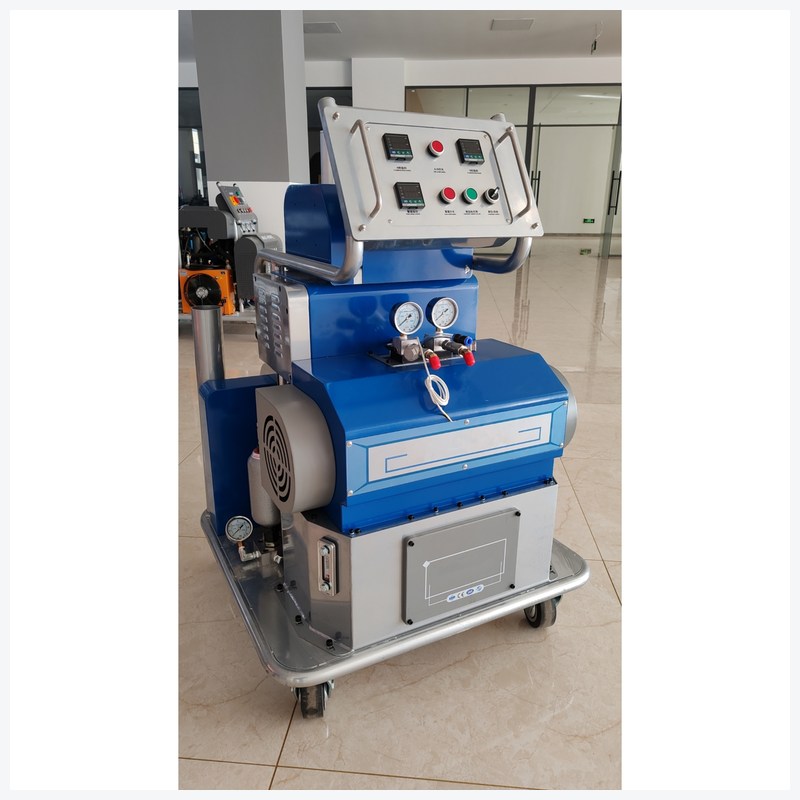

JYYJ-H-V6 Hydraulic Polyurea & Foam Spray Machine
Hydraulic-drive spray machine for polyurea and polyurethane foam. 2-10 kg/min at the full 36 MPa working pressure, 26 kW total power with 22 kW heating, and support for up to 105 m of heated hose. Robust 310 kg build with an air-cooling system for sustained heavy-duty spraying. The manual-control hydraulic workhorse — full 36 MPa power without the PLC premium.
- Hydraulic drive delivers the full 36 MPa working pressure
- Handles both polyurea coatings and PU foam insulation
- 22 kW heating with support for up to 105 m of heated hose
Technical Specifications
| Drive Type | Hydraulic |
| Max Output | 2-10 kg/min |
| Max Working Pressure | 36 MPa |
| Mixing Ratio | 1:1 (Fixed) |
| PLC Control | No (manual control) |
| Voltage | 380V 3-phase 50Hz |
| Total Power | 26 kW |
| Heating Power | 22 kW |
| Transformer Power | 3.5 kW |
| Heat Hose | 15 m / set (supports up to 105 m) |
| Net Weight | 310 kg |
| Applicable Materials | PU foam + polyurea |
Procurement Information
Price Tier
Industrial
Factory-direct. Exact FOB / CIF quote on request.
Lead Time
In-stock models within 1 week; custom builds on request.
Warranty & Spare Parts
5-year warranty (wear parts excluded). Spare parts air-freighted in 3-5 days.
Standard Package Includes
Main proportioning unit · Fusion-compatible spray gun · two transfer pumps · 15 m heated hose · tool kit · IPPC export wooden case
Voltage
Custom voltage available (e.g. 220V / 380V / 110V). Confirm your local voltage and phase.
Send us your country and local voltage to receive a matched configuration and landed-cost estimate.

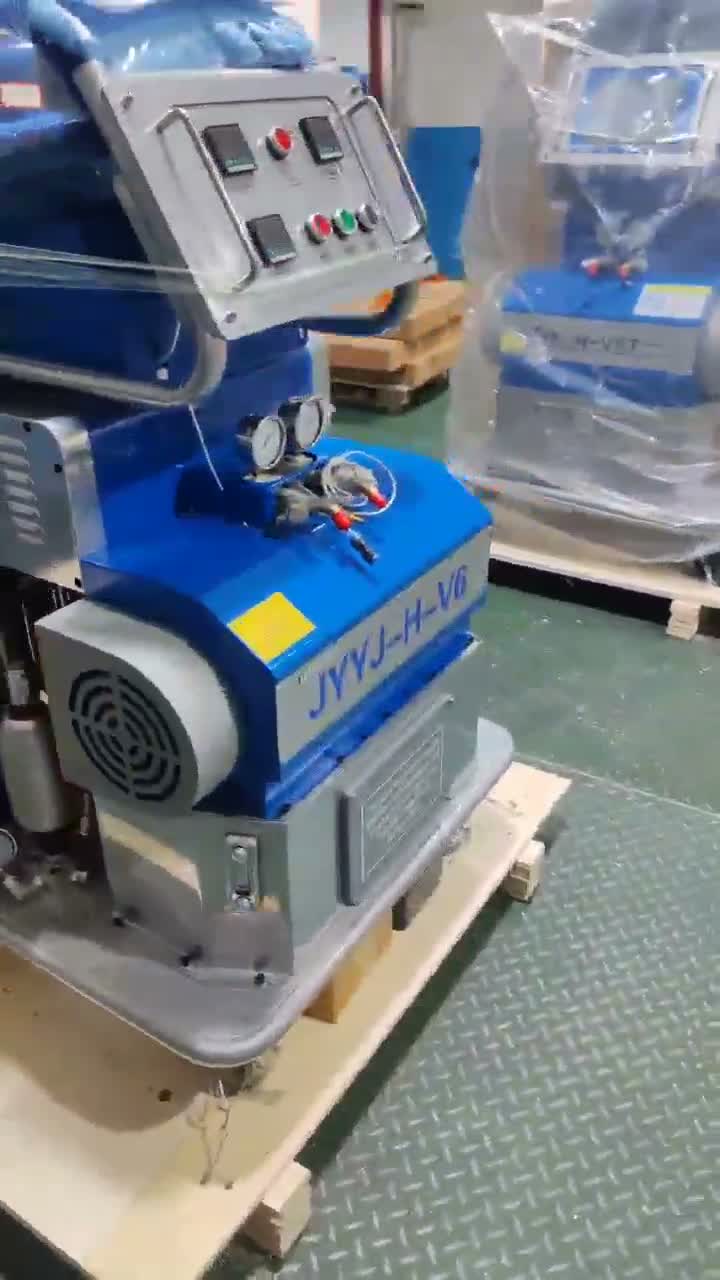

Get Price & ShippingInside the JYYJ-H-V6 Hydraulic Spray Machine
The JYYJ-H-V6 is a hydraulic-drive plural-component machine for polyurea and polyurethane foam spraying. It delivers a stable 2–10 kg/min at the full 36 MPa hydraulic working pressure, with 26 kW total power, 22 kW of heating, and support for up to 105 m of heated hose. A robust 310 kg build and an integrated air-cooling system let it run sustained heavy-duty production on commercial and industrial jobs.
It is the manual-control hydraulic workhorse — full 36 MPa power and the same proven drive as the PLC-equipped JYYJ-H-V6T, without the touchscreen premium. Below is a component-by-component look at what you are buying.
Machine Details — Component by Component

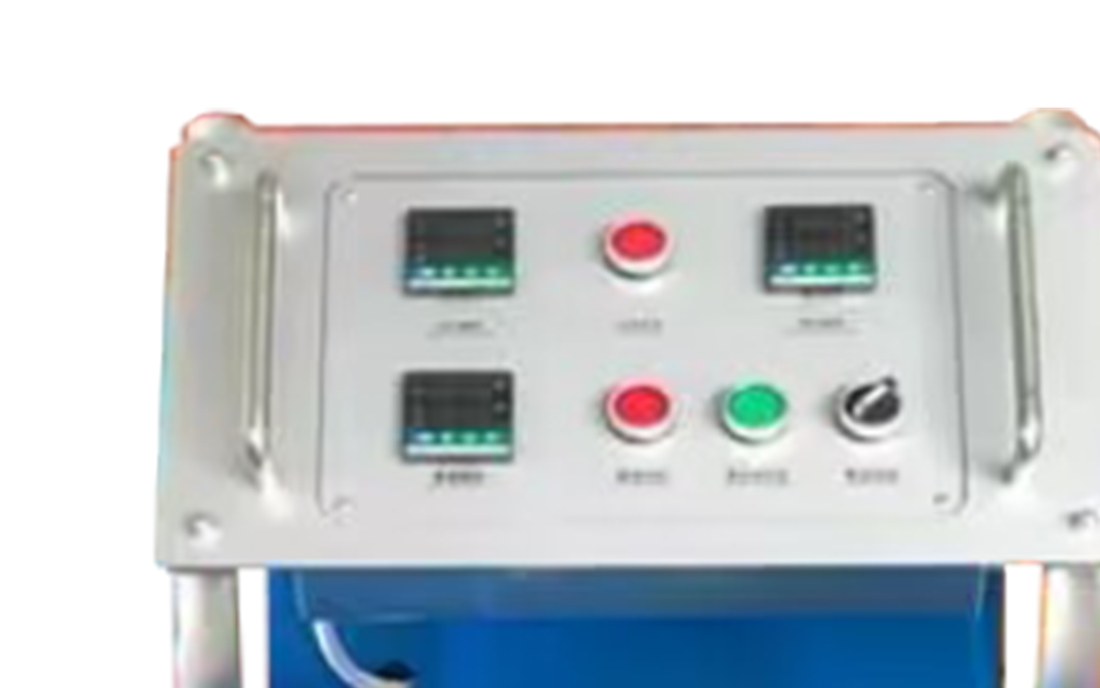

Manual Control Panel
Digital temperature controllers manage A-side, hose, and B-side heat, with component on/off switches, start/reset, and a dedicated emergency stop. Simple, reliable manual control keeps high-pressure operation safe and repeatable.

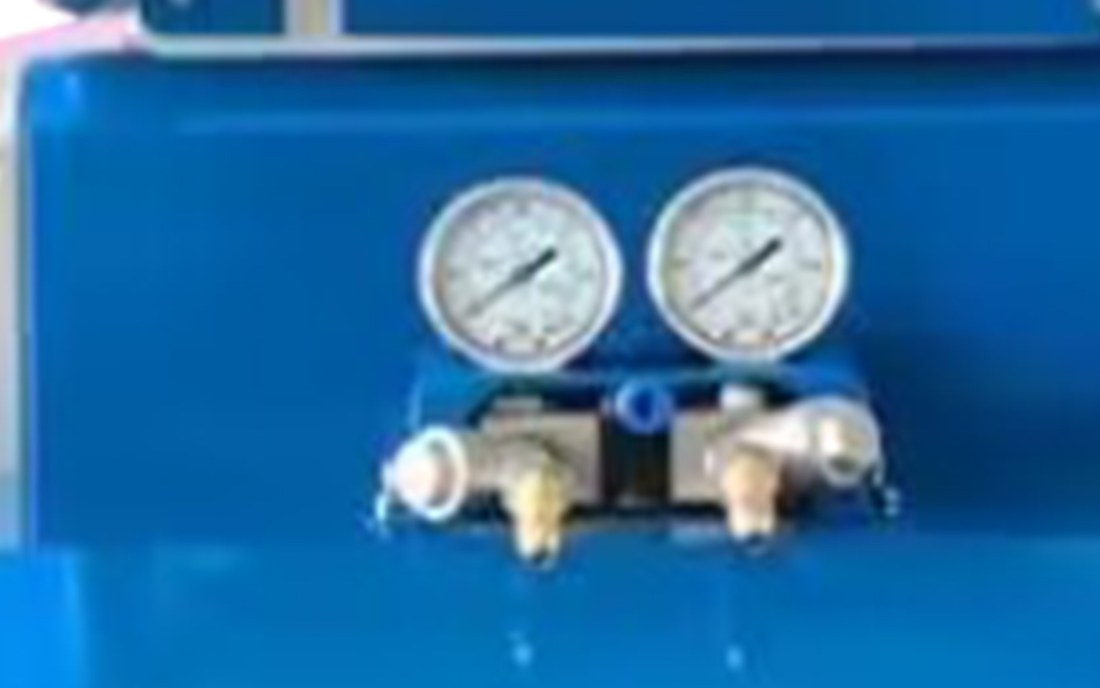

Dual High-Pressure Gauges
Separate A and B gauges let the operator confirm balanced pressure up to 36 MPa before and during spraying — the key to a uniform, defect-free polyurea coating or foam.

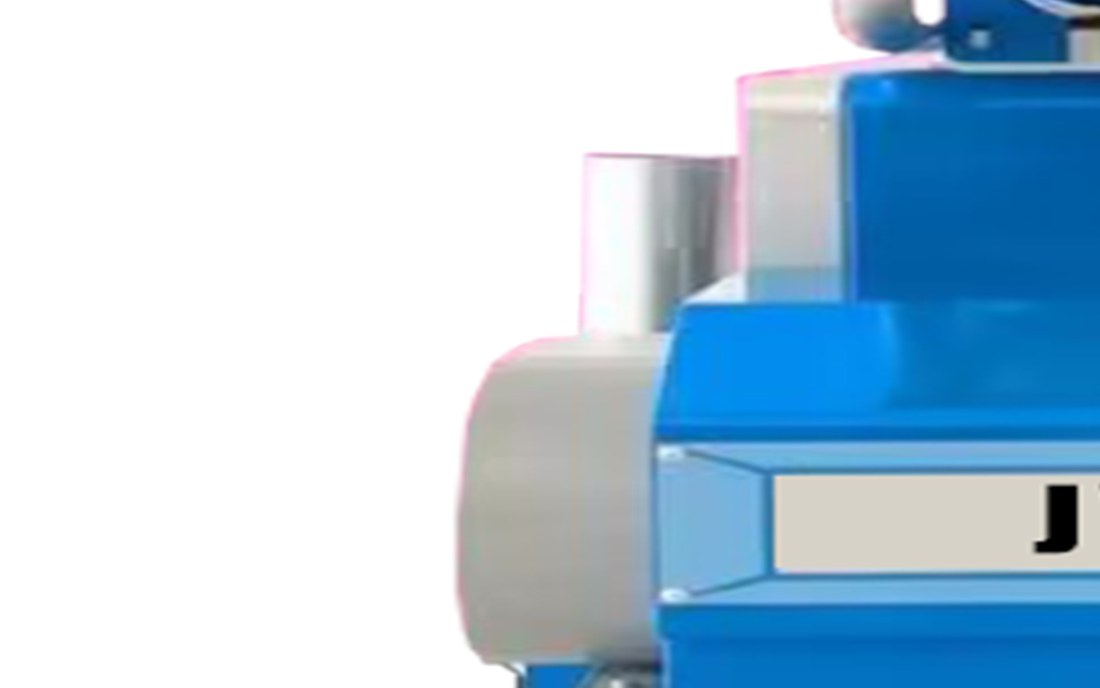

Air-Cooling System
An integrated air-cooling system sheds heat from the motor and hydraulic pump, so the V6 can run sustained heavy-duty production without overheating — essential for long commercial spray days.

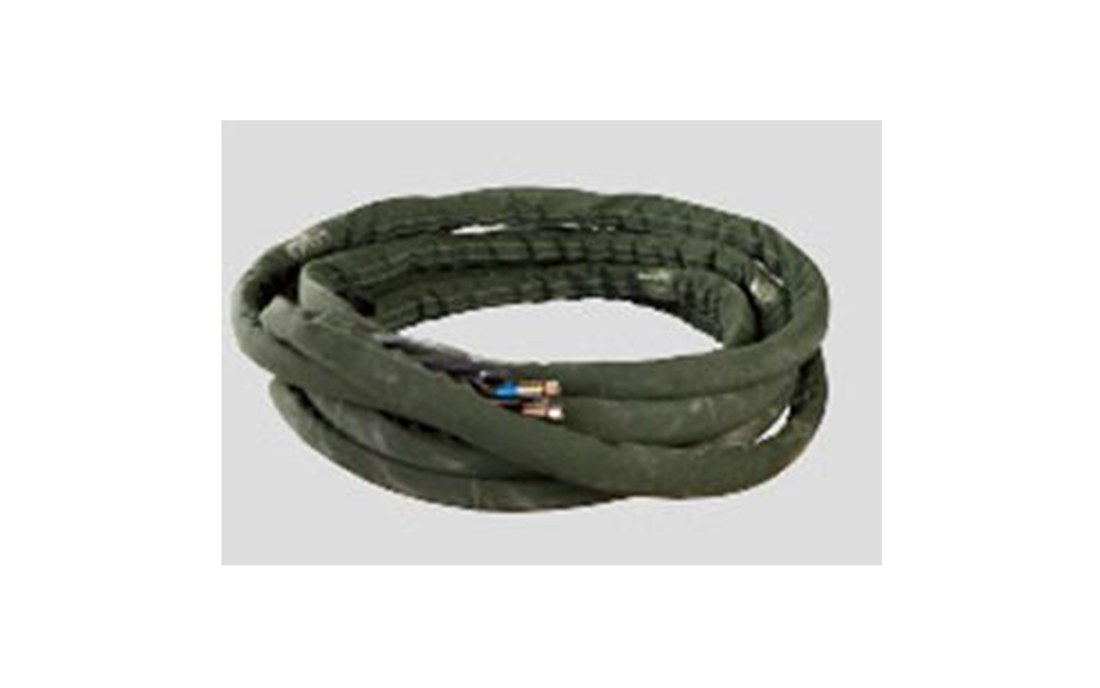

Heated Hose (up to 105 m)
The 22 kW heating system warms the chemicals in the machine and along the heated hose — supported to 105 m — holding viscosity all the way to the gun for clean, consistent spraying even in cold-weather work.

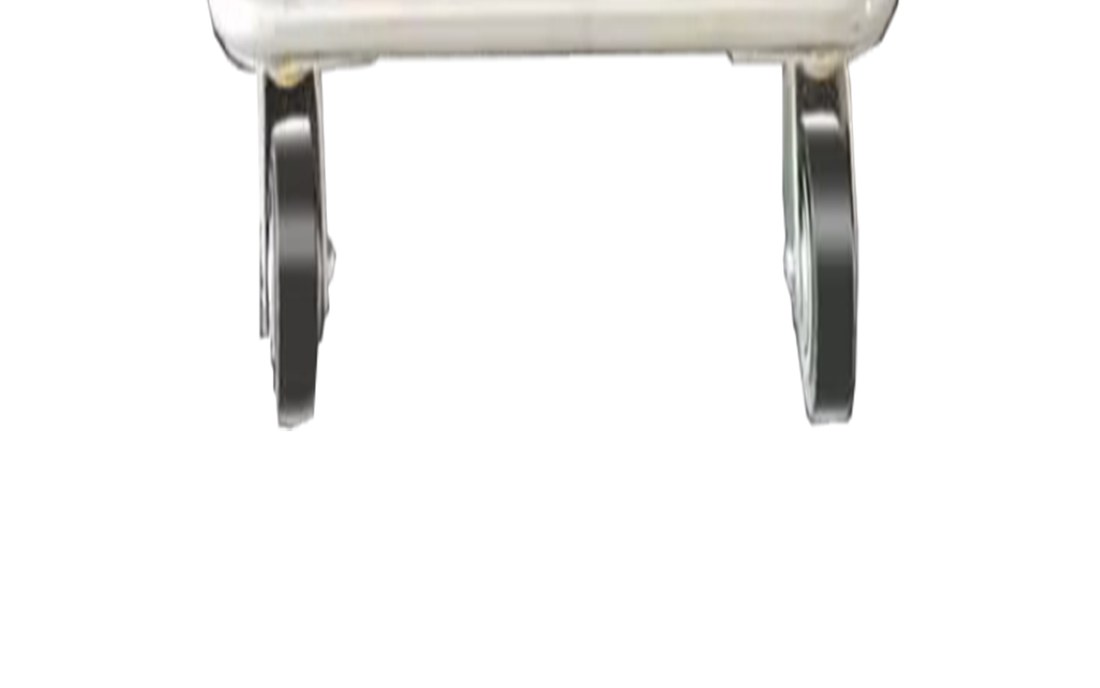

Mobile Welded Base
The 310 kg hydraulic unit sits on a welded steel base with industrial casters, so a crew can roll the machine around a large site, yet it stays planted during high-pressure spraying.
How the JYYJ-H-V6 Works
An electric motor drives a hydraulic system that powers the proportioning pump, building spray pressure to 36 MPa at a fixed 1:1 ratio. The A and B components are heated to temperature and pushed down the heated hose; at the gun they mix and atomise, leaving expanding foam or an even polyurea coating that cures in seconds. The air-cooling system keeps the motor and pump in their operating range through long production runs.
Who the JYYJ-H-V6 Is For
The V6 suits contractors and manufacturers who want full 36 MPa hydraulic power for commercial spray foam insulation and polyurea coating, with straightforward manual control. For touchscreen automation, step up to the JYYJ-H-V6T; for an entry-level hydraulic, see the JYYJ-H600; for pneumatic options, compare the JYYJ-Q300.
Not sure whether the V6 matches your output, voltage, or chemical system? Talk to our engineers and we will confirm the right configuration before you order.
Key Features
- Hydraulic drive delivers the full 36 MPa working pressure
- Handles both polyurea coatings and PU foam insulation
- 22 kW heating with support for up to 105 m of heated hose
- Air-cooling system protects the motor and pump for sustained runs
- Manual control — full hydraulic power without the PLC premium
- Robust 310 kg build on a mobile welded base with casters
Typical Applications
- Commercial spray foam insulation
- Polyurea waterproofing membranes
- Tank and pipe lining
- Industrial floor and deck coatings
- Cold storage insulation
JYYJ-H-V6 in Action
Representative projects using this machine. Not customer-specific unless noted.
Industrial Equipment Operator · 1,800 m² (floor + walls)
Industrial Basement Waterproofing · Minsk
Underground equipment vault required chemical-resistant waterproofing. Pure polyurea cured in 30 seconds, returning facility to service same-day.
Commercial Agricultural Fleet Operator · 80 vehicles · ~480 m² total bed area
80-Truck Pickup Bed Liner Polyurea Coating · Monterrey
Commercial agricultural fleet of 80 pickup trucks coated with 4mm polyurea bed liners. Eliminated cargo damage from impact, fertilizer chemicals, salt corrosion. Per-truck application <2 hours, 5+ year service life.
Copper Mining & Concentrator Operation · 14 transfer chutes + 6 hoppers · ~360 m²
Copper Mine Transfer Chute Polyurea Wear Lining · Antofagasta
Copper concentrator transfer chutes and hoppers re-lined with 6mm spray polyurea to resist abrasion from coarse ore. Replaced bolt-on AR steel plate, cut changeout downtime, and extended wear-liner life 3x in a high-impact materials-handling circuit.
Compatible Materials — One-Stop Supply
Pioneer Spray supplies both machines AND ready-to-ship raw materials. Choose any A-component + B-component combination below.
A Proprietary A-component (Pioneer in-house formulation)
- ● All-Water blowing agent (zero-ODP, zero-GWP)
- ● HFO blowing agent (low GWP < 1, EU F-Gas compliant)
- ● Closed-cell rigid density 30-50 kg/m³
- ● Open-cell half-pound density 8-12 kg/m³
- ● Custom formulation on request
B B-component (Pioneer authorized distributor · 4 brands)
- ● BASF (Germany) — PU industry leader
- ● Dow (USA) — chemical innovation
- ● Huntsman (USA) — MDI specialist
- ● Wanhua Chemical (China) — #1 MDI capacity globally
What's Included & Shipping
Standard Configuration
- Mainframe× 1
- Spray gun (self-cleaning)× 1
- Transfer pump× 2
- Heated hose (15m standard)× 1
- Transfer pump hose× 2
- Whip hose× 2
- Air pipe× 1
- Tools and spare parts box× 1
- English user manual× 1
Heated hose extendable up to 60m. Optional: extra spray gun, PLC upgrade, voltage conversion.
Shipping & Logistics
- Packaging
- Wooden crate, export-grade
- Origin port
- Shanghai / Ningbo
- Russia / CIS
- ~30 days (rail/road)
- LATAM (sea)
- ~40-50 days
- Europe (sea)
- ~35-40 days to Le Havre
- Middle East
- ~20-25 days
- Incoterms
- FOB / CIF / DDP
- Payment
- T/T, L/C

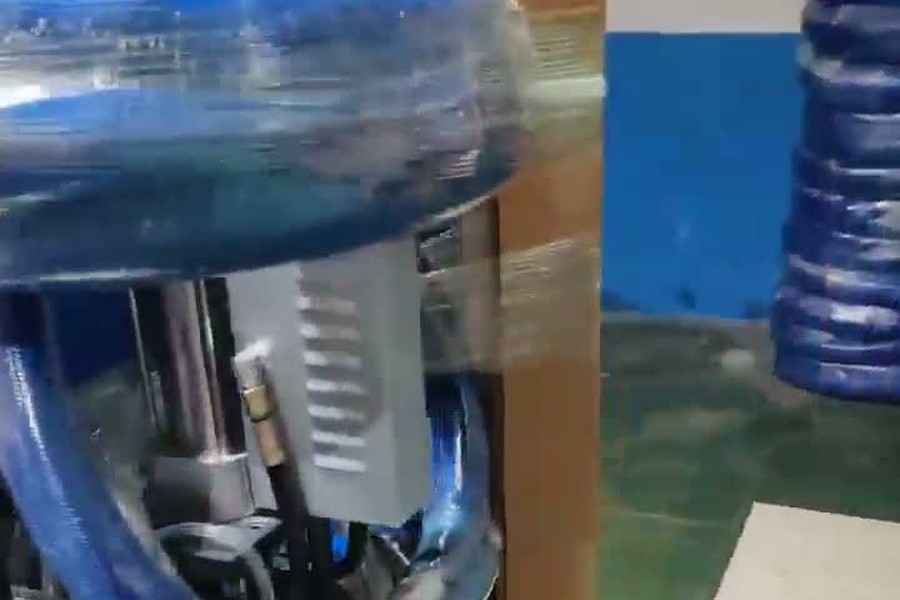

Export-Grade Wooden Crate Packing
Every JYYJ-H-V6 is shrink-wrapped, foam-protected, and secured on a pallet inside a sturdy export-grade wooden crate — guarding the machine and its controls against impact and moisture across long sea, rail, and road journeys.
- ✓ Fumigation-free plywood crate, stacking-safe for containers
- ✓ Controls, gauges and pump shrink-wrapped & cushioned
- ✓ Delivered worldwide under FOB / CIF / DDP terms
Frequently Asked Questions
Why hydraulic for polyurea?
Does polyurea need special hose/temperature?
What information do you need for an accurate quotation?
