JYYJ-H600 Hydraulic PU Spray Machine (JYYJ-H600) is a CE/ISO 9001-certified hydraulic pu spray machines manufactured by Pioneer Spray. Key specs: Drive Type Hydraulic, Max Output 2-12 kg/min, Max Working Pressure 36 MPa.
JYYJ-H600

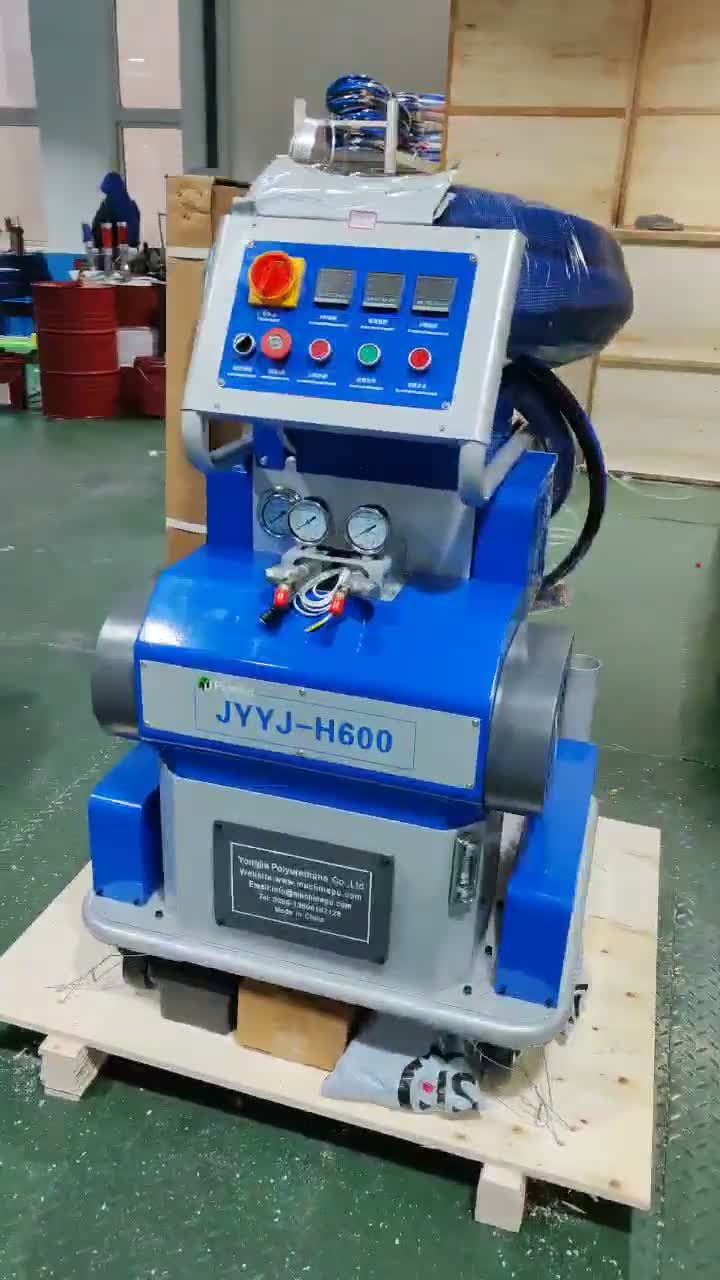

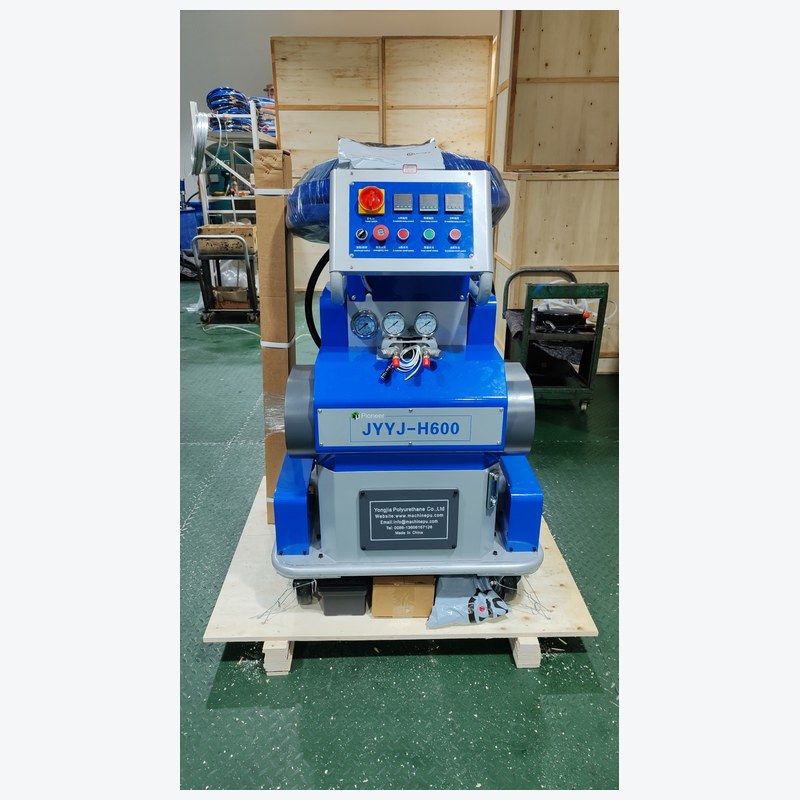

JYYJ-H600 Hydraulic PU Spray Machine
Entry-level hydraulic spray machine — the gateway to professional-grade pressure. 2-12 kg/min at 36 MPa with 6-18 MPa hydraulic system pressure. Compatible with both polyurethane foam and polyurea coatings. Air-cooling system protects motor and pump for sustained heavy-duty operation.
- 36 MPa — true professional-grade pressure (vs. 25 MPa pneumatic ceiling)
- Polyurea-capable: handles both PU foam and polyurea chemistry
- Air-cooling system reduces oil temperature, protects motor and pump
Technical Specifications
| Drive Type | Hydraulic |
| Max Output | 2-12 kg/min |
| Max Working Pressure | 36 MPa |
| Hydraulic System Pressure | 6-18 MPa |
| Mixing Ratio | 1:1 (Fixed) |
| PLC Control | No |
| Voltage | 380V 3-phase 4-wire 50Hz |
| Heating Power | 26 kW / 22 kW |
| Air Source | 0.5-0.8 MPa ≥ 0.5 m³/min |
| Heat Hose | 15 m / set |
| Net Weight | ~356 kg |
| Applicable Materials | PU foam + polyurea |
Inside the JYYJ-H600 Hydraulic Spray Machine
The JYYJ-H600 is the gateway to professional hydraulic spraying. Where pneumatic machines top out around 30 MPa, the H600 uses a hydraulic drive to deliver a stable 2–12 kg/min at 36 MPa, with 6–18 MPa hydraulic system pressure — the consistency and power needed for high-output spray polyurethane foam insulation and polyurea coating on commercial and industrial jobs. An integrated air-cooling system protects the motor and pump for sustained, heavy-duty operation.
It handles both polyurethane foam and polyurea, and ships as a complete, ready-to-spray package on a heavy-duty mobile frame. Below is a component-by-component look at what you are buying.
Machine Details — Component by Component

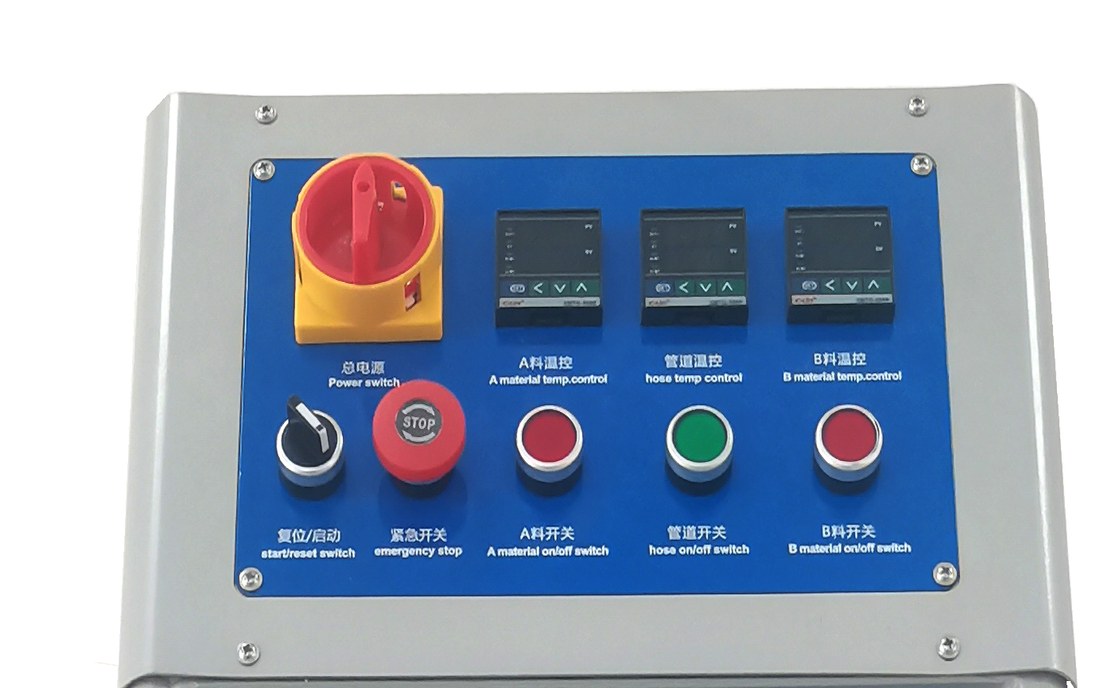

Integrated Control Panel
Independent digital temperature controllers manage A-side, hose, and B-side heat, with component on/off switches, start/reset, and a dedicated emergency stop. Clear control keeps high-pressure operation safe and repeatable.

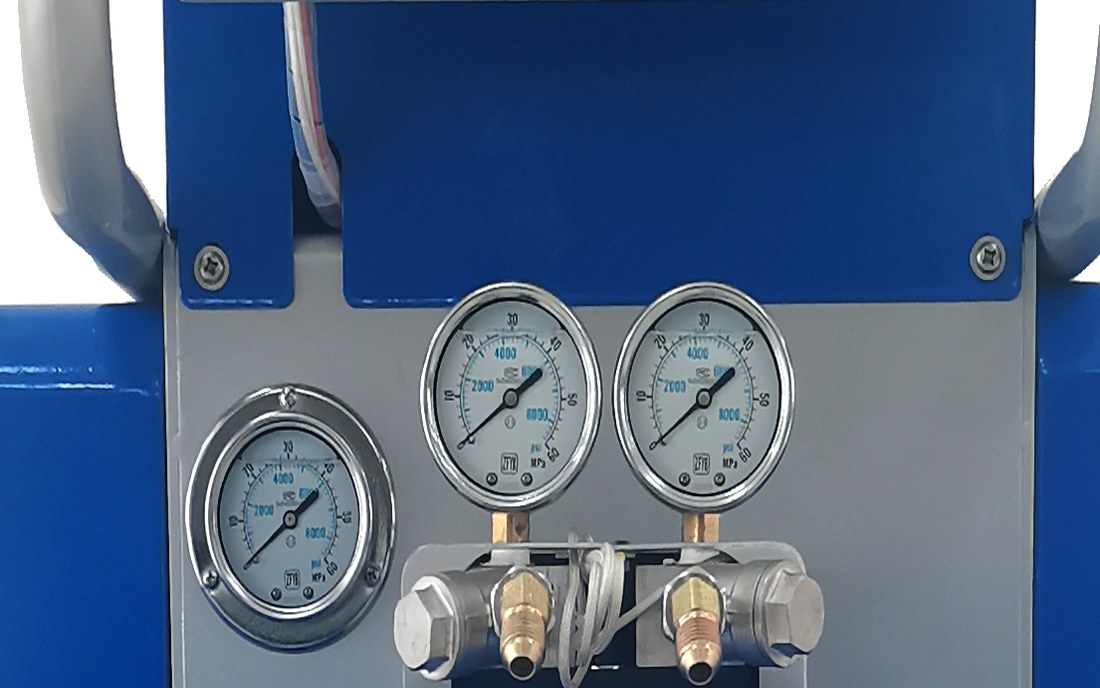

Dual High-Pressure Gauges
Separate A and B gauges let the operator confirm balanced pressure up to 36 MPa before and during spraying — the key to a uniform, defect-free foam or coating at hydraulic output rates.

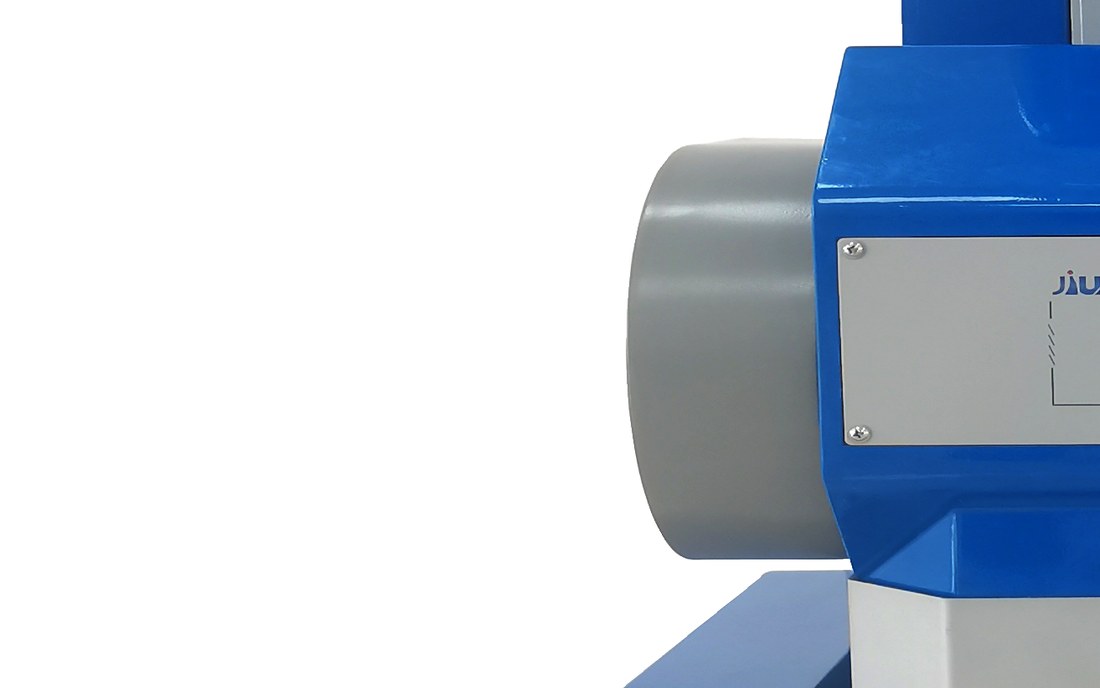

Air-Cooling System
An integrated air-cooling system sheds heat from the motor and hydraulic pump, so the H600 can run sustained heavy-duty production without overheating — essential for long commercial and industrial spray days.

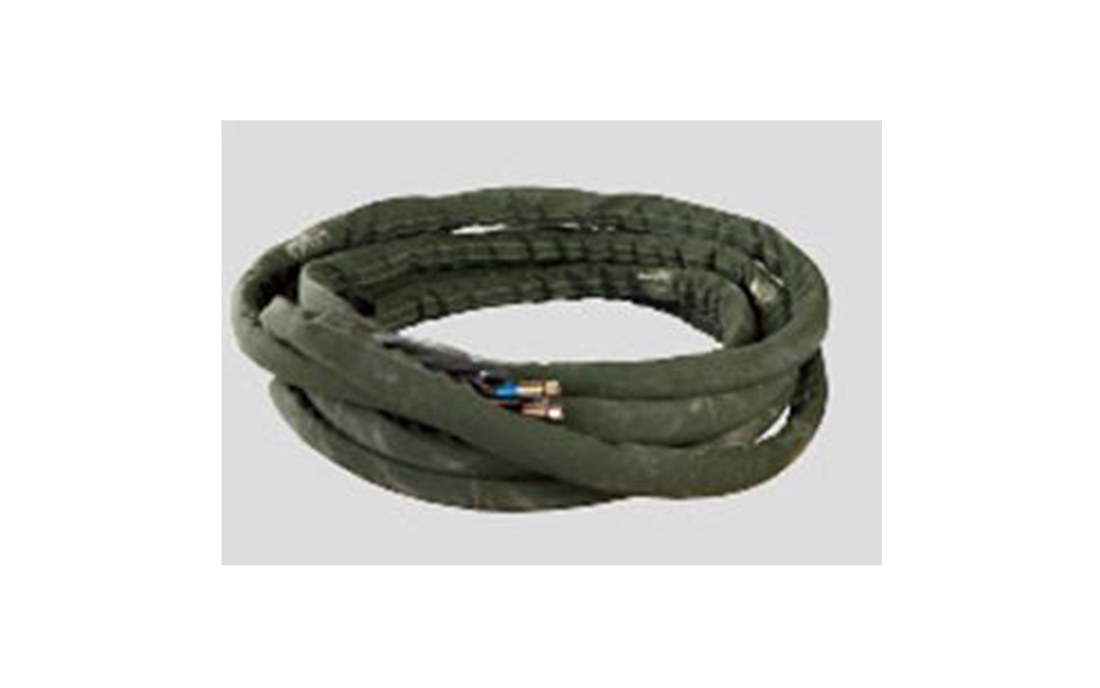

Heated Hose
The heating system warms the chemicals in the machine and along the heated hose, holding viscosity all the way to the gun. Consistent temperature is what lets the H600 spray clean foam and polyurea even in cold-weather work.

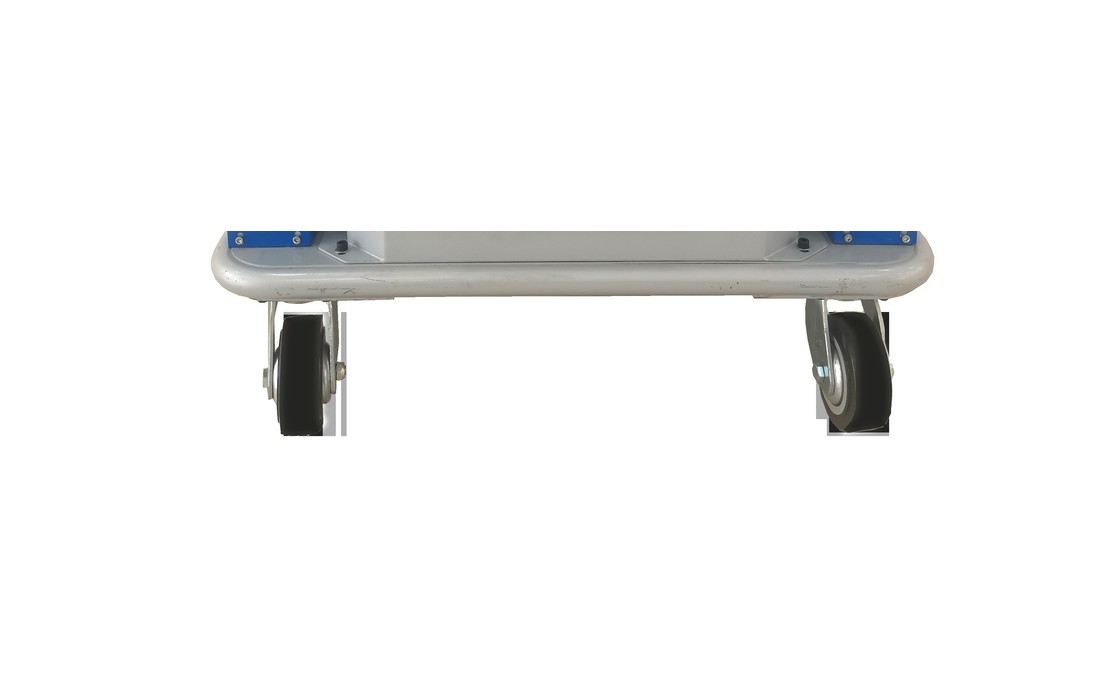

Heavy-Duty Mobile Base
The hydraulic unit sits on a welded steel base with industrial casters, so a crew can roll the machine around a large site or in and out of a van, yet it stays planted during high-pressure spraying.
How the JYYJ-H600 Works
An electric motor drives a hydraulic system (6–18 MPa) that powers the proportioning pump, building spray pressure to 36 MPa. The A and B components are heated to temperature and pushed down the heated hose; at the gun they mix and atomise, leaving expanding foam or an even coating that cures in seconds. The air-cooling system keeps the motor and pump in their operating range through long production runs.
Who the JYYJ-H600 Is For
The H600 is built for contractors and manufacturers stepping up to hydraulic power for higher output and full 36 MPa pressure on commercial spray foam and polyurea coating projects. For pneumatic entry points, compare the JYYJ-3H and JYYJ-Q300; for the flagship industrial hydraulic, see the JYYJ-H-V8T.
Not sure whether the H600 matches your output, voltage, or chemical system? Talk to our engineers and we will confirm the right configuration before you order.
Key Features
- 36 MPa — true professional-grade pressure (vs. 25 MPa pneumatic ceiling)
- Polyurea-capable: handles both PU foam and polyurea chemistry
- Air-cooling system reduces oil temperature, protects motor and pump
- Booster pump ensures pressure stability for both A and B materials
- Welded seamless steel main frame with plastic-spray protection
- 380V heating warms materials for sub-zero work
- Variable-ratio feed pump handles high-viscosity materials in winter
Typical Applications
- Commercial and industrial insulation
- Cold storage and warehouse refrigeration
- Pipeline waterproofing
- Light polyurea coating
- High-density closed-cell foam applications
JYYJ-H600 in Action
Representative projects using this machine. Not customer-specific unless noted.
Cold Chain Logistics Fleet · 15 truck bodies (~800 m² total)
Refrigerated Truck Body Insulation · Ho Chi Minh City
Fleet of 15 reefer truck bodies insulated with 75mm closed-cell PU foam. Seamless thermal envelope eliminated thermal bridges at ribs and door seals.
Industrial Dairy Farm · 3,200 m² (cattle housing + milk parlor)
6,000-Head Dairy Cattle Barn Insulation · Volgograd
Modern dairy farm cattle housing with 75mm closed-cell PU foam. Winter feed -12%, milk yield stabilized across -30°C winters, eliminated condensation respiratory issues.
Configurations Available
Same JYYJ-H600 series with different specs. Contact for custom config.
| Model | Key Difference |
|---|---|
| JYYJ-H600D | 7 m heat hose, timing/digital counting variant |
| JYYJ-H600T | Lower output 2-8 kg/min for finer control |
| JYYJ-H600K | Adjustable mixing ratio 1:1~1:2 |
| JYYJ-H-V3 | Hydraulic V3 chassis with spray gun configuration |
| JYYJ-H-V3D | Hydraulic V3 with casting (pouring) gun nozzle — same machine, different gun |
Compatible Materials — One-Stop Supply
Pioneer Spray supplies both machines AND ready-to-ship raw materials. Choose any A-component + B-component combination below.
A Proprietary A-component (Pioneer in-house formulation)
- ● All-Water blowing agent (zero-ODP, zero-GWP)
- ● HFO blowing agent (low GWP < 1, EU F-Gas compliant)
- ● Closed-cell rigid density 30-50 kg/m³
- ● Open-cell half-pound density 8-12 kg/m³
- ● Custom formulation on request
B B-component (Pioneer authorized distributor · 4 brands)
- ● BASF (Germany) — PU industry leader
- ● Dow (USA) — chemical innovation
- ● Huntsman (USA) — MDI specialist
- ● Wanhua Chemical (China) — #1 MDI capacity globally
What's Included & Shipping
Standard Configuration
- Mainframe× 1
- Spray gun (self-cleaning)× 1
- Transfer pump× 2
- Heated hose (15m standard)× 1
- Transfer pump hose× 2
- Whip hose× 2
- Air pipe× 1
- Tools and spare parts box× 1
- English user manual× 1
Heated hose extendable up to 60m. Optional: extra spray gun, PLC upgrade, voltage conversion.
Shipping & Logistics
- Packaging
- Wooden crate, export-grade
- Origin port
- Shanghai / Ningbo
- Russia / CIS
- ~30 days (rail/road)
- LATAM (sea)
- ~40-50 days
- Europe (sea)
- ~35-40 days to Le Havre
- Middle East
- ~20-25 days
- Incoterms
- FOB / CIF / DDP
- Payment
- T/T, L/C (>$50k)

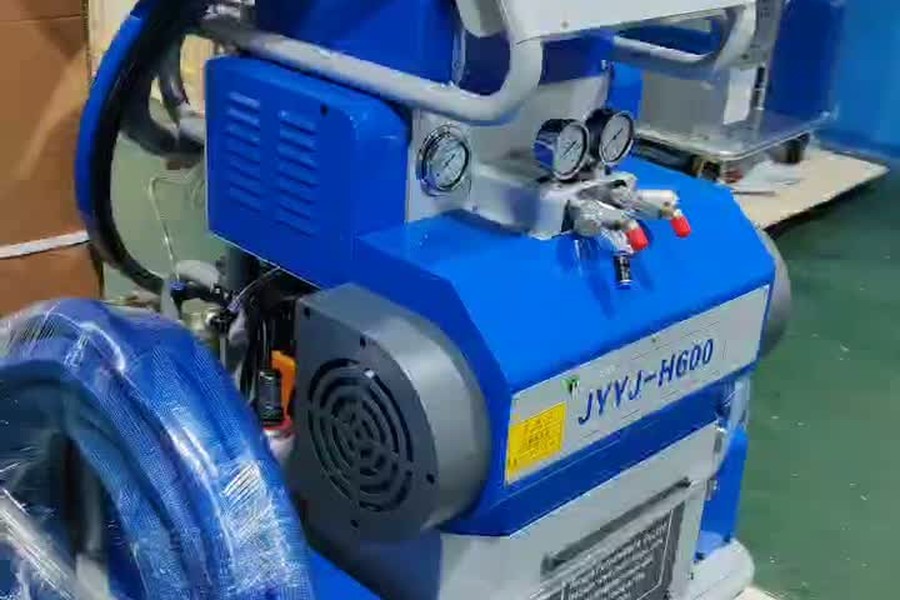

Export-Grade Wooden Crate Packing
Every JYYJ-H600 is shrink-wrapped, foam-protected, and secured on a pallet inside a sturdy export-grade wooden crate — guarding the machine and its controls against impact and moisture across long sea, rail, and road journeys.
- ✓ Fumigation-free plywood crate, stacking-safe for containers
- ✓ Controls, gauges and pump shrink-wrapped & cushioned
- ✓ Delivered worldwide under FOB / CIF / DDP terms
