JYYJ-H-V8T Premium Hydraulic + 10-inch PLC + Low-Temp Protection (JYYJ-H-V8T) is a CE/ISO 9001-certified hydraulic pu spray machines manufactured by Pioneer Spray. Key specs: Drive Type Hydraulic, Max Output 2-15 kg/min, Max Working Pressure 36 MPa.
JYYJ-H-V8T

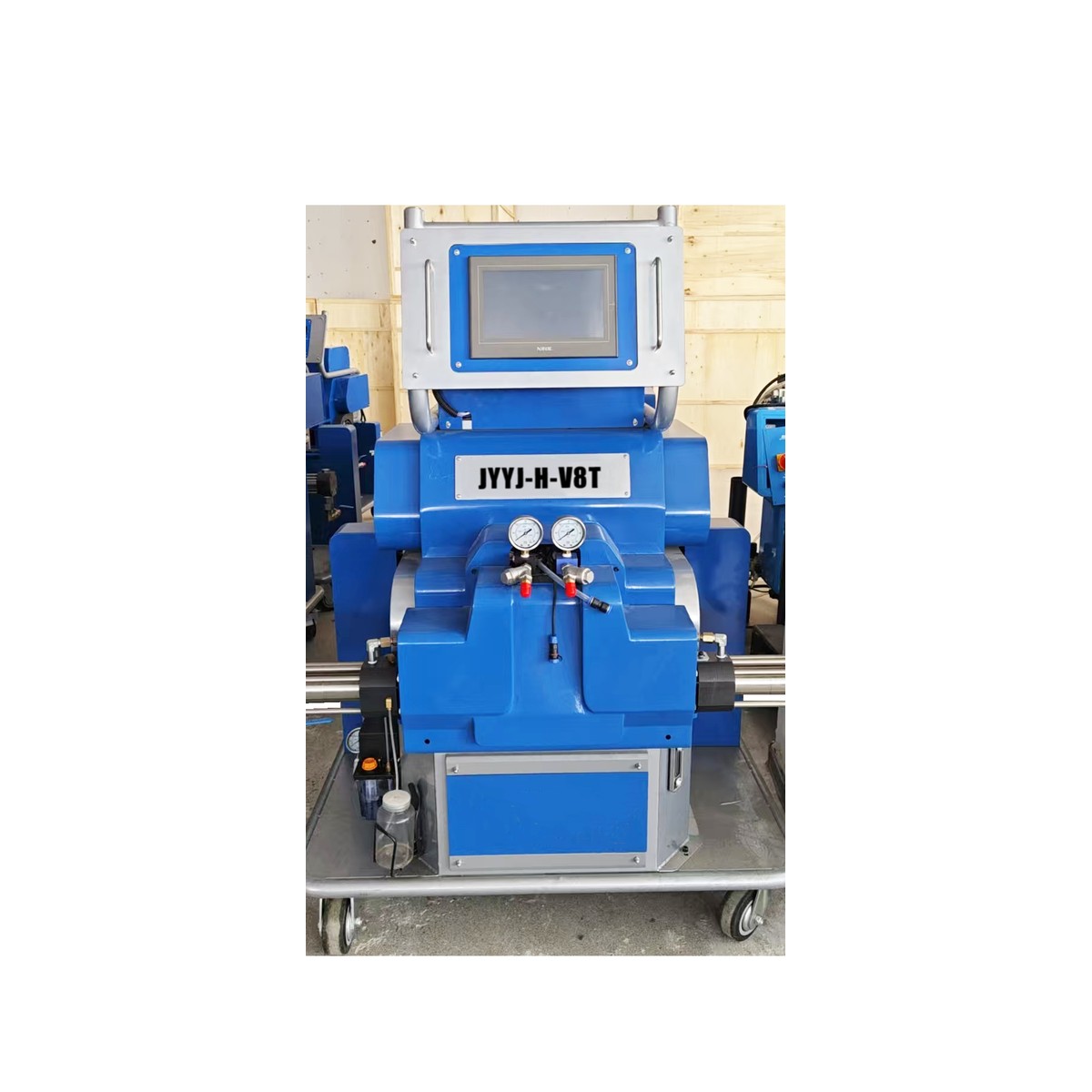

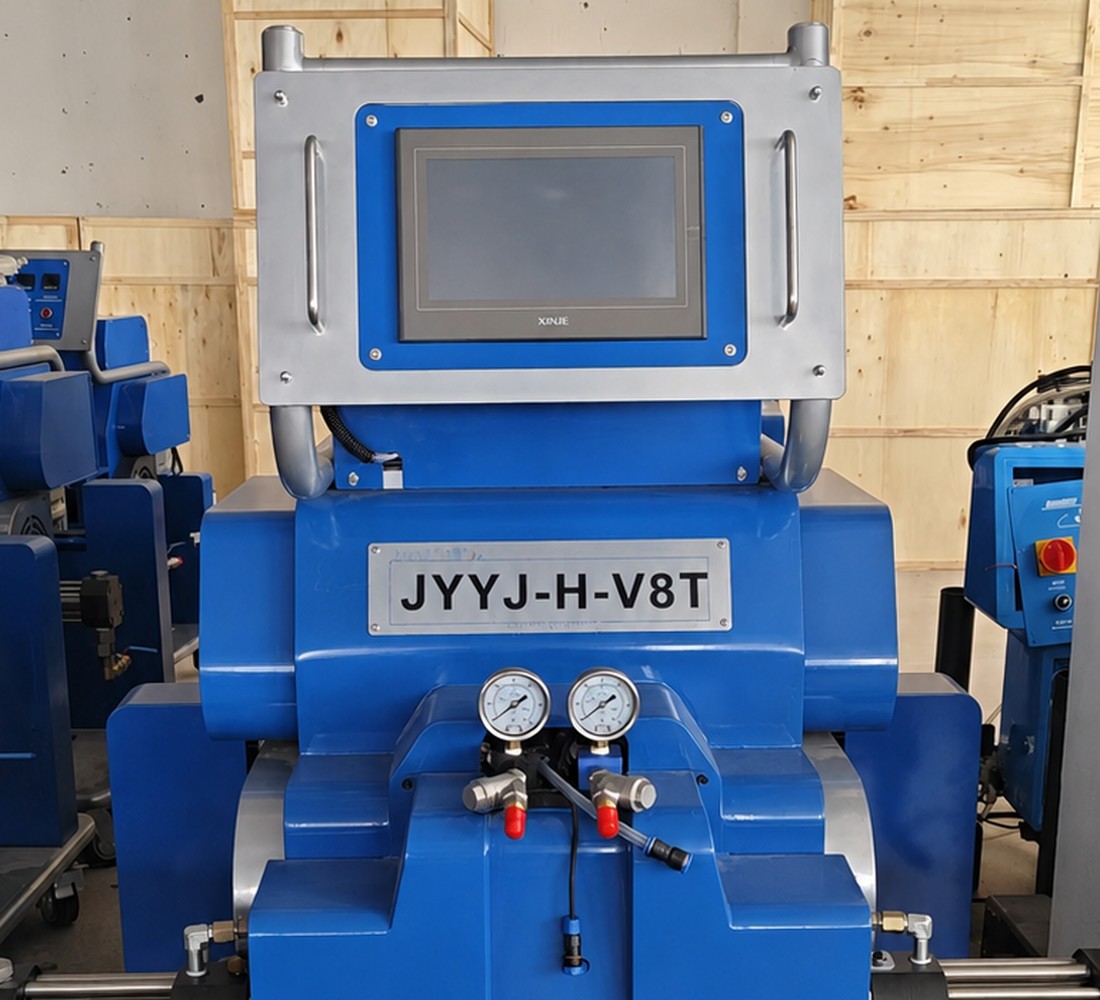

JYYJ-H-V8T Premium Hydraulic + 10-inch PLC + Low-Temp Protection
Pioneer's top-tier flagship — the highest-output PLC-controlled spray machine in the JYYJ line. 2-15 kg/min at 36 MPa with 10-inch PLC touchscreen, one-click start/stop operation, and low-temperature protection that prevents incomplete mixing in cold conditions. Flat-mounted booster pump design reduces footprint while maintaining the highest output. Ideal for the most demanding industrial polyurea and polyurethane projects.
Technical Specifications
| Drive Type | Hydraulic |
| Max Output | 2-15 kg/min |
| Max Working Pressure | 36 MPa |
| Max Bilateral Pressure | 18 MPa |
| Mixing Ratio | 1:1 (Fixed) |

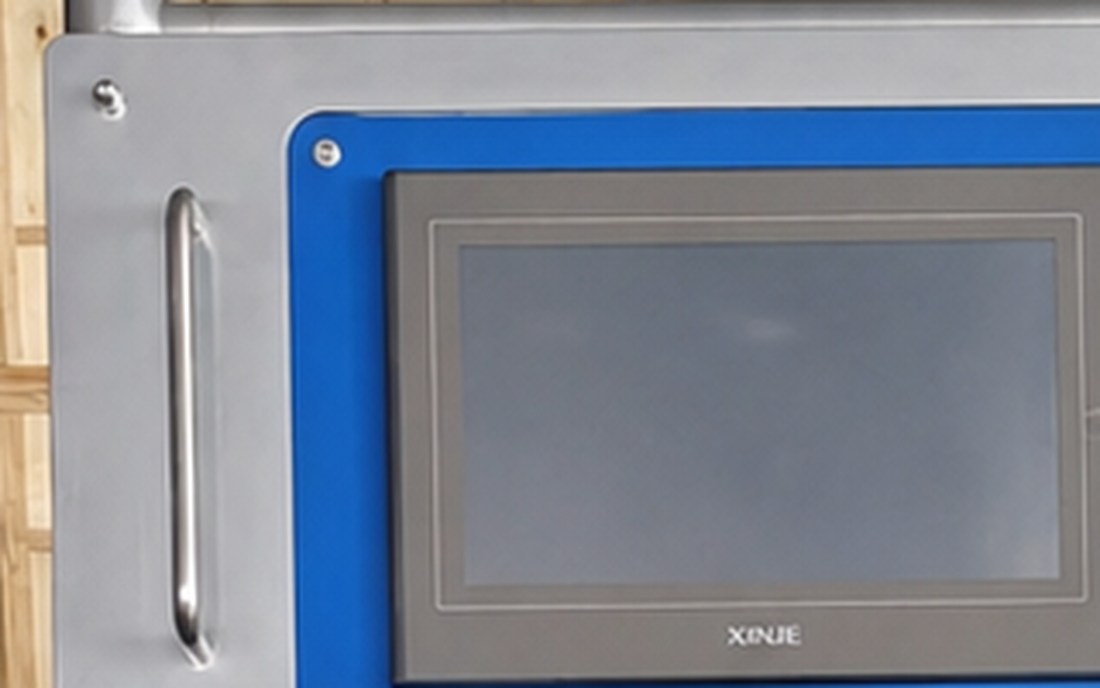

| PLC Control | 10-inch Touchscreen + One-Click Start/Stop |
| Voltage | 380V 3-phase 3-wire 50Hz |
| Total Power | 32 kW |
| Heating Power | 26 kW |
| Heating Temperature Range | 0~80°C |
| Heat Hose | 15 m (standard) |
| Net Weight | 338 kg |
| Dimensions | 1140 × 900 × 1530 mm |
| Applicable Materials | All PU foam + polyurea + specialty formulations |
Key Features
- Highest output (2-15 kg/min) + highest tier PLC + premium controls
- 10-inch PLC touchscreen with intelligent control programming
- One-click start/stop — operate without specialist training
- Low-temperature protection prevents mixing failures in cold environments
- High-power heating brings raw materials to operating temperature rapidly
- Flat-mounted booster pump reduces machine footprint and weight
- Hydraulic stability — no seasonal performance variation
- Ideal Graco Reactor 2 E-30 replacement at 1/5 the price
Typical Applications
- Flagship industrial polyurea coating
- Nationwide cold-chain logistics infrastructure
- Petrochemical facility insulation
- Large-scale military / infrastructure projects
- Export-tier professional contractor fleets
JYYJ-H-V8T in Action
Representative projects using this machine. Not customer-specific unless noted.
Industrial Equipment Operator · 1,800 m² (floor + walls)
Industrial Basement Waterproofing · Minsk
Underground equipment vault required chemical-resistant waterproofing. Pure polyurea cured in 30 seconds, returning facility to service same-day.
Petroleum Storage Operator · 40m × 12m (~1,400 m²)
Petroleum Storage Tank Lining · Abu Dhabi
40m diameter petroleum tank interior lining. Polyurea with NSF-compliant formulation. Return to service in 18 hours.
Industrial Manufacturing Facility · 6,000 m²
Industrial Facility Flooring Coating · Riyadh
Manufacturing facility 6,000m² floor with polyurea topcoat. Abrasion + chemical resistant high-gloss finish. Production downtime limited to weekend.
Configurations Available
Same JYYJ-H-V8T series with different specs. Contact for custom config.
| Model | Key Difference | Price Reference |
|---|---|---|
| JYYJ-H-V8 | Button-control version (no 10-inch PLC, no low-temperature protection) — same 2-15 kg/min output at lower cost | Contact |
Compatible Materials — One-Stop Supply
Pioneer Spray supplies both machines AND ready-to-ship raw materials. Choose any A-component + B-component combination below.
A Proprietary A-component (Pioneer in-house formulation)
- ● All-Water blowing agent (zero-ODP, zero-GWP)
- ● HFO blowing agent (low GWP < 1, EU F-Gas compliant)
- ● Closed-cell rigid density 30-50 kg/m³
- ● Open-cell half-pound density 8-12 kg/m³
- ● Custom formulation on request
B B-component (Pioneer authorized distributor · 4 brands)
- ● BASF (Germany) — PU industry leader
- ● Dow (USA) — chemical innovation
- ● Huntsman (USA) — MDI specialist
- ● Wanhua Chemical (China) — #1 MDI capacity globally
What's Included & Shipping
Standard Configuration
- Mainframe× 1
- Spray gun (self-cleaning)× 1
- Transfer pump× 2
- Heated hose (15m standard)× 1
- Transfer pump hose× 2
- Whip hose× 2
- Air pipe× 1
- Tools and spare parts box× 1
- English user manual× 1
Heated hose extendable up to 60m. Optional: extra spray gun, PLC upgrade, voltage conversion.
Shipping & Logistics
- Packaging
- Wooden crate, export-grade
- Origin port
- Shanghai / Ningbo
- Russia / CIS
- ~30 days (rail/road)
- LATAM (sea)
- ~40-50 days
- Europe (sea)
- ~35-40 days to Le Havre
- Middle East
- ~20-25 days
- Incoterms
- FOB / CIF / DDP
- Payment
- T/T, L/C (>$50k)
Frequently Asked Questions
What is the JYYJ-H-V8T Premium Hydraulic + 10-inch PLC + Low-Temp Protection used for?
What are the specifications of JYYJ-H-V8T?
Does the JYYJ-H-V8T Premium Hydraulic + 10-inch PLC + Low-Temp Protection come with certifications?
How can I get a quote for the JYYJ-H-V8T Premium Hydraulic + 10-inch PLC + Low-Temp Protection?
Get a Quote for JYYJ-H-V8T
We'll respond within 24 hours with pricing and technical details.
