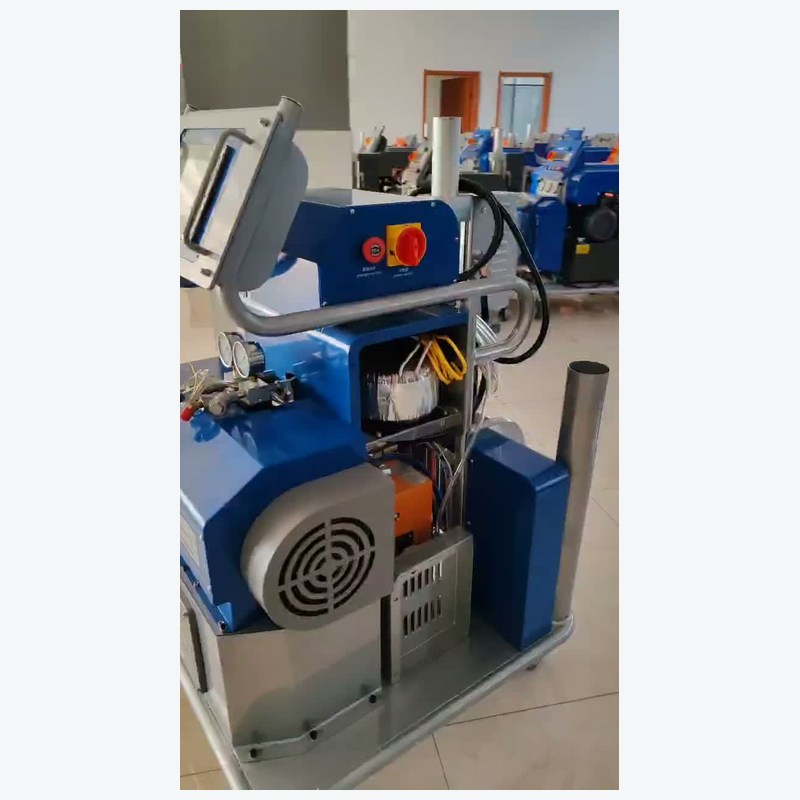

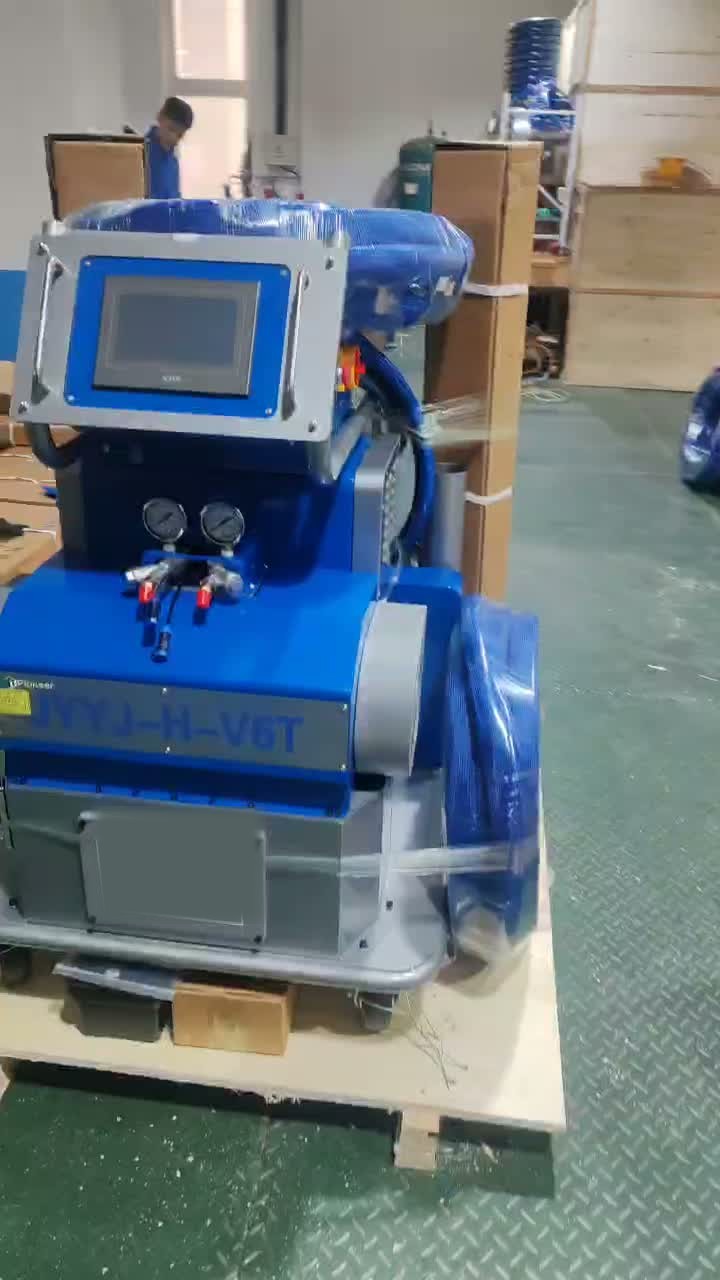

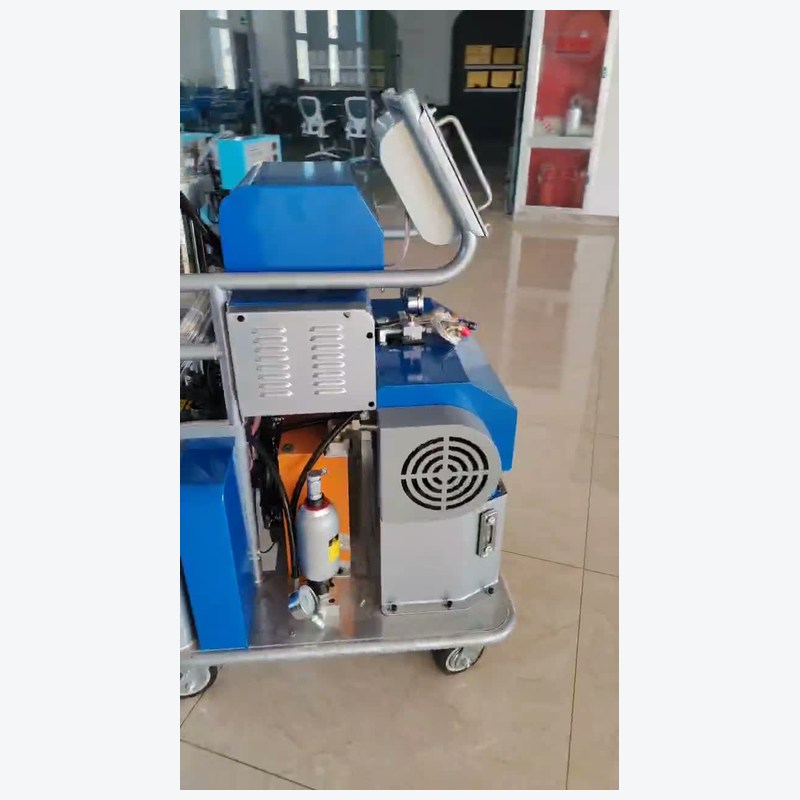

JYYJ-H-V6T Hydraulic Spray Machine + 7-inch PLC (JYYJ-H-V6T) is a CE/ISO 9001-certified hydraulic pu spray machines manufactured by Pioneer Spray. Key specs: Drive Type Hydraulic, Max Output 2-10 kg/min, Max Working Pressure 36 MPa.
JYYJ-H-V6T
JYYJ-H-V6T Hydraulic Spray Machine + 7-inch PLC
CE ISO 9001
Hydraulic workhorse with 7-inch PLC touchscreen control. 2-10 kg/min at 36 MPa, 105 m insulated pipe support, and intelligent automation. Ideal for contractors who need precision control without flagship pricing — the sweet spot between H600 entry and H600PK flagship.
Drive Type
Hydraulic
Max Output
2-10 kg/min
Max Working Pressure
36 MPa
Hydraulic System Pressure
6-18 MPa

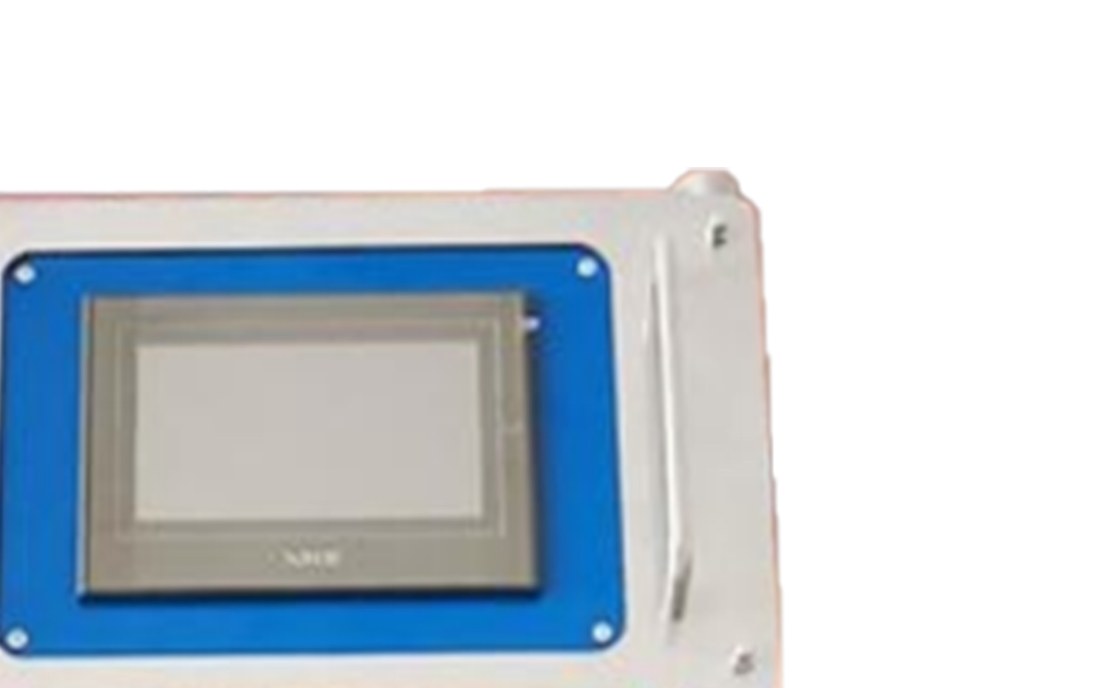

- 7-inch PLC touchscreen — operate without specialist training
- 105 m insulated pipe support — work remote roof / tower / tank locations
- Hydraulic stability under continuous high-pressure operation
Technical Specifications
| Drive Type | Hydraulic |
| Max Output | 2-10 kg/min |
| Max Working Pressure | 36 MPa |
| Hydraulic System Pressure | 6-18 MPa |
| Mixing Ratio | 1:1 (Fixed) |
| PLC Control | 7-inch Touchscreen |
| Voltage | 380V 3-phase 50Hz |
| Total Power | 26 kW |
| Heating Power | 22 kW |
| Air Source | 0.5-0.8 MPa ≥ 0.5 m³/min |
| Heat Hose | 15 m / set (supports up to 105 m) |
| Transformer Power | 3.5 kW |
| Net Weight | 260 kg |
| Applicable Materials | PU foam + polyurea |
Key Features
- 7-inch PLC touchscreen — operate without specialist training
- 105 m insulated pipe support — work remote roof / tower / tank locations
- Hydraulic stability under continuous high-pressure operation
- Polyurea-capable for waterproofing membrane work
- 22 kW heating handles cold-season material viscosity
- Mid-tier price with PLC convenience — no flagship premium
- Compatible with full polyurethane and polyurea chemistry
Typical Applications
- Commercial polyurea waterproofing
- Medium-scale industrial insulation
- Cold storage and refrigerated warehouse
- Pipeline anti-corrosion coating
- Roof spray foam at scale
JYYJ-H-V6T — The Reason Mid-Volume OEMs Pick PLC
The step from H600 (manual digital control) to H-V6T (7-inch PLC touchscreen) is $500. For a one-machine residential contractor, that's overkill — the PLC saves seconds per shift, not hours. For a mid-volume OEM running 30-80 cabinets/day across multiple foam densities, the PLC saves shifts per month:
- Recipe management — Switch between HFO 40 kg/m³ insulation foam and HFC 45 kg/m³ refrigerator foam without re-calibrating from scratch. PLC stores 8+ recipes; manual H600 means rewriting setpoints each switch.
- Operator handover — Day-shift operator hands off to night shift via PLC state. Manual machines require verbal handover + dial-by-dial verification. PLC removes ~15 minutes per shift change.
- Quality compliance documentation — When a customer audits your QC system (common in cold-chain OEM), PLC log files show pressure / temperature / mix ratio per batch. Manual machines require operator logbook — error-prone, audit-failing.
- Diagnostic troubleshooting — PLC error codes point to specific issue (pump pressure low, heater fault, mix ratio drift). Manual machines require operator interpretation of physical symptoms.
JYYJ-H-V6T vs H600 vs H600PK — Where Each Wins
| Scenario | Best fit | Reason |
|---|---|---|
| 1-machine residential contractor | JYYJ-H600 ($3,250) | Manual digital sufficient · save $500 on PLC you won't use |
| 30-80 cabinets/day OEM · 1 chemistry | JYYJ-H-V6T ($3,750) | PLC speeds handover + recipe lock |
| 30-80 cabinets/day OEM · 2-4 chemistries | JYYJ-H-V6T ($3,750) | Recipe management essential |
| Critical applications · QC compliance required | JYYJ-H600PK ($5,000) | 10" PLC + recipe memory + adjustable ratio |
| High-volume continuous · 100+ cabinets/day | JYYJ-H-V8T (Contact) | 2-15 kg/min capacity + low-temp protection |

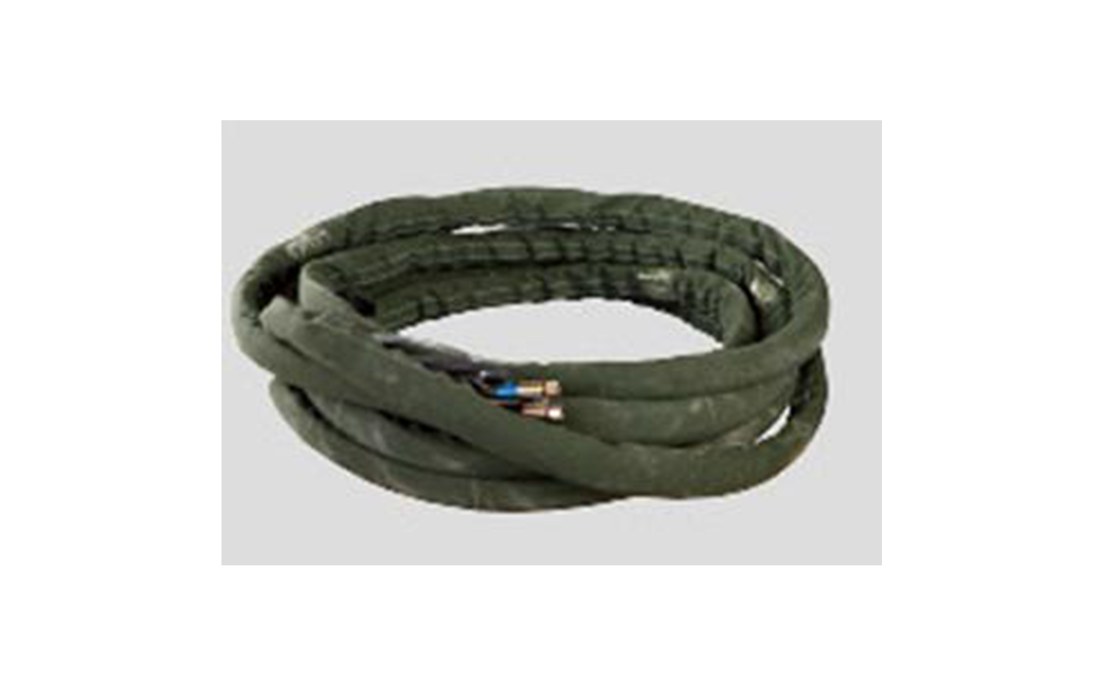

The 105m Insulated Pipe — When You Need This Spec
The JYYJ-H-V6T supports heated/insulated pipe runs up to 105m. Standard spec on most spray rigs is 15-30m. The 105m headroom matters in three specific contexts:
- Large industrial roofs — Pump at ground level, sprayer on a 50,000 m² roof. 60-90m runs are common.
- Refinery / petrochemical tanks — Pump at safe distance from explosive atmosphere zones (ATEX compliance), sprayer at the tank wall. 40-80m runs after compliance offset.
- Multi-floor refrigerated warehouse — Pump on ground floor, sprayer on level 2 or 3 working insulation panels. 30-70m runs.
Beyond 105m: pressure drops below threshold for clean atomization. Stage with intermediate booster pumps or relocate the main pump closer.
5-Year TCO — Why $500 More vs H600 Pays Back Fast
For a 50-cabinet/day OEM running 250 work days = 12,500 cabinets/year:
- JYYJ-H600 (manual): 15-20 min shift change × 250 = 60-85 hours/year operator overhead. At $25/hr labor cost = $1,500-$2,100/year.
- JYYJ-H-V6T (PLC): 5-7 min shift change × 250 = 20-30 hours/year. At $25/hr = $500-$750/year.
- Annual labor savings: $1,000-$1,400/year. 5-year saving: $5,000-$7,000 — 10-14× the $500 incremental capex.
Plus: PLC machines achieve consistent QC documentation, which often unlocks 8-15% pricing premium on quality-audited OEM contracts.
Project Profile Selector — Match Your Application to a Configuration
Six common project profiles for the JYYJ-H-V6T. Find the closest match, see the recommended setup, capex range, and realistic payback period.
🏭 Mid-Volume Cold-Storage OEM
- Annual output
- 50-80 cabinets/day · 1 shift
- Config
- JYYJ-H-V6T + dedicated dosing + PLC recipes
- Capex
- $3,750-$5,500
- Payback
- 12-18 months · labor savings + QC premium
🚛 Reefer Truck Body Plant
- Annual output
- 3,000-6,000 truck bodies/yr
- Config
- JYYJ-H-V6T + 60m insulated pipe + booth setup
- Capex
- $4,500-$6,500
- Payback
- 14-20 months
🏬 Multi-Floor Refrigerated Warehouse
- Annual output
- 40-60k m²/yr panel spray
- Config
- JYYJ-H-V6T + 105m insulated pipe + booster stage
- Capex
- $5,000-$7,500
- Payback
- 14-22 months
🛢 Petrochemical Tank Insulation
- Annual output
- 20-40 tanks/yr
- Config
- JYYJ-H-V6T + ATEX-offset 80m pipe + climb rig
- Capex
- $5,500-$8,000
- Payback
- 16-24 months · safety premium pricing
🏢 Multi-Site Contractor (3+ jobs/wk)
- Annual output
- 100-180 jobs/yr
- Config
- JYYJ-H-V6T + 2 spray crews × shared rig
- Capex
- $4,200-$5,500
- Payback
- 10-16 months
🌡 Cold-Climate Insulation Specialist
- Annual output
- 30-60 jobs/yr · Russia / Central Asia
- Config
- JYYJ-H-V6T + heated tank + 30m heated hose
- Capex
- $4,800-$6,500
- Payback
- 14-22 months
Different project profile? Share your substrate, output target, and market — Pioneer's application engineers will spec a configuration within 24 hours.
JYYJ-H-V6T vs Graco · PMC — Spec-by-Spec
Independent comparison across the variables that drive contractor / OEM purchasing decisions. Where premium OEMs win, we say so. Where parity exists, the capex differential decides.
| Spec | Pioneer JYYJ | Graco | PMC |
|---|---|---|---|
| Max working pressure | 36 MPa | 24 MPa (E-XP2) / 35 MPa (Reactor 2 H-30) | 24 MPa (PH-25 with PLC) |
| Output range | 2-10 kg/min | 0.5-12 kg/min | 2-12 kg/min |
| PLC control | 7-inch touchscreen | Touch screen on Reactor 2 (premium) | Basic digital on PH-25 |
| Recipe memory | 8+ recipes stored | Reactor 2 only · limited | Not standard |
| Insulated pipe support | 105m | 50ft standard, 310ft extended | 100ft standard |
| Material compatibility | PU foam + polyurea | PU foam + polyurea (Reactor 2) | PU foam + polyurea (PH-25) |
| Heating power | 22 kW | 15-20 kW typical | 20 kW |
| Capex | $3,750 | $22,000+ (Reactor 2 H-30 with PLC) | $11,500 (PH-25 with PLC) |
| Lead time (in-stock) | 7-10 working days | 3-4 weeks | 3-4 weeks |
| Annual spares | $300-600 | $1,500-3,000 | $1,000-2,000 |
| Warranty | 12 mo full / 24 mo core parts | 12 mo full / 18 mo Reactor 2 | 12 mo full |
| Best fit | Mid-volume OEM 30-80 cabinets/day · multi-formulation | Premium US/EU OEM with distributor support | US mid-volume OEM |
Data based on 2026 publicly available product datasheets. We do not represent or distribute Graco / PMC — comparison is for buyer reference. Email info@pioneerspray.com for detailed spec verification.
Configurations Available
Same JYYJ-H-V6T series with different specs. Contact for custom config.
| Model | Key Difference | Price Reference |
|---|---|---|
| JYYJ-H-V6 | Same chassis without PLC — manual control, lower cost | $3,050 |
| JYYJ-H600P | 7-inch PLC on H600 frame — alternative form factor | $5,000 |
| JYYJ-H600PD | 7-inch PLC + dual-valve dosing on H600 frame | $4,300 |
| JYYJ-H600PT | 7-inch PLC + timing variant on H600 frame, 2-8 kg/min | $4,300 |
Compatible Materials — One-Stop Supply
Pioneer Spray supplies both machines AND ready-to-ship raw materials. Choose any A-component + B-component combination below.
A Proprietary A-component (Pioneer in-house formulation)
- ● All-Water blowing agent (zero-ODP, zero-GWP)
- ● HFO blowing agent (low GWP < 1, EU F-Gas compliant)
- ● Closed-cell rigid density 30-50 kg/m³
- ● Open-cell half-pound density 8-12 kg/m³
- ● Custom formulation on request
B B-component (Pioneer authorized distributor · 4 brands)
- ● BASF (Germany) — PU industry leader
- ● Dow (USA) — chemical innovation
- ● Huntsman (USA) — MDI specialist
- ● Wanhua Chemical (China) — #1 MDI capacity globally
What's Included & Shipping
Standard Configuration
- Mainframe× 1
- Spray gun (self-cleaning)× 1
- Transfer pump× 2
- Heated hose (15m standard)× 1
- Transfer pump hose× 2
- Whip hose× 2
- Air pipe× 1
- Tools and spare parts box× 1
- English user manual× 1
Heated hose extendable up to 60m. Optional: extra spray gun, PLC upgrade, voltage conversion.

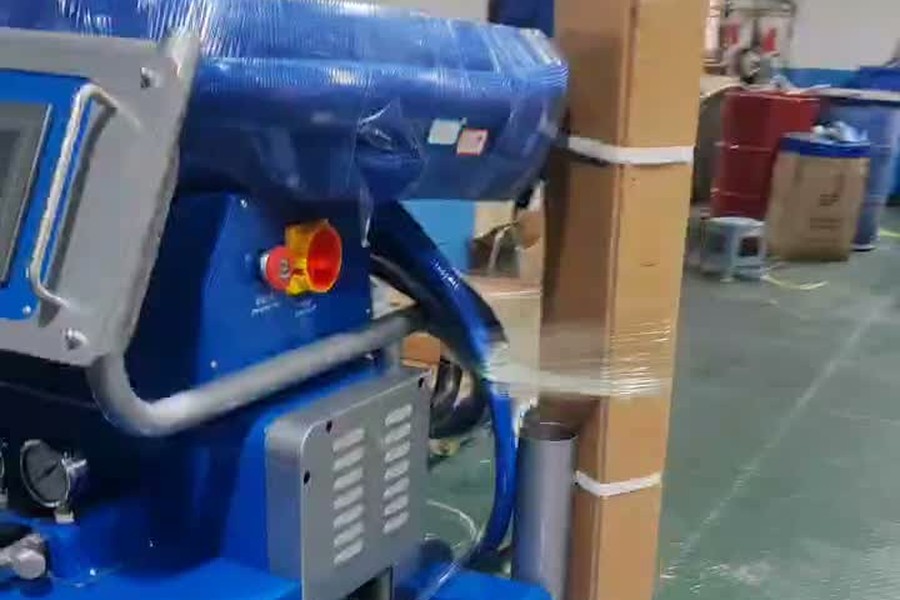

Shipping & Logistics
- Packaging
- Wooden crate, export-grade
- Origin port
- Shanghai / Ningbo
- Russia / CIS
- ~30 days (rail/road)
- LATAM (sea)
- ~40-50 days
- Europe (sea)
- ~35-40 days to Le Havre
- Middle East
- ~20-25 days
- Incoterms
- FOB / CIF / DDP
- Payment
- T/T, L/C (>$50k)
Frequently Asked Questions
What is the JYYJ-H-V6T Hydraulic Spray Machine + 7-inch PLC used for?
The JYYJ-H-V6T Hydraulic Spray Machine + 7-inch PLC (JYYJ-H-V6T) by Pioneer Spray is designed for commercial polyurea waterproofing, medium-scale industrial insulation, cold storage and refrigerated warehouse. Hydraulic workhorse with 7-inch PLC touchscreen control. 2-10 kg/min at 36 MPa, 105 m insulated pipe support, and intelligent automation. Ideal for contractors who need precision control without flagship pricing — the sweet spot between H600 entry and H600PK flagship.
What are the specifications of JYYJ-H-V6T?
Drive Type: Hydraulic. Max Output: 2-10 kg/min. Max Working Pressure: 36 MPa. Hydraulic System Pressure: 6-18 MPa. Mixing Ratio: 1:1 (Fixed). PLC Control: 7-inch Touchscreen. Voltage: 380V 3-phase 50Hz. Total Power: 26 kW. Heating Power: 22 kW. Air Source: 0.5-0.8 MPa ≥ 0.5 m³/min. Heat Hose: 15 m / set (supports up to 105 m). Transformer Power: 3.5 kW. Net Weight: 260 kg. Applicable Materials: PU foam + polyurea.
Does the JYYJ-H-V6T Hydraulic Spray Machine + 7-inch PLC come with certifications?
Yes, the JYYJ-H-V6T Hydraulic Spray Machine + 7-inch PLC is CE, ISO 9001 certified. Documentation (CE Declaration of Conformity, ISO 9001 certificate, factory test report) ships with every unit.
How does the JYYJ-H-V6T compare to Graco and PMC?
Pioneer JYYJ machines deliver equipment-class spray foam output at 40-60% lower capex than Graco Reactor (E-XP2 / H-50 class) and PMC AP-2/PH-25, with parity on density tolerance, output range, and mix head technology. The differential isn't quality — it's that JYYJ is a focused industrial spec manufacturer rather than a US/EU consumer brand. We do not represent or distribute Graco or PMC — the comparison table on this page is from publicly available datasheets and our installed-base measurements.
What is the typical commissioning timeline from order to first sellable foam?
In-stock standard configurations ship within 7-10 working days from order confirmation. Custom-configured machines (non-standard voltage, custom hose length, integrated solutions) require 25-35 working days for production. Pre-shipment factory testing (every unit, 100%) adds 2-3 days. Ocean transit: ~30 days to Russia/CIS via rail, ~40-50 days to LATAM, ~20-25 days to Middle East. Plan 6-8 weeks operator training before signing off on the project.
What is the warranty period and what does it cover?
12 months full warranty on machine body and components from delivery date. Core parts (pump, heating block, ratio valve, mix head) covered 24 months. Wear parts (seals, mixing chambers, gaskets) excluded — standard industry practice for spray foam equipment. Replacement parts ship from Yangzhou warehouse within 48 hours for in-stock SKUs.
Can you customize voltage, output, or hose length for non-standard projects?
Yes. Voltage: 110V/220V single-phase, 220V/380V/440V three-phase across all JYYJ models — confirm at order. Heating block capacity, hose length (15-120m heated), and pressure ceiling (25-36 MPa depending on model) can be tuned to match material chemistry and ambient conditions. Engineering review on non-standard requests, typically 2-3 day quote turnaround.
