The highest-output hydraulic in the JYYJ line without the PLC — 2-15 kg/min at 36 MPa driven by a 32 kW motor, with straightforward button and dial control. Sprays polyurea and polyurethane at flagship output for a lower price than the PLC-controlled V8T. Ideal for high-volume contractors who want maximum throughput without touchscreen automation.
JYYJ-H-V8

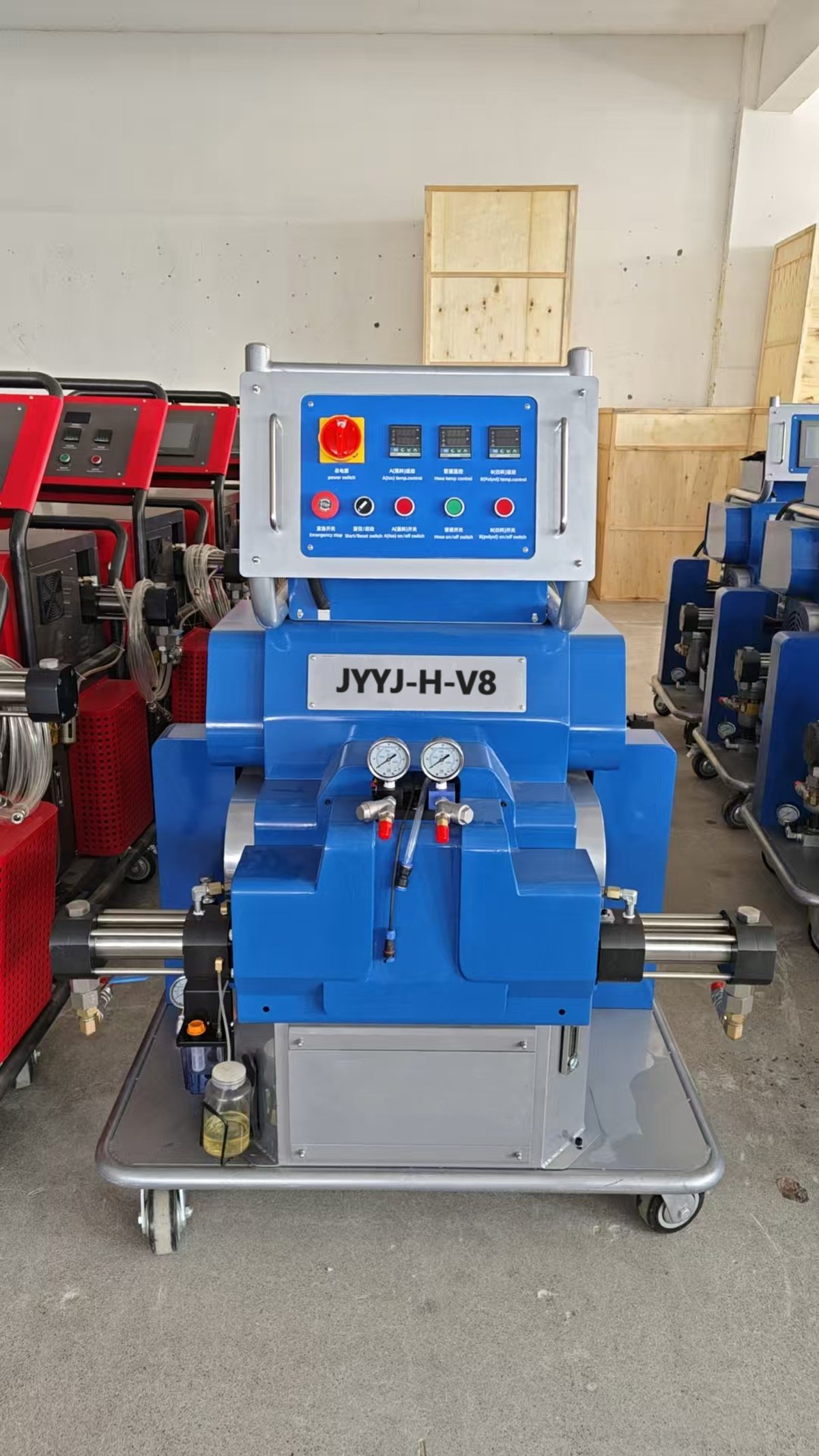

JYYJ-H-V8 High-Output Hydraulic Spray Machine (Button Control)
The highest-output hydraulic in the JYYJ line without the PLC — 2-15 kg/min at 36 MPa driven by a 32 kW motor, with straightforward button and dial control. Sprays polyurea and polyurethane at flagship output for a lower price than the PLC-controlled V8T. Ideal for high-volume contractors who want maximum throughput without touchscreen automation.
- Highest output in the line (2-15 kg/min) without the PLC premium
- 32 kW motor drives a stable 36 MPa for polyurea and high-build coatings
- Simple button and dial control — no touchscreen, easy to train and service
Technical Specifications
| Drive Type | Hydraulic |
| Control | Button + dial (no PLC) |
| Max Output | 2-15 kg/min |
| Max Working Pressure | 36 MPa |
| Mixing Ratio | 1:1 (Fixed) |
| Motor Power | 32 kW |
| Heating Power | 26 kW |
| Voltage | 380V 3-phase 50Hz |
| Heat Hose | 15 m (standard) |
| Net Weight | 341.8 kg |
| Applicable Materials | PU foam + polyurea |
Procurement Information
Price Tier
Flagship
Factory-direct. Exact FOB / CIF quote on request.
Lead Time
In-stock models within 1 week; custom builds on request.
Warranty & Spare Parts
5-year warranty (wear parts excluded). Spare parts air-freighted in 3-5 days.
Standard Package Includes
Main proportioning unit · Fusion-compatible spray gun · two transfer pumps · 15 m heated hose · tool kit · IPPC export wooden case
Voltage
Custom voltage available (e.g. 220V / 380V / 110V). Confirm your local voltage and phase.
Send us your country and local voltage to receive a matched configuration and landed-cost estimate.
Get Price & ShippingJYYJ-H-V8 — Flagship Output, Button Control
The JYYJ-H-V8 delivers the same 2–15 kg/min at 36 MPa as our top flagship, driven by a 32 kW motor — but with straightforward button and dial control instead of a PLC touchscreen. It is the value route to maximum hydraulic throughput for contractors who want the highest output without paying for touchscreen automation. It sprays both polyurethane foam and polyurea.
JYYJ-H-V8 vs the earlier JYYJ-H800
The JYYJ-H-V8 is the current generation of Pioneer's high-output hydraulic machine and replaces the earlier JYYJ-H800. Both run at 36 MPa for high-density closed-cell foam and polyurea, but the H-V8 uses a redesigned drive with a 32 kW motor and 2–15 kg/min output (the H800 delivered up to about 2–14 kg/min). The JYYJ-H800 is no longer in production — units already in the field stay fully supported with spare parts, and new buyers should choose the JYYJ-H-V8.
V8 or V8T — Which High-Output Machine
The V8 and the JYYJ-H-V8T share the same platform and the same class-leading 2–15 kg/min output. The difference is control: the V8T adds a 10-inch PLC touchscreen, recipe memory, one-click start/stop, and low-temperature protection; the V8 keeps it simple with buttons and dials at a lower price. Choose the V8 when a trained crew runs the same job daily and does not need programmable automation.
Who the JYYJ-H-V8 Is For
Built for high-volume contractors running industrial polyurea coating, cold-chain, and large spray-foam projects who want flagship throughput on a tighter budget. For full PLC automation step up to the V8T; for a mid-output hydraulic, see the JYYJ-H600. Browse all options in our 17-model lineup, or talk to our engineers to confirm the right configuration.
Key Features
- Highest output in the line (2-15 kg/min) without the PLC premium
- 32 kW motor drives a stable 36 MPa for polyurea and high-build coatings
- Simple button and dial control — no touchscreen, easy to train and service
- Sprays both polyurethane foam and polyurea
- Hydraulic stability — no seasonal performance drop
- The value route to flagship throughput; step up to the V8T for 10-inch PLC automation
Typical Applications
- High-volume industrial polyurea coating
- Cold-chain and large-building spray foam
- Tank lining and secondary containment
- Contractor fleets needing maximum throughput
- Projects where PLC automation is not required
JYYJ-H-V8 in Action
Representative projects using this machine. Not customer-specific unless noted.
Logistics / Warehousing Operator · 4,200 m²
4,200m² Commercial Roof SPF System · Almaty
Logistics warehouse flat roof retrofit. Seamless spray foam roofing with reflective silicone topcoat. Single application replaced torch-on membrane + insulation, eliminated ponding water.
Industrial Poultry Operation · 12,000 m² (8 poultry houses)
500,000-Bird Poultry House Insulation · Almaty Region
Industrial egg-laying poultry · 12,000m² across 8 houses. Stable 18-22°C internal temperature year-round maintained egg production rate above 92% across summer 40°C and winter -25°C extremes.
Compatible Materials — One-Stop Supply
Pioneer Spray supplies both machines AND ready-to-ship raw materials. Choose any A-component + B-component combination below.
A Proprietary A-component (Pioneer in-house formulation)
- ● All-Water blowing agent (zero-ODP, zero-GWP)
- ● HFO blowing agent (low GWP < 1, EU F-Gas compliant)
- ● Closed-cell rigid density 30-50 kg/m³
- ● Open-cell half-pound density 8-12 kg/m³
- ● Custom formulation on request
B B-component (Pioneer authorized distributor · 4 brands)
- ● BASF (Germany) — PU industry leader
- ● Dow (USA) — chemical innovation
- ● Huntsman (USA) — MDI specialist
- ● Wanhua Chemical (China) — #1 MDI capacity globally
What's Included & Shipping
Standard Configuration
- Mainframe× 1
- Spray gun (self-cleaning)× 1
- Transfer pump× 2
- Heated hose (15m standard)× 1
- Transfer pump hose× 2
- Whip hose× 2
- Air pipe× 1
- Tools and spare parts box× 1
- English user manual× 1
Heated hose extendable up to 60m. Optional: extra spray gun, PLC upgrade, voltage conversion.
Shipping & Logistics
- Packaging
- Wooden crate, export-grade
- Origin port
- Shanghai / Ningbo
- Russia / CIS
- ~30 days (rail/road)
- LATAM (sea)
- ~40-50 days
- Europe (sea)
- ~35-40 days to Le Havre
- Middle East
- ~20-25 days
- Incoterms
- FOB / CIF / DDP
- Payment
- T/T, L/C

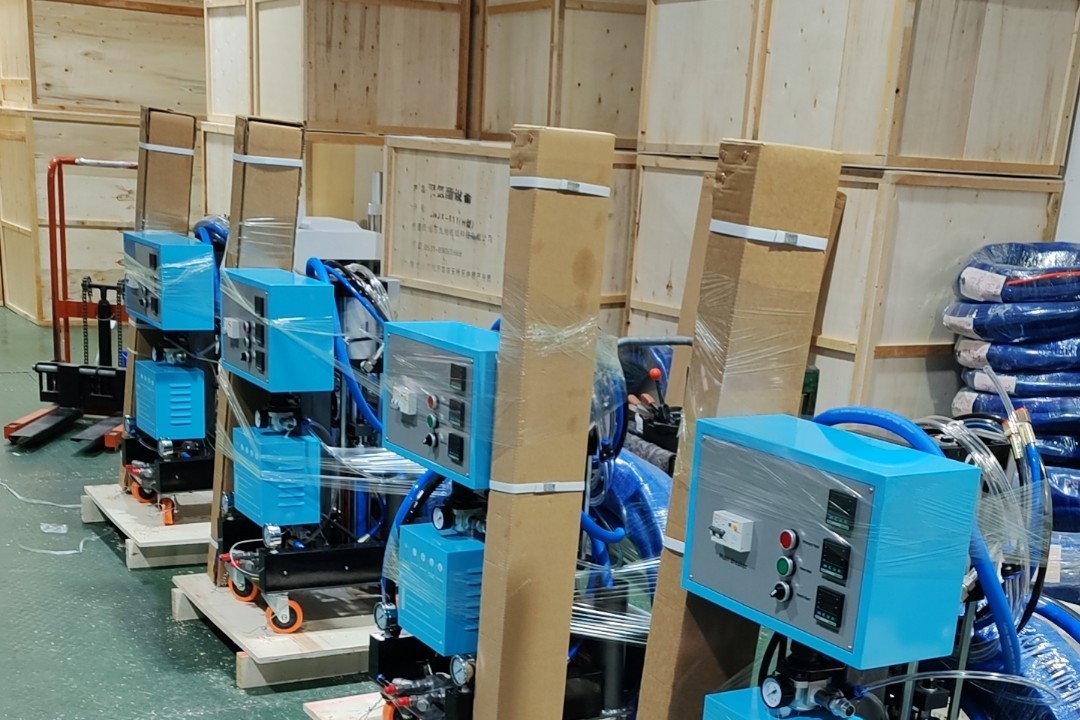

Export-Grade Wooden Crate Packing
Every JYYJ-H-V8 is shrink-wrapped, foam-protected, and secured on a pallet inside a sturdy export-grade wooden crate — guarding the machine and its controls against impact and moisture across long sea, rail, and road journeys.
- ✓ Fumigation-free plywood crate, stacking-safe for containers
- ✓ Controls, gauges and pump shrink-wrapped & cushioned
- ✓ Delivered worldwide under FOB / CIF / DDP terms
Frequently Asked Questions
What replaced the JYYJ-H800?
How much output?
What information do you need for an accurate quotation?
Get a Quote for JYYJ-H-V8
We'll respond within 24 hours with pricing and technical details.
Quote for JYYJ-H-V8 High-Output Hydraulic Spray Machine (Button Control)
Tell us your output target, voltage, and project location. We confirm spec + lead time within 24 hours.
