Copper Mine Transfer Chute Polyurea Wear Lining · Antofagasta
Copper concentrator transfer chutes and hoppers re-lined with 6mm spray polyurea to resist abrasion from coarse ore. Replaced bolt-on AR steel plate, cut changeout downtime, and extended wear-liner life 3x in a high-impact materials-handling circuit.
Customer Type
Copper Mining & Concentrator Operation
Industry
Mining · Materials Handling
Project Scale
14 transfer chutes + 6 hoppers · ~360 m²
Duration
11 days (scheduled shutdown)
The Challenge
A copper concentrator ran bolt-on abrasion-resistant (AR400) steel plate in its ore transfer chutes. Coarse, sharp run-of-mine ore wore plates through in 6-9 months, and each changeout meant confined-space hot work, fastener corrosion, and 1-2 shifts of circuit downtime. The operator needed a seamless, fast-return lining that survived high-impact abrasion without bolt holes as wear-initiation points.
Our Solution
During a scheduled shutdown, chute and hopper interiors were grit-blasted to SP 10 near-white and primed with a polyurea-compatible epoxy tie coat. Applied 6mm hand-sprayed pure polyurea using JYYJ-H-V6 high-pressure unit at 36 MPa with heated hoses for fast gel on vertical and overhead surfaces. Adjustable 1:1~1:2 ratio tuned for the cold Atacama night shift. Seamless monolithic film bridges weld seams and corners where AR plate left gaps.
What Pioneer Delivered
Not just a machine — a matched system, a trained crew on site, and after-sales backing end to end.
- On-site substrate survey with dew-point and steel-temperature monitoring before any spray — so the lining bonds, not blisters.
- A single-source system — JYYJ-H-V6 machine and pure polyurea material matched, tuned and warranted together, not sourced from three suppliers who blame each other.
- A spray crew trained for confined-space chute and hopper geometry and cold night-shift application — the hard part of polyurea is the operator, and we own it.
- Holiday-tested QA and a return-to-service plan built around the mine's scheduled shutdown — the chute went back to ore flow in under 24 hours, not days.
- Ongoing remote support for ratio and temperature tuning, plus re-order of the exact matched material — so the next wear cycle is a phone call, not a new project.
Execution Process
-
1 · Surface Preparation
Grit-blast worn chute and hopper interiors to SP 10 near-white metal, stripping scale and worn ridges. A 75-100 µm angular profile is cut into the steel for a strong mechanical key.
-
2 · Epoxy Tie Coat & Masking
Flanges and bolt lines are masked, then a polyurea-compatible epoxy primer is applied inside the recoat window for chemical adhesion. Dew point and substrate temperature are logged before spraying the cold night shift.
-
3 · Polyurea Spray Application
Hand-spray 6 mm of pure polyurea with the JYYJ-H-V6 at 36 MPa, heated hoses giving a few-second gel for vertical and overhead surfaces. The monolithic film bridges weld seams and corners where bolt-on AR plate previously left gaps.
-
4 · Cure & Return to Service
Tack-free within minutes and fully cured in under 24 hours. The lining is holiday-tested for pinholes and thin spots, then the chute is returned to ore flow — no fastener torque-down, no confined-space hot work.
Key Technical Highlights
Coating System
6 mm pure polyurea
Aromatic spray polyurea, 100% solids, zero VOC at application.
Spray Unit
JYYJ-H-V6 @ 36 MPa
High-pressure heated-hose plural-component rig for fast vertical/overhead gel.
Mix Ratio
1:1 ~ 1:2 adjustable
Tuned on-site for the cold Atacama night shift to hold gel and build.
Surface Prep
SP 10 + epoxy tie coat
Near-white blast with 75-100 µm profile, primed for chemical bond.
Wear Performance
3x liner life
Seamless, no bolt holes as wear-initiation points vs AR400 plate.
Return to Service
< 24 hours
Tack-free in minutes; full cure and holiday test within one day.
Project Gallery

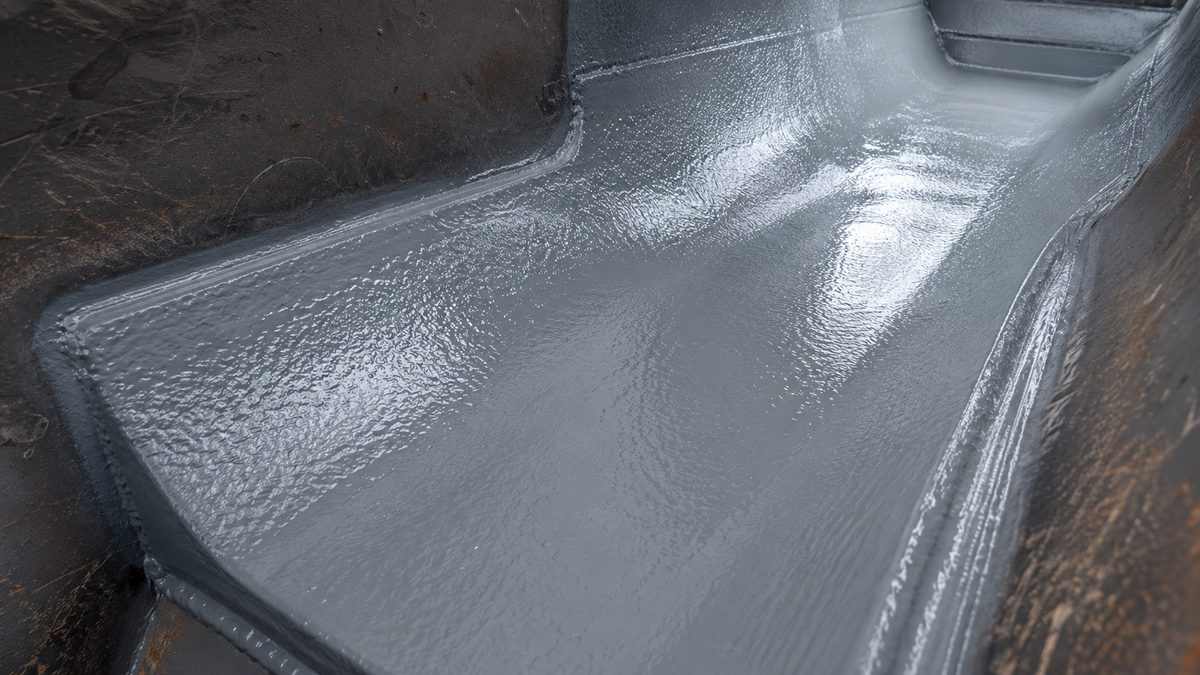

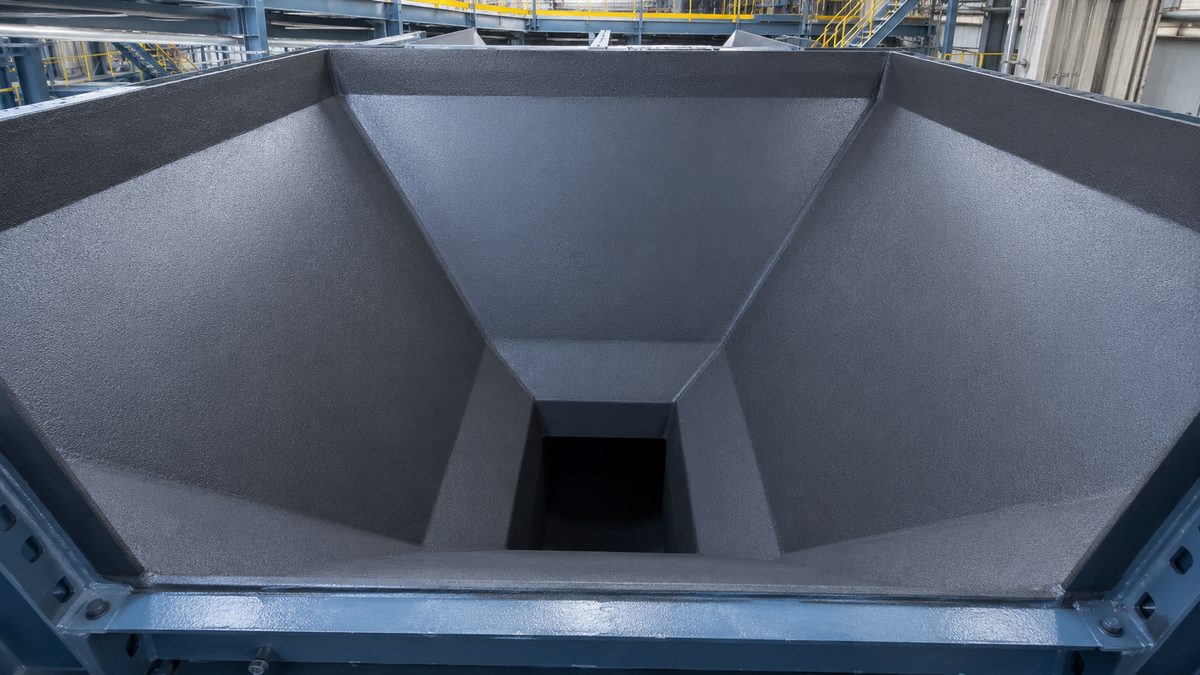

On-site application and finished surfaces from this project.
Reference Design Targets
Design and specification targets for this application — not measured results from a specific customer project.
3x
Wear-liner service life
vs bolt-on AR400 plate
-60%
Changeout downtime
spray re-line vs plate replacement
6mm seamless
Lining application
no bolt holes / no seam gaps
<24 h
Return to service
after final coat cure
Why This Model Is Commonly Selected
The JYYJ-H-V6 is a 36 MPa hydraulic machine commonly selected for pure and hybrid polyurea coatings. High pressure and stable proportioning support fast-curing polyurea for seamless waterproofing and lining membranes.
Frequently Asked Questions
Why hydraulic for polyurea?
Does polyurea need special hose/temperature?
Recommended Configuration
- Main proportioning unit
- Fusion-compatible spray gun
- Two transfer pumps
- 15 m heated hose (7 m on D casting models)
- Tool kit
- IPPC export wooden case
Spray Foam Material Estimator
Estimate polyurethane foam material for your project. Enter area, thickness, density and waste allowance.
Estimated values only. Actual consumption varies with substrate condition, operator technique, overspray and material performance. Assumes ~1:1 A/B and ~8 kg/min output.
Planning a similar project?
Share your output, voltage, and project scale. Pioneer recommends a matched JYYJ machine + material combination within 24 hours.
Reference Configuration: This page shows a reference machine configuration for a typical application, based on Pioneer's equipment specifications — not verified performance data from a specific customer project. Figures are design targets or typical values, not measured results. Verified delivery records (real machine + destination country + shipment photos) and documented customer projects are available on request.
