80-Truck Pickup Bed Liner Polyurea Coating · Monterrey
Commercial agricultural fleet of 80 pickup trucks coated with 4mm polyurea bed liners. Eliminated cargo damage from impact, fertilizer chemicals, salt corrosion. Per-truck application <2 hours, 5+ year service life.
Customer Type
Commercial Agricultural Fleet Operator
Industry
Commercial Vehicle Fleet · Agricultural
Project Scale
80 vehicles · ~480 m² total bed area
Duration
22 days
The Challenge
Pickup truck commercial fleet hauling chemical fertilizers + agricultural cargo experienced ~$2,800 average damage per vehicle from impact corrosion + cargo abrasion within 2 years. Aftermarket bed liners cost $400-600 each plus 1-2 days downtime per truck. Customer needed permanent solution surviving 5+ year fleet life cycle.
Our Solution
Mobile spray rig deployed at fleet yard. Surface prep via abrasive blast to SP 6 + zinc-rich primer for steel substrate. Applied 4mm pure polyurea using JYYJ-H-V6 at 36 MPa with adjustable 1:1~1:2 ratio for cold-morning application tuning. Per-truck cycle: 1.5h prep + 3 minutes spray + 2h cure to road service.
What Pioneer Delivered
Not just a machine — a matched system, a trained crew on site, and after-sales backing end to end.
- A mobile spray rig brought to the fleet yard with an on-site survey of bed condition and corrosion before any spray — so coating happened on the customer's site, not on ours.
- A single-source system — JYYJ-H-V6 machine and pure polyurea material matched, tuned and warranted together, not a sprayer and a material bought from three suppliers who blame each other.
- A spray crew trained to coat bed geometry evenly at 4 mm and tune the ratio for cold-morning gel — the hard part of polyurea is the operator, and we own that skill.
- Thickness and pinhole QA plus a double-shift schedule of about 4 trucks a day built around the fleet's operating window — vehicles rejoined routes the same day, not days later.
- Ongoing remote support for ratio and temperature tuning, plus easy re-order of the exact matched material — coating the next batch of trucks is a phone call, not a new project.
Execution Process
-
1 · Surface Prep & Priming
Each truck bed is masked off, abrasive-blasted to SP 6 commercial finish to strip paint and corrosion, then coated with a zinc-rich primer for the steel substrate. Rails, seams and tailgate edges are detailed so the coating wraps high-wear corners.
-
2 · Mobile Rig Setup
A mobile spray rig is deployed at the fleet yard with the JYYJ-H-V6 brought to 36 MPa and its adjustable 1:1~1:2 ratio tuned for cold-morning application. Heated hoses and a test panel confirm gel time before the first bed is coated.
-
3 · Polyurea Spray 4 mm

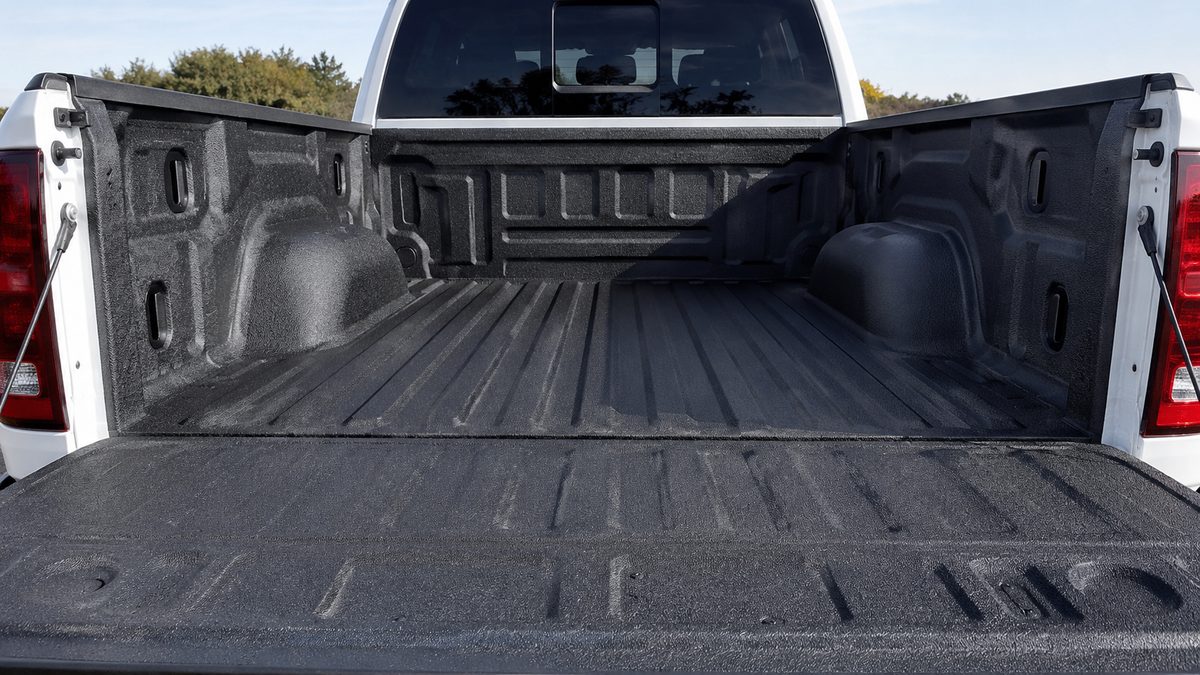

Hand-spray 4 mm of pure polyurea across floor, walls and tailgate in roughly 3 minutes per bed, the few-second gel building a seamless monolithic liner with no bolt holes or seams to corrode. A second pass detail-coats the highest-impact zones.
-
4 · Cure & Return to Road
Polyurea is tack-free in minutes and cures to full road service in about 2 hours, giving a per-truck cycle near 2 hours including prep. Each liner is checked for thickness and pinholes before the truck rejoins the working fleet.
Key Technical Highlights
Coating System
4 mm pure polyurea
Seamless impact- and chemical-resistant bed liner, no bolt holes.
Spray Unit
JYYJ-H-V6 @ 36 MPa
Hydraulic plural-component rig with adjustable mix ratio for cold mornings.
Mix Ratio
1:1 ~ 1:2 adjustable
Tuned on-site for cold-morning gel and consistent film build.
Surface Prep
SP 6 + zinc-rich primer
Commercial blast and zinc primer for lasting bond to truck steel.
Per-Truck Cycle
~2 hours
1.5 h prep, 3 min spray, 2 h cure — ~4 trucks/day double-shift.
Service Life
5+ years
Survives impact, fertilizer chemicals and salt vs 1-2 yr aftermarket.
Project Gallery
On-site application and finished surfaces from this project.
Reference Design Targets
Design and specification targets for this application — not measured results from a specific customer project.
~2 hours
Per-truck application time
prep + spray + cure to road
~4 trucks/day
Daily fleet throughput
double-shift crew
-78%
Damage repair cost
vs uncoated baseline (3-year basis)
5+ years
Service life
before first repair · vs 1-2 years aftermarket
