500,000-Bird Poultry House Insulation · Almaty Region
Industrial egg-laying poultry · 12,000m² across 8 houses. Stable 18-22°C internal temperature year-round maintained egg production rate above 92% across summer 40°C and winter -25°C extremes.
Customer Type
Industrial Poultry Operation
Industry
Livestock · Poultry
Project Scale
12,000 m² (8 poultry houses)
Duration
22 days
The Challenge
Egg-laying poultry operation faced ±15°C internal temperature swings between summer (40°C ambient) and winter (-25°C ambient), causing egg production drop from 95% to 78% in extreme months. HVAC was largest non-feed expense.
Our Solution
JYYJ-H800 hydraulic spray at 36 MPa with 2-14 kg/min throughput completed 1 poultry house every 3 days, allowing rolling production schedule. Applied 60mm closed-cell PU foam at 36 kg/m³ on roof + walls. Pioneer All-Water A-component with low-odor profile permitted continued operations.
What Pioneer Delivered
Not just a machine — a matched system, a trained crew on site, and after-sales backing end to end.
- An on-site survey of all 8 houses mapping bird density, ventilation openings and steel condition before any spray — so foam thickness and penetration detailing were planned, not improvised.
- A single-source system — JYYJ-H800 machine and matched All-Water foam chemistry tuned and warranted together, not a sprayer, a foam and a chemical bought from three suppliers who blame each other.
- A spray crew trained to hold consistent 60 mm thickness and clean self-flashing around vents — the hard part of spray foam is the operator, and we own that skill.
- QA on density and thickness plus a rolling, one-house-every-three-days schedule built around the customer's production window — birds kept laying in 7 houses while the 8th was sprayed.
- Ongoing remote support for climate-control tuning and easy re-order of the exact matched foam system — extending or repairing the envelope is a phone call, not a new project.
Execution Process
-
1 · Substrate Prep & Site Survey
Clean and degrease the roof and wall steel of each poultry house, removing dust, droppings residue and loose scale. Bird density and ventilation-fan openings are mapped so foam thickness and penetration detailing are planned house by house.
-
2 · Machine Setup & Foam Calibration
Bring the JYYJ-H800 hydraulic unit up to 36 MPa and preheat A and B components, then shoot test panels to verify 36 kg/m³ closed-cell density and a low-odor cure profile. Pioneer All-Water A-component is selected so adjacent houses can keep birds in production.
-
3 · Spray Application 60 mm
Apply 60 mm of seamless closed-cell PU foam to roof and walls with the JYYJ-H800 at 36 MPa and 2-14 kg/min, self-flashing around vents and structural ribs to kill thermal bridges. A 3-person crew completes one full poultry house every three days on a rolling schedule.
-
4 · Cure & Return to Production
Closed-cell foam is tack-free within minutes and fully cured the same day, with the low-odor chemistry letting birds repopulate quickly. Thickness and adhesion are spot-checked before the crew rolls to the next house in the rotation.
Key Technical Highlights
Insulation System
60 mm closed-cell PU
Seamless closed-cell foam roof and wall envelope, no thermal bridges.
Spray Unit
JYYJ-H800 @ 36 MPa
Hydraulic plural-component rig (2-14 kg/min). This earlier-generation JYYJ-H800 has since been succeeded by the JYYJ-H-V8.
Foam Density
36 kg/m³
Rigid closed-cell grade tuned for steel poultry-house envelopes.
A-Component
Pioneer All-Water
Low-odor, low-VOC chemistry so adjacent houses stay in production.
Coverage Rate
~545 m²/day
3-person crew finishing one full poultry house every three days.
Thermal Result
18-22°C year-round
Stable internal climate holding egg-laying above 92% across seasons.

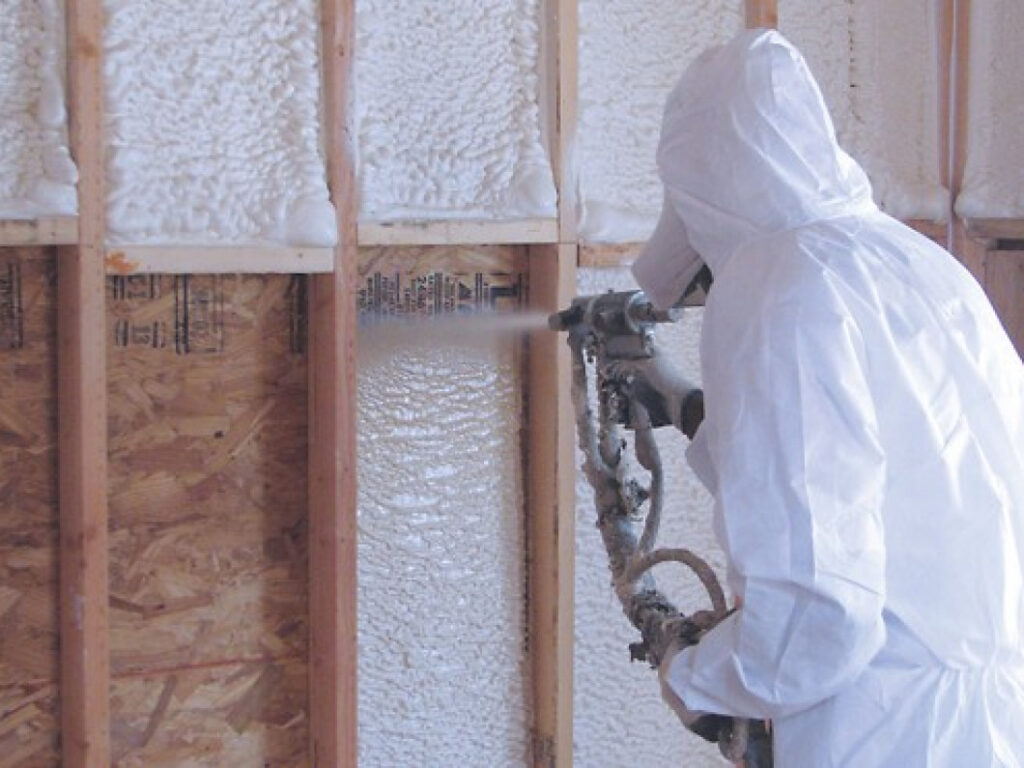

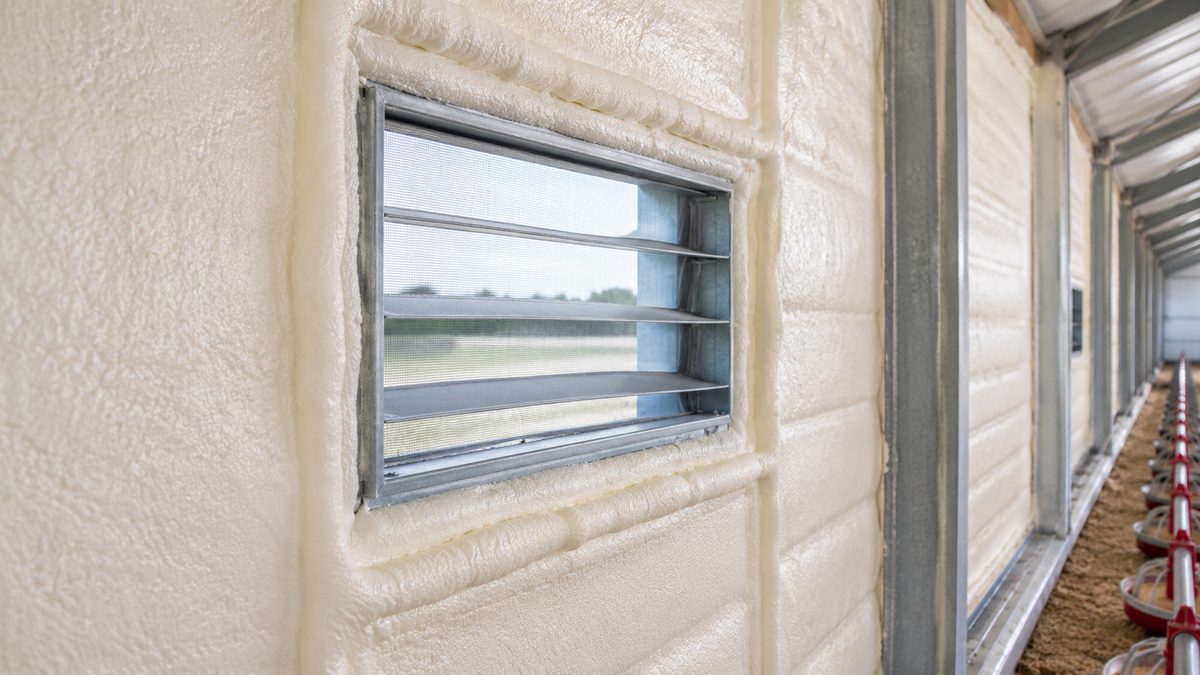

Project Gallery
On-site application and finished surfaces from this project.
Reference Design Targets
Design and specification targets for this application — not measured results from a specific customer project.
18-22°C
Internal temperature stability
year-round (vs ±15°C swing)
92%+
Egg production rate
maintained across seasons
-28%
HVAC energy cost
vs uninsulated baseline
~545 m²/day
Coverage rate
3-person crew · 22-day total
Why This Model Is Commonly Selected
The JYYJ-H-V8 is the high-output flagship (32 kW motor, up to 2–15 kg/min at 36 MPa), commonly selected for large commercial roofing and industrial projects needing maximum continuous throughput. It replaces the earlier JYYJ-H800; field H800 units remain supported.
Frequently Asked Questions
What replaced the JYYJ-H800?
How much output?
Recommended Configuration
- Main proportioning unit
- Fusion-compatible spray gun
- Two transfer pumps
- 15 m heated hose (7 m on D casting models)
- Tool kit
- IPPC export wooden case
Spray Foam Material Estimator
Estimate polyurethane foam material for your project. Enter area, thickness, density and waste allowance.
Estimated values only. Actual consumption varies with substrate condition, operator technique, overspray and material performance. Assumes ~1:1 A/B and ~8 kg/min output.
Planning a similar project?
Share your output, voltage, and project scale. Pioneer recommends a matched JYYJ machine + material combination within 24 hours.
Reference Configuration: This page shows a reference machine configuration for a typical application, based on Pioneer's equipment specifications — not verified performance data from a specific customer project. Figures are design targets or typical values, not measured results. Verified delivery records (real machine + destination country + shipment photos) and documented customer projects are available on request.
