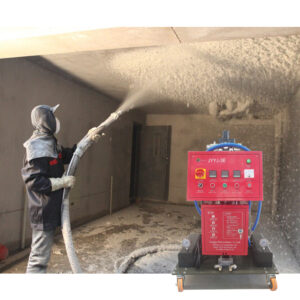

JYYJ-H600 Hydraulic Driven Polyurea Roof Foam Making Machine

JYYJ-H600 hydraulic polyurea spraying equipment is an innovative hydraulic high-pressure spraying system. Unlike traditional vertical pull-type pressurization, this equipment features a horizontal, dual-way pressurization system.

Features:

Equipped with an air cooling system to lower oil temperature, providing motor and pump protection while conserving oil.
The hydraulic station works in tandem with a booster pump, ensuring stable pressure for both A and B materials.
The main frame is constructed from welded seamless steel tubing with a protective plastic spray, enhancing corrosion resistance and pressure-bearing capabilities.
An emergency switch system is in place for swift responses to unexpected situations.
A reliable and powerful 220V heating system enables rapid warming of raw materials for optimal performance in cold conditions.
User-friendly equipment operation panel for easy mastery.
The feeding pump utilizes a high-ratio method, making it suitable for feeding high-viscosity materials, even in winter.
The latest spraying gun offers advantages like compact size, lightweight construction, and a low failure rate, ensuring efficient performance.

Specification

Raw material	polyurea polyurethane
Features	1.can be used both for spraying and casting with higher production efficiency 2.Hydraulic driven is more stable 3. both polyurethane and polyurea can be used
POWER SOURCE	3-phase 4-wires 380V 50HZ
HEATING POWER (KW)	22
AIR SOURCE (min)	0.5~0.8Mpa≥0.5m3
OUTPUT(kg/min)	2~12
MAXIMUM OUTPUT (Mpa)	24
Matrial A:B=	1;1
spray gun:(set)	1
Feeding pump:	2
Barrel connector:	2 sets heating
Heating pipe:(m)	15-120
Spray gun connector:(m)	2
Accessories box:	1
Instruction book	1
weight:(kg)	340
packaging:	wooden box
package size(mm)	85010001400
Digital counting system	√
Hydraulic driven	√
